SPEC® CINT2006 Result

SGI

SGI Altix UV 1000 (Intel Xeon X7560, 2.26 GHz)

SPECint®_rate2006 = Not Run

SPECint_rate_base2006 = 20600

CPU2006 license:	4	Test date:	Jun-2010
Test sponsor:	SGI	Hardware Availability:	Jun-2010
Tested by:	SGI	Software Availability:	Jun-2010

Hardware
CPU Name:	Intel Xeon X7560
CPU Characteristics:	Intel Turbo Boost Technology up to 2.67 GHz
CPU MHz:	2266
FPU:	Integrated
CPU(s) enabled:	1024 cores, 128 chips, 8 cores/chip, 2 threads/core
CPU(s) orderable:	2-256 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	256 KB I+D on chip per core
L3 Cache:	24 MB I+D on chip per chip
Other Cache:	None
Memory:	5 TB (768 x 4GB + 256 x 8GB dual-rank DDR3-1066 CL7 RDIMMs)
Disk Subsystem:	4 TB tmpfs
Other Hardware:	None

Software
Operating System:	SUSE Linux Enterprise Server 11 (x86_64) SP1, Kernel 2.6.32.12-0.7.1.1381.0.PTF-default
Compiler:	Intel C++ Professional Compiler for IA32 and Intel 64, Version 11.1 Build 20091130 Package ID: l_cproc_p_11.1.064
Auto Parallel:	No
File System:	tmpfs
System State:	Multi-user, run level 3
Base Pointers:	32-bit
Peak Pointers:	32/64-bit
Other Software:	Microquill SmartHeap V8.1 Binutils 2.18.50.0.7.20080502

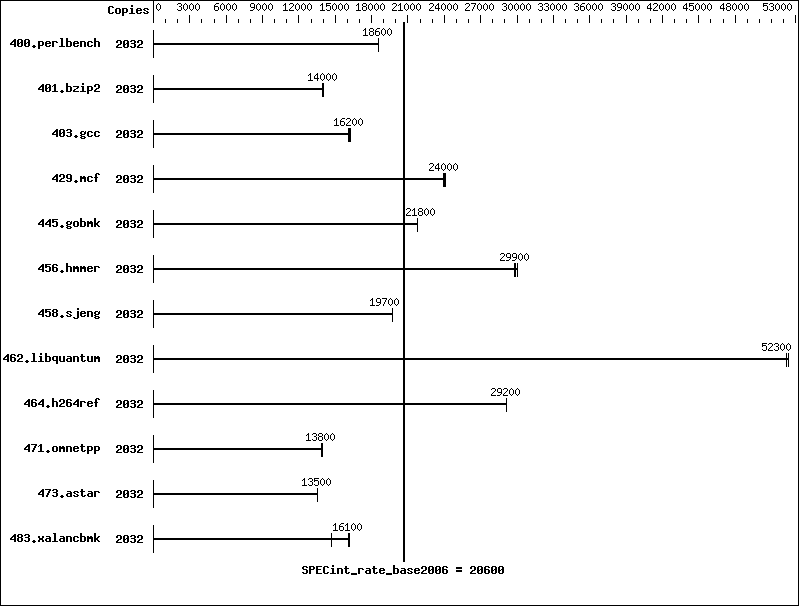

Results Table

Benchmark	Base							Peak
Benchmark	Copies	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Copies	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench	2032	1067	18600	1069	18600	1068	18600
401.bzip2	2032	1400	14000	1400	14000	1403	14000
403.gcc	2032	1008	16200	1015	16100	1010	16200
429.mcf	2032	769	24100	774	23900	773	24000
445.gobmk	2032	978	21800	978	21800	977	21800
456.hmmer	2032	635	29900	630	30100	636	29800
458.sjeng	2032	1249	19700	1249	19700	1249	19700
462.libquantum	2032	804	52400	806	52200	806	52300
464.h264ref	2032	1542	29200	1542	29200	1542	29200
471.omnetpp	2032	917	13800	909	14000	919	13800
473.astar	2032	1057	13500	1054	13500	1056	13500
483.xalancbmk	2032	865	16200	952	14700	872	16100

Submit Notes

The config file option 'submit' was used.
 numactl was used to bind copies to the cores

Operating System Notes

 Tmpfs filesystem set up with:
   mkdir -p /mnt/shm
   mount -t tmpfs -o size=4096g,rw,mpol=interleave tmpfs /mnt/shm/
   The mpol=interleave option sets the NUMA memory allocation
   policy for all files to allocate from each node in turn.

General Notes

 Memory configuration:
   The 4 GB DIMMs are attached to chips 0-95;
   the 8 GB DIMMs are attached to chips 96-127.

Base Compiler Invocation

C benchmarks:

icc -m32

C++ benchmarks:

icpc -m32

Base Portability Flags

400.perlbench:	-DSPEC_CPU_LINUX_IA32
462.libquantum:	-DSPEC_CPU_LINUX
483.xalancbmk:	-DSPEC_CPU_LINUX

Base Optimization Flags

C benchmarks:

-xSSE4.2 -ipo -O3 -no-prec-div -static -opt-prefetch

C++ benchmarks:

-xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.1.ic11.1/libic11.1-32bit -lsmartheap

Base Other Flags

C benchmarks:

403.gcc:

-Dalloca=_alloca

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic11.1-linux64-revE.20100316.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Intel-ic11.1-linux64-revE.20100316.xml.
