| CPU2006 license: | 55 | Test date: | Jun-2010 |
|---|---|---|---|
| Test sponsor: | Dell Inc. | Hardware Availability: | Mar-2010 |
| Tested by: | Dell Inc. | Software Availability: | Dec-2009 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E7540 |
| CPU Characteristics: | Intel Turbo Boost Technology up to 2.27 GHz |
| CPU MHz: | 2000 |
| FPU: | Integrated |
| CPU(s) enabled: | 24 cores, 4 chips, 6 cores/chip, 2 threads/core |
| CPU(s) orderable: | 2,4 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 18 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 256 GB (64 x 4 GB DDR3-1066 QR RDIMM, CL7, ECC) |
| Disk Subsystem: | 1 x 300 GB 10000 RPM SAS 6Gb |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SUSE Linux Enterprise Server 11 (x86_64), kernel-2.6.27.19-5-default |
| Compiler: | Intel C++ Professional Compiler for IA32 and Intel 64, Version 11.1 Build 20091130 Package ID: l_cproc_p_11.1.064 |
| Auto Parallel: | Yes |
| File System: | ext3 |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 64-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V8.1 |

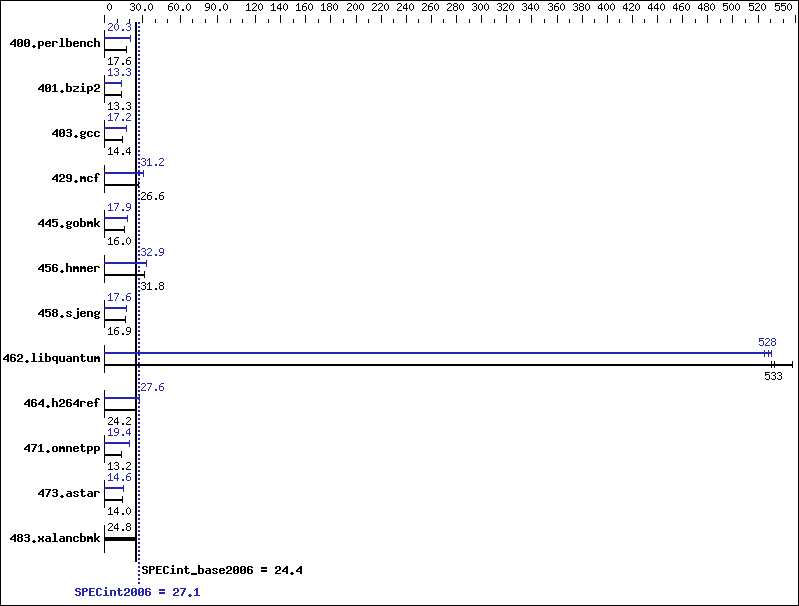

Results Table
| Benchmark | Base | Peak | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
| 400.perlbench | 556 | 17.6 | 557 | 17.6 | 555 | 17.6 | 481 | 20.3 | 480 | 20.4 | 481 | 20.3 |
| 401.bzip2 | 725 | 13.3 | 725 | 13.3 | 725 | 13.3 | 723 | 13.3 | 723 | 13.3 | 722 | 13.4 |
| 403.gcc | 560 | 14.4 | 559 | 14.4 | 560 | 14.4 | 467 | 17.2 | 467 | 17.2 | 466 | 17.3 |
| 429.mcf | 343 | 26.6 | 340 | 26.8 | 344 | 26.5 | 293 | 31.2 | 294 | 31.0 | 293 | 31.2 |
| 445.gobmk | 655 | 16.0 | 653 | 16.1 | 655 | 16.0 | 585 | 17.9 | 585 | 17.9 | 588 | 17.8 |
| 456.hmmer | 293 | 31.9 | 293 | 31.8 | 293 | 31.8 | 283 | 32.9 | 284 | 32.9 | 284 | 32.9 |
| 458.sjeng | 723 | 16.7 | 716 | 16.9 | 716 | 16.9 | 688 | 17.6 | 710 | 17.0 | 688 | 17.6 |
| 462.libquantum | 37.8 | 547 | 39.0 | 531 | 38.8 | 533 | 39.4 | 525 | 39.0 | 531 | 39.2 | 528 |
| 464.h264ref | 917 | 24.1 | 914 | 24.2 | 914 | 24.2 | 803 | 27.6 | 802 | 27.6 | 802 | 27.6 |
| 471.omnetpp | 478 | 13.1 | 473 | 13.2 | 471 | 13.3 | 322 | 19.4 | 322 | 19.4 | 320 | 19.5 |
| 473.astar | 502 | 14.0 | 504 | 13.9 | 501 | 14.0 | 481 | 14.6 | 482 | 14.6 | 481 | 14.6 |
| 483.xalancbmk | 279 | 24.8 | 277 | 24.9 | 278 | 24.8 | 279 | 24.8 | 277 | 24.9 | 278 | 24.8 |
Operating System Notes
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run
Platform Notes
BIOS Settings: Power Management = Maximum Performance (Default = Active Power Controller)
General Notes
Binaries were compiled on SLES 10 with Binutils 2.18.50.0.7.20080502 The Dell PowerEdge R910 and the Bull NovaScale R480 F2 models are electronically equivalent. The results have been measured on a Dell PowerEdge R910 model.
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 403.gcc: | -DSPEC_CPU_LP64 |
| 429.mcf: | -DSPEC_CPU_LP64 |
| 445.gobmk: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
| 464.h264ref: | -DSPEC_CPU_LP64 |
| 471.omnetpp: | -DSPEC_CPU_LP64 |
| 473.astar: | -DSPEC_CPU_LP64 |
| 483.xalancbmk: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -static -parallel -opt-prefetch |
C++ benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.1.ic11.1/libic11.1-64bit -lsmartheap64 |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc -m64 | |
| 400.perlbench: | icc -m32 |
| 429.mcf: | icc -m32 |
| 445.gobmk: | icc -m32 |
| 464.h264ref: | icc -m32 |
C++ benchmarks (except as noted below):
| icpc -m64 | |
| 471.omnetpp: | icpc -m32 |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 403.gcc: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
| 473.astar: | -DSPEC_CPU_LP64 |
| 483.xalancbmk: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
C++ benchmarks:
| 471.omnetpp: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.1.ic11.1/libic11.1-32bit -lsmartheap |
| 473.astar: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=routine -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.1.ic11.1/libic11.1-64bit -lsmartheap64 |
| 483.xalancbmk: | basepeak = yes |
