| CPU2006 license: | 97 | Test date: | May-2010 |
|---|---|---|---|
| Test sponsor: | Acer Incorporated | Hardware Availability: | Jul-2010 |
| Tested by: | Acer Incorporated | Software Availability: | Jan-2010 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon L5609 |
| CPU Characteristics: | |
| CPU MHz: | 1866 |
| FPU: | Integrated |
| CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 12 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 48 GB (12 x 4 GB DDR3-1333 RDIMM, ECC, CL9, memory runs at 1066 MHz) |
| Disk Subsystem: | 1 x 146 GB SAS, 15000 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SUSE Linux Enterprise Server 11 (x86_64) Kernel 2.6.27.19-5-default |
| Compiler: | Intel C++ Professional Compiler for IA32 and Intel 64, Version 11.1 Build 20091130 Package ID: l_cproc_p_11.1.064 |
| Auto Parallel: | Yes |
| File System: | ReiserFS |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 64-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V8.1 |

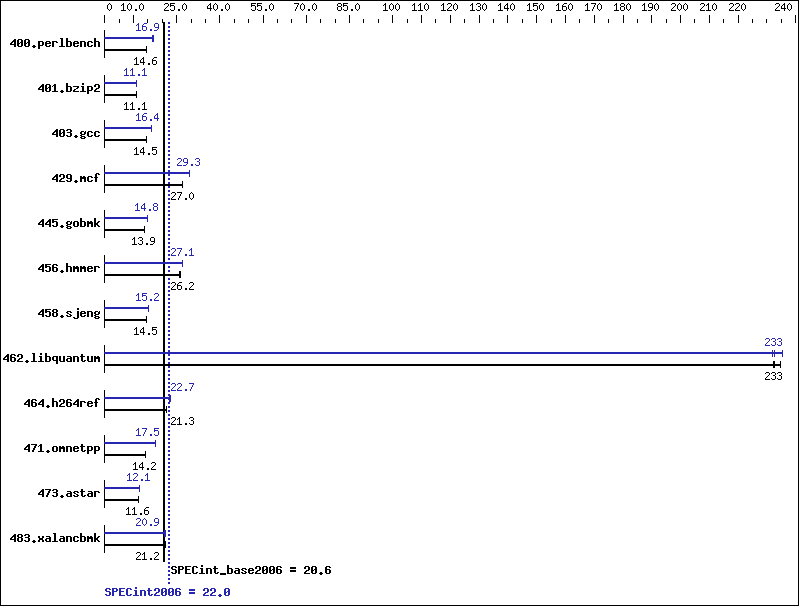

Results Table
| Benchmark | Base | Peak | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
| 400.perlbench | 671 | 14.6 | 668 | 14.6 | 672 | 14.5 | 577 | 16.9 | 585 | 16.7 | 577 | 16.9 |
| 401.bzip2 | 872 | 11.1 | 874 | 11.0 | 872 | 11.1 | 871 | 11.1 | 875 | 11.0 | 871 | 11.1 |
| 403.gcc | 556 | 14.5 | 556 | 14.5 | 556 | 14.5 | 492 | 16.4 | 493 | 16.3 | 492 | 16.4 |
| 429.mcf | 338 | 27.0 | 338 | 27.0 | 339 | 26.9 | 311 | 29.4 | 311 | 29.3 | 311 | 29.3 |
| 445.gobmk | 754 | 13.9 | 753 | 13.9 | 754 | 13.9 | 709 | 14.8 | 709 | 14.8 | 709 | 14.8 |
| 456.hmmer | 357 | 26.2 | 357 | 26.1 | 354 | 26.3 | 344 | 27.1 | 344 | 27.1 | 344 | 27.1 |
| 458.sjeng | 835 | 14.5 | 833 | 14.5 | 834 | 14.5 | 796 | 15.2 | 796 | 15.2 | 797 | 15.2 |
| 462.libquantum | 89.2 | 232 | 89.0 | 233 | 88.2 | 235 | 89.3 | 232 | 89.0 | 233 | 88.0 | 235 |
| 464.h264ref | 1040 | 21.3 | 1038 | 21.3 | 1037 | 21.3 | 972 | 22.8 | 974 | 22.7 | 981 | 22.6 |
| 471.omnetpp | 439 | 14.2 | 439 | 14.2 | 439 | 14.2 | 356 | 17.5 | 355 | 17.6 | 356 | 17.5 |
| 473.astar | 607 | 11.6 | 607 | 11.6 | 606 | 11.6 | 581 | 12.1 | 584 | 12.0 | 582 | 12.1 |
| 483.xalancbmk | 326 | 21.2 | 327 | 21.1 | 326 | 21.2 | 331 | 20.9 | 330 | 20.9 | 329 | 21.0 |
Operating System Notes
'ulimit -s unlimited' was used to set the stack size to unlimited prior to run OMP_NUM_THREADS set to number of cores KMP_AFFINITY set to granularity=fine,scatter
Platform Notes
Fan speed set to full Speed (ie. Enterprise Blade mode) with Smart Blade Console through CMM (Chassis Management Module)
General Notes
Binaries were compiled on SLES 10 with Binutils 2.18.50.0.7.20080502 The Acer AB460 F1, and Gateway GB460 F1 are electronically equivalent. This result was measured on Gateway GB460 F1.
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 403.gcc: | -DSPEC_CPU_LP64 |
| 429.mcf: | -DSPEC_CPU_LP64 |
| 445.gobmk: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
| 464.h264ref: | -DSPEC_CPU_LP64 |
| 471.omnetpp: | -DSPEC_CPU_LP64 |
| 473.astar: | -DSPEC_CPU_LP64 |
| 483.xalancbmk: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -static -parallel -opt-prefetch |
C++ benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.1.ic11.1/libic11.1-64bit -lsmartheap64 |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc -m64 | |
| 400.perlbench: | icc -m32 |
| 429.mcf: | icc -m32 |
| 445.gobmk: | icc -m32 |
| 464.h264ref: | icc -m32 |
C++ benchmarks (except as noted below):
| icpc -m32 | |
| 473.astar: | icpc -m64 |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 403.gcc: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
| 473.astar: | -DSPEC_CPU_LP64 |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
C++ benchmarks:
| 471.omnetpp: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.1.ic11.1/libic11.1-32bit -lsmartheap |
| 473.astar: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=routine -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.1.ic11.1/libic11.1-64bit -lsmartheap64 |
| 483.xalancbmk: | -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.1.ic11.1/libic11.1-32bit -lsmartheap |
