SPEC® CINT2006 Result

IBM Corporation

IBM System x3550 M3 (Intel Xeon E5540)

Hardware
CPU Name:	Intel Xeon E5540
CPU Characteristics:	Intel Turbo Boost Technology up to 2.80 GHz
CPU MHz:	2533
FPU:	Integrated
CPU(s) enabled:	8 cores, 2 chips, 4 cores/chip, 2 threads/core
CPU(s) orderable:	1,2 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	256 KB I+D on chip per core
L3 Cache:	8 MB I+D on chip per chip
Other Cache:	None
Memory:	48 GB (12 x 4 GB PC3-10600R CL9, 2 Rank)
Disk Subsystem:	1 x 73 GB SAS, 15000 RPM
Other Hardware:	None

Software
Operating System:	SuSe Linux Enterprise Server 11 (x86_64), Kernel 2.6.27.19-5-default
Compiler:	Intel C++ Professional Compiler for IA32 and Intel 64, Version 11.1 Build 20091130 Package ID: l_cproc_p_11.1.064
Auto Parallel:	No
File System:	ext3
System State:	Run level 3 (multi-user)
Base Pointers:	32-bit
Peak Pointers:	32/64-bit
Other Software:	Microquill SmartHeap V8.1

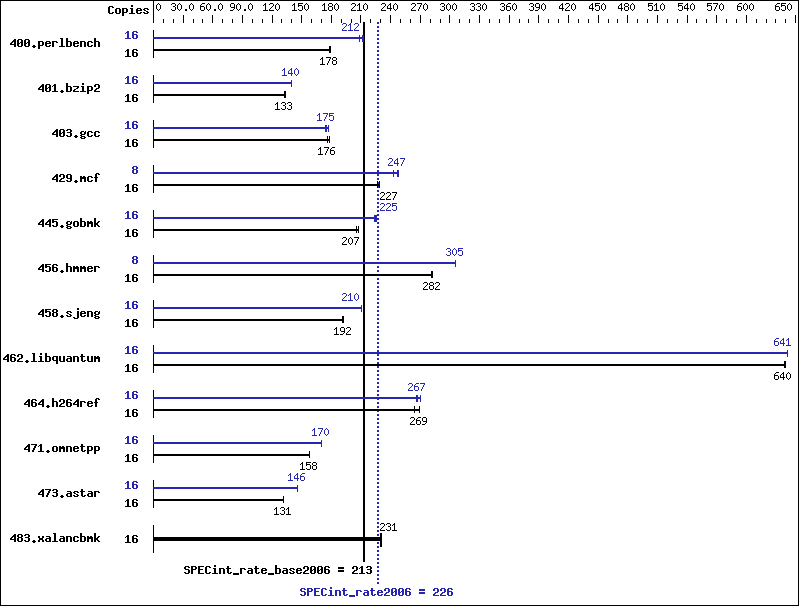

Results Table

Benchmark	Base							Peak
Benchmark	Copies	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Copies	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench	16	874	179	879	178	877	178	16	738	212	735	213	749	209
401.bzip2	16	1163	133	1158	133	1161	133	16	1102	140	1103	140	1102	140
403.gcc	16	721	179	732	176	730	176	16	742	174	727	177	735	175
429.mcf	16	644	227	645	226	639	228	8	294	248	301	243	295	247
445.gobmk	16	816	206	811	207	810	207	16	750	224	744	226	747	225
456.hmmer	16	529	282	530	282	528	282	8	244	306	244	305	245	305
458.sjeng	16	1010	192	1006	192	1008	192	16	920	210	918	211	921	210
462.libquantum	16	519	639	518	640	518	640	16	517	641	517	641	517	642
464.h264ref	16	1316	269	1342	264	1315	269	16	1324	267	1333	266	1310	270
471.omnetpp	16	634	158	634	158	635	158	16	589	170	588	170	589	170
473.astar	16	854	132	855	131	856	131	16	770	146	770	146	770	146
483.xalancbmk	16	478	231	480	230	479	231	16	478	231	480	230	479	231

The config file option 'submit' was used.
 numactl was used to bind copies to the cores

 Turbo Mode Enable
 Turbo Boost set to Traditional
 CPU C State Enable

 Binaries were compiled on SLES 10 with Binutils 2.18.50.0.7.20080502
 'ulimit -s unlimited' was used to set the stack size to unlimited prior to run

icc -m32

icpc -m32

-xSSE4.2 -ipo -O3 -no-prec-div -static -opt-prefetch

403.gcc:

	icpc -m32
473.astar:	icpc -m64

400.perlbench:	-xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -ansi-alias
401.bzip2:	-xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -opt-prefetch -ansi-alias -auto-ilp32
403.gcc:	-xSSE4.2 -ipo -O3 -no-prec-div -static
429.mcf:	-xSSE4.2 -ipo -O3 -no-prec-div -static -opt-prefetch
445.gobmk:	-xSSE4.2(pass 2) -prof-gen(pass 1) -prof-use(pass 2) -O2 -ipo -no-prec-div -ansi-alias
456.hmmer:	-xSSE4.2 -ipo -O3 -no-prec-div -static -unroll2 -ansi-alias -auto-ilp32
458.sjeng:	-xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll4 -auto-ilp32
462.libquantum:	-xSSE4.2 -ipo -O3 -no-prec-div -static -auto-ilp32 -opt-prefetch
464.h264ref:	-xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll2 -ansi-alias

471.omnetpp:	-xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.1.ic11.1/libic11.1-32bit -lsmartheap
473.astar:	-xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=routine -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.1.ic11.1/libic11.1-64bit -lsmartheap64
483.xalancbmk:	basepeak = yes

403.gcc:

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Intel-ic11.1-linux64-revE.20100601.xml.
