| CPU2006 license: | 001176 | Test date: | May-2010 |
|---|---|---|---|
| Test sponsor: | Supermicro | Hardware Availability: | Mar-2010 |
| Tested by: | Supermicro | Software Availability: | Jan-2010 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon X5677 |
| CPU Characteristics: | Intel Turbo Boost Technology up to 3.73 GHz |
| CPU MHz: | 3466 |
| FPU: | Integrated |
| CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip, 2 threads/core |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 12 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 48 GB (12 x 4 GB DDR3-1333 RDIMM, ECC, CL9) |
| Disk Subsystem: | 1 x 1000 GB SATA II, 7200 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SUSE Linux Enterprise Server 11 (x86_64) Kernel 2.6.27.19-5-default |
| Compiler: | Intel C++ Professional Compiler for IA32 and Intel 64, Version 11.1 Build 20091130 Package ID: l_cproc_p_11.1.064 |
| Auto Parallel: | Yes |
| File System: | ReiserFS |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 64-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V8.1 |

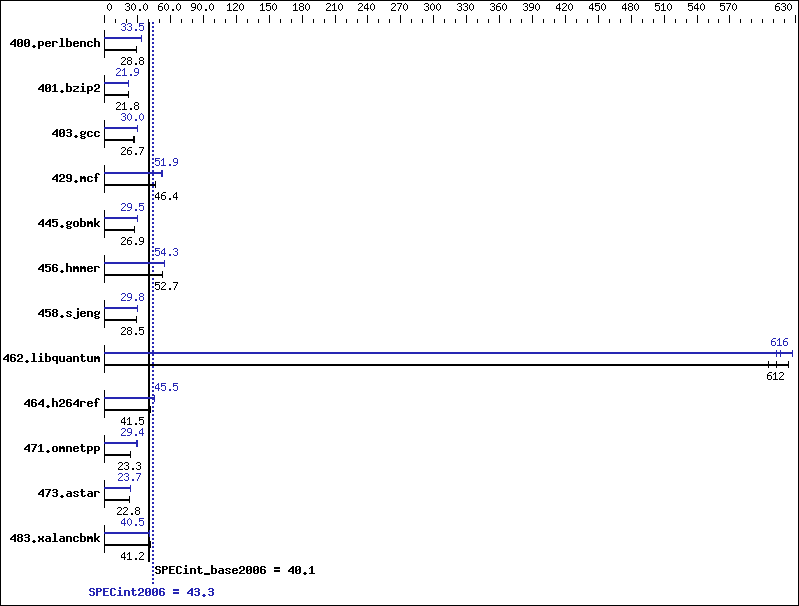

Results Table
| Benchmark | Base | Peak | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
| 400.perlbench | 339 | 28.8 | 339 | 28.8 | 339 | 28.9 | 291 | 33.5 | 292 | 33.5 | 291 | 33.6 |
| 401.bzip2 | 442 | 21.8 | 442 | 21.8 | 442 | 21.8 | 442 | 21.9 | 441 | 21.9 | 442 | 21.9 |
| 403.gcc | 302 | 26.7 | 302 | 26.7 | 301 | 26.7 | 269 | 30.0 | 269 | 30.0 | 268 | 30.0 |
| 429.mcf | 197 | 46.4 | 197 | 46.4 | 197 | 46.4 | 173 | 52.6 | 176 | 51.9 | 177 | 51.5 |
| 445.gobmk | 390 | 26.9 | 389 | 26.9 | 390 | 26.9 | 356 | 29.5 | 356 | 29.5 | 356 | 29.5 |
| 456.hmmer | 177 | 52.7 | 177 | 52.7 | 178 | 52.6 | 172 | 54.3 | 172 | 54.3 | 172 | 54.3 |
| 458.sjeng | 424 | 28.5 | 424 | 28.5 | 423 | 28.6 | 407 | 29.8 | 406 | 29.8 | 406 | 29.8 |
| 462.libquantum | 33.8 | 612 | 33.2 | 623 | 34.2 | 605 | 33.6 | 616 | 33.0 | 627 | 33.8 | 612 |
| 464.h264ref | 533 | 41.5 | 531 | 41.7 | 534 | 41.5 | 492 | 45.0 | 487 | 45.5 | 486 | 45.5 |
| 471.omnetpp | 269 | 23.2 | 269 | 23.3 | 268 | 23.3 | 212 | 29.4 | 213 | 29.4 | 212 | 29.4 |
| 473.astar | 308 | 22.8 | 309 | 22.8 | 308 | 22.8 | 296 | 23.7 | 297 | 23.6 | 296 | 23.7 |
| 483.xalancbmk | 168 | 41.2 | 167 | 41.4 | 169 | 40.9 | 171 | 40.4 | 170 | 40.5 | 170 | 40.5 |
Operating System Notes
'ulimit -s unlimited' was used to set the stack size to unlimited prior to run OMP_NUM_THREADS set to number of cores KMP_AFFINITY set to granularity=fine,scatter
Platform Notes
Fan speed set to Full Speed in BIOS Setup. As tested, the system used a Supermicro PWS-865-PQ power supply, 2 SNK-P0037 heatsinks, as well as 2 FAN-0074L4 and 3 FAN-0077L4 cooling fans.
General Notes
Binaries were compiled on SLES 10 with Binutils 2.18.50.0.7.20080502
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 403.gcc: | -DSPEC_CPU_LP64 |
| 429.mcf: | -DSPEC_CPU_LP64 |
| 445.gobmk: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
| 464.h264ref: | -DSPEC_CPU_LP64 |
| 471.omnetpp: | -DSPEC_CPU_LP64 |
| 473.astar: | -DSPEC_CPU_LP64 |
| 483.xalancbmk: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -static -parallel -opt-prefetch |
C++ benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.1.ic11.1/libic11.1-64bit -lsmartheap64 |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc -m64 | |
| 400.perlbench: | icc -m32 |
| 429.mcf: | icc -m32 |
| 445.gobmk: | icc -m32 |
| 464.h264ref: | icc -m32 |
C++ benchmarks (except as noted below):
| icpc -m32 | |
| 473.astar: | icpc -m64 |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 403.gcc: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
| 473.astar: | -DSPEC_CPU_LP64 |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
C++ benchmarks:
| 471.omnetpp: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.1.ic11.1/libic11.1-32bit -lsmartheap |
| 473.astar: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=routine -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.1.ic11.1/libic11.1-64bit -lsmartheap64 |
| 483.xalancbmk: | -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.1.ic11.1/libic11.1-32bit -lsmartheap |
