| CPU2006 license: | 19 | Test date: | Apr-2010 |
|---|---|---|---|
| Test sponsor: | Fujitsu | Hardware Availability: | Mar-2010 |
| Tested by: | Fujitsu | Software Availability: | Jan-2010 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E5507 |
| CPU Characteristics: | |
| CPU MHz: | 2267 |
| FPU: | Integrated |
| CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 4 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 48 GB (12x4 GB PC3-10600R, 2 rank, CL9-9-9, ECC, see add'l detail in notes) |
| Disk Subsystem: | 1 x SSD SATA, 64 GB |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SUSE Linux Enterprise Server 11 (x86_64), Kernel 2.6.27.19-5-default |
| Compiler: | Intel C++ Professional Compiler for IA32 and Intel 64, Version 11.1 Build 20091130 Package ID: l_cproc_p_11.1.064 |
| Auto Parallel: | No |
| File System: | ext3 |
| System State: | Multi-User Run Level 3 |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V8.1 Binutils 2.18.50.0.7.20080502 |

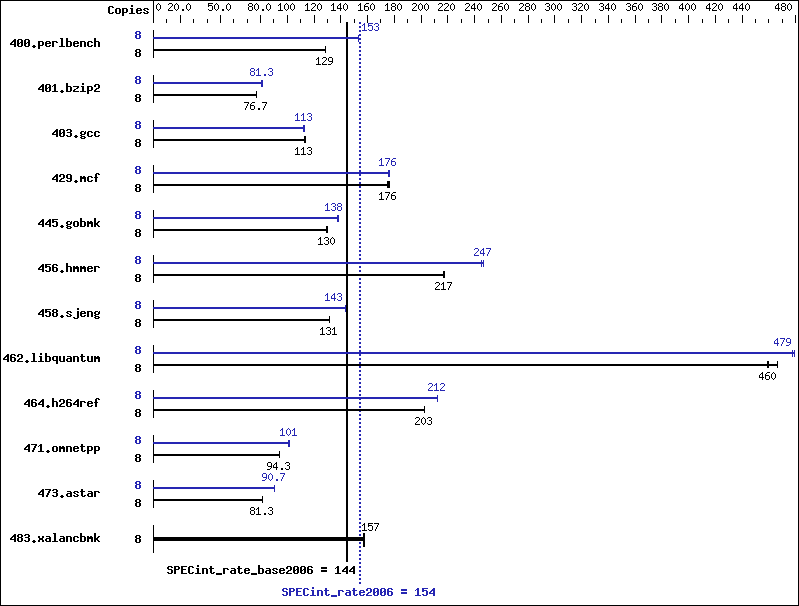

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 8 | 606 | 129 | 608 | 129 | 607 | 129 | 8 | 510 | 153 | 510 | 153 | 510 | 153 |
| 401.bzip2 | 8 | 1005 | 76.8 | 1007 | 76.6 | 1006 | 76.7 | 8 | 949 | 81.3 | 954 | 80.9 | 949 | 81.4 |
| 403.gcc | 8 | 572 | 113 | 572 | 113 | 568 | 113 | 8 | 569 | 113 | 571 | 113 | 574 | 112 |
| 429.mcf | 8 | 416 | 175 | 414 | 176 | 415 | 176 | 8 | 416 | 176 | 414 | 176 | 416 | 176 |
| 445.gobmk | 8 | 649 | 129 | 647 | 130 | 646 | 130 | 8 | 608 | 138 | 608 | 138 | 609 | 138 |
| 456.hmmer | 8 | 343 | 218 | 344 | 217 | 343 | 217 | 8 | 302 | 247 | 305 | 245 | 303 | 247 |
| 458.sjeng | 8 | 737 | 131 | 737 | 131 | 737 | 131 | 8 | 675 | 143 | 674 | 144 | 675 | 143 |
| 462.libquantum | 8 | 361 | 459 | 361 | 460 | 355 | 466 | 8 | 346 | 479 | 347 | 478 | 346 | 479 |
| 464.h264ref | 8 | 874 | 202 | 873 | 203 | 873 | 203 | 8 | 834 | 212 | 835 | 212 | 833 | 212 |
| 471.omnetpp | 8 | 530 | 94.3 | 530 | 94.3 | 531 | 94.2 | 8 | 493 | 101 | 494 | 101 | 493 | 101 |
| 473.astar | 8 | 691 | 81.3 | 690 | 81.4 | 691 | 81.3 | 8 | 619 | 90.7 | 620 | 90.5 | 619 | 90.7 |
| 483.xalancbmk | 8 | 350 | 158 | 351 | 157 | 351 | 157 | 8 | 350 | 158 | 351 | 157 | 351 | 157 |
Submit Notes
The config file option 'submit' was used. numactl was used to bind copies to the cores
Operating System Notes
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run
Platform Notes
The system automatically configures the memory to run at 800 MHz.
General Notes
For information about Fujitsu please visit: http://www.fujitsu.com
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -static -opt-prefetch |
C++ benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.1.ic11.1/libic11.1-32bit -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc -m32 | |
| 401.bzip2: | icc -m64 |
| 456.hmmer: | icc -m64 |
| 458.sjeng: | icc -m64 |
| 462.libquantum: | icc -m64 |
C++ benchmarks (except as noted below):
| icpc -m32 | |
| 473.astar: | icpc -m64 |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
| 473.astar: | -DSPEC_CPU_LP64 |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -ansi-alias |
| 401.bzip2: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -opt-prefetch -ansi-alias -auto-ilp32 |
| 403.gcc: | -xSSE4.2 -ipo -O3 -no-prec-div -static |
| 429.mcf: | -xSSE4.2 -ipo -O3 -no-prec-div -static -opt-prefetch |
| 445.gobmk: | -xSSE4.2(pass 2) -prof-gen(pass 1) -prof-use(pass 2) -O2 -ipo -no-prec-div -ansi-alias |
| 456.hmmer: | -xSSE4.2 -ipo -O3 -no-prec-div -static -unroll2 -ansi-alias -auto-ilp32 |
| 458.sjeng: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll4 -auto-ilp32 |
| 462.libquantum: | -xSSE4.2 -ipo -O3 -no-prec-div -static -auto-ilp32 -opt-prefetch |
| 464.h264ref: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll2 -ansi-alias |
C++ benchmarks:
| 471.omnetpp: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.1.ic11.1/libic11.1-32bit -lsmartheap |
| 473.astar: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=routine -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.1.ic11.1/libic11.1-64bit -lsmartheap64 |
| 483.xalancbmk: | basepeak = yes |
