| CPU2006 license: | 11 | Test date: | Apr-2010 |
|---|---|---|---|
| Test sponsor: | IBM Corporation | Hardware Availability: | Mar-2010 |
| Tested by: | IBM Corporation | Software Availability: | Jan-2010 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E7530 |
| CPU Characteristics: | Intel Turbo Boost Technology up to 2.13 GHz |
| CPU MHz: | 1867 |
| FPU: | Integrated |
| CPU(s) enabled: | 24 cores, 4 chips, 6 cores/chip, 2 threads/core |
| CPU(s) orderable: | 2,4 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 12 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 256 GB (64 x 4 GB PC3-8500R, Quad Rank) |
| Disk Subsystem: | 3 x 50 GB SATA, SSD |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SuSE Linux Enterprise Server 11 (x86_64), Kernel 2.6.27.19-5-default |
| Compiler: | Intel C++ Professional Compiler for IA32 and Intel 64, Version 11.1 Build 20091130 Package ID: l_cproc_p_11.1.064 |
| Auto Parallel: | No |
| File System: | ext3 |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V8.1 Binutils 2.18.50.0.7.20080502 |

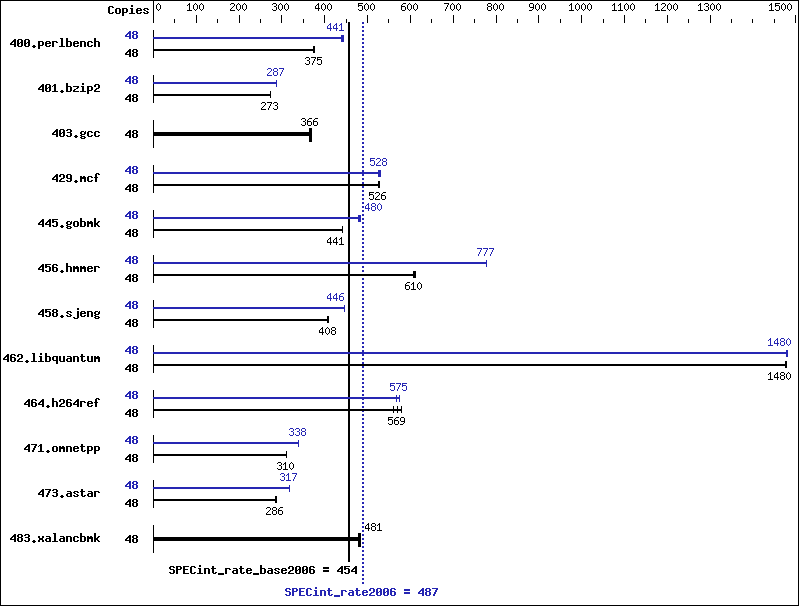

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 48 | 1247 | 376 | 1250 | 375 | 1258 | 373 | 48 | 1054 | 445 | 1062 | 441 | 1068 | 439 |
| 401.bzip2 | 48 | 1695 | 273 | 1700 | 272 | 1693 | 274 | 48 | 1612 | 287 | 1615 | 287 | 1614 | 287 |
| 403.gcc | 48 | 1061 | 364 | 1055 | 366 | 1048 | 369 | 48 | 1061 | 364 | 1055 | 366 | 1048 | 369 |
| 429.mcf | 48 | 830 | 527 | 834 | 525 | 832 | 526 | 48 | 829 | 528 | 827 | 530 | 835 | 524 |
| 445.gobmk | 48 | 1139 | 442 | 1143 | 441 | 1143 | 441 | 48 | 1050 | 480 | 1042 | 483 | 1049 | 480 |
| 456.hmmer | 48 | 735 | 610 | 736 | 608 | 732 | 612 | 48 | 576 | 777 | 576 | 777 | 576 | 778 |
| 458.sjeng | 48 | 1431 | 406 | 1422 | 408 | 1423 | 408 | 48 | 1302 | 446 | 1304 | 446 | 1300 | 447 |
| 462.libquantum | 48 | 674 | 1480 | 674 | 1470 | 673 | 1480 | 48 | 672 | 1480 | 671 | 1480 | 672 | 1480 |
| 464.h264ref | 48 | 1866 | 569 | 1894 | 561 | 1830 | 580 | 48 | 1868 | 569 | 1846 | 576 | 1846 | 575 |
| 471.omnetpp | 48 | 969 | 310 | 968 | 310 | 968 | 310 | 48 | 887 | 338 | 886 | 339 | 887 | 338 |
| 473.astar | 48 | 1180 | 286 | 1181 | 285 | 1177 | 286 | 48 | 1062 | 317 | 1063 | 317 | 1061 | 318 |
| 483.xalancbmk | 48 | 691 | 480 | 689 | 481 | 685 | 484 | 48 | 691 | 480 | 689 | 481 | 685 | 484 |
Submit Notes
The config file option 'submit' was used. numactl was used to bind copies to the cores
Platform Notes
Turbo Boost set to Traditional Demand Scrub disabled
General Notes
'ulimit -s unlimited' was used to set the stack size to unlimited prior to run
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -static -opt-prefetch |
C++ benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.1.ic11.1/libic11.1-32bit -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc -m32 | |
| 401.bzip2: | icc -m64 |
| 456.hmmer: | icc -m64 |
| 458.sjeng: | icc -m64 |
| 462.libquantum: | icc -m64 |
C++ benchmarks (except as noted below):
| icpc -m32 | |
| 473.astar: | icpc -m64 |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
| 473.astar: | -DSPEC_CPU_LP64 |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -ansi-alias |
| 401.bzip2: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -opt-prefetch -ansi-alias -auto-ilp32 |
| 403.gcc: | basepeak = yes |
| 429.mcf: | -xSSE4.2 -ipo -O3 -no-prec-div -static -opt-prefetch |
| 445.gobmk: | -xSSE4.2(pass 2) -prof-gen(pass 1) -prof-use(pass 2) -O2 -ipo -no-prec-div -ansi-alias |
| 456.hmmer: | -xSSE4.2 -ipo -O3 -no-prec-div -static -unroll2 -ansi-alias -auto-ilp32 |
| 458.sjeng: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll4 -auto-ilp32 |
| 462.libquantum: | -xSSE4.2 -ipo -O3 -no-prec-div -static -auto-ilp32 -opt-prefetch |
| 464.h264ref: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll2 -ansi-alias |
C++ benchmarks:
| 471.omnetpp: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.1.ic11.1/libic11.1-32bit -lsmartheap |
| 473.astar: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=routine -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.1.ic11.1/libic11.1-64bit -lsmartheap64 |
| 483.xalancbmk: | basepeak = yes |
