| CPU2006 license: | 19 | Test date: | Apr-2010 |
|---|---|---|---|
| Test sponsor: | Fujitsu | Hardware Availability: | May-2010 |
| Tested by: | Fujitsu | Software Availability: | Oct-2009 |
| Hardware | |
|---|---|
| CPU Name: | Intel Core i5-680 |
| CPU Characteristics: | Intel Turbo Boost Technology up to 3.87 GHz |
| CPU MHz: | 3600 |
| FPU: | Integrated |
| CPU(s) enabled: | 2 cores, 1 chip, 2 cores/chip, 2 threads/core |
| CPU(s) orderable: | 1 chip |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 4 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 8 GB (2x4 GB PC3-10600U, 2 rank, CL9) |
| Disk Subsystem: | 1 x SATA II, 400 GB, 7200 rpm |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SUSE Linux Enterprise Server 11 (x86_64), kernel 2.6.27.19-5-default |
| Compiler: | Intel C++ Compiler for IA32 and Intel 64, Version 11.1 Build 20091012 Package ID: l_cproc_p_11.1.059 |
| Auto Parallel: | No |
| File System: | ext3 |
| System State: | Multi-User Run Level 3 |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V8.1 |

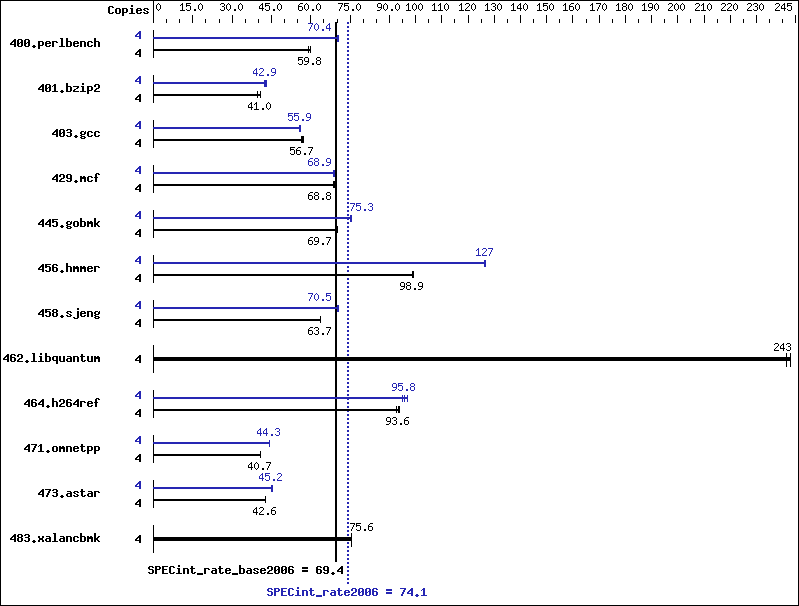

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 4 | 663 | 59.0 | 653 | 59.8 | 654 | 59.8 | 4 | 555 | 70.4 | 555 | 70.4 | 552 | 70.7 |
| 401.bzip2 | 4 | 942 | 41.0 | 942 | 41.0 | 969 | 39.9 | 4 | 895 | 43.1 | 909 | 42.5 | 899 | 42.9 |
| 403.gcc | 4 | 569 | 56.6 | 567 | 56.7 | 564 | 57.1 | 4 | 577 | 55.8 | 576 | 55.9 | 574 | 56.1 |
| 429.mcf | 4 | 530 | 68.8 | 529 | 68.9 | 531 | 68.8 | 4 | 530 | 68.8 | 529 | 68.9 | 528 | 69.1 |
| 445.gobmk | 4 | 602 | 69.7 | 598 | 70.1 | 606 | 69.3 | 4 | 558 | 75.3 | 557 | 75.4 | 557 | 75.3 |
| 456.hmmer | 4 | 378 | 98.7 | 377 | 98.9 | 377 | 99.0 | 4 | 295 | 127 | 296 | 126 | 295 | 127 |
| 458.sjeng | 4 | 760 | 63.7 | 760 | 63.7 | 758 | 63.8 | 4 | 684 | 70.7 | 691 | 70.1 | 686 | 70.5 |
| 462.libquantum | 4 | 341 | 243 | 343 | 242 | 341 | 243 | 4 | 341 | 243 | 343 | 242 | 341 | 243 |
| 464.h264ref | 4 | 953 | 92.9 | 944 | 93.7 | 946 | 93.6 | 4 | 913 | 97.0 | 930 | 95.2 | 924 | 95.8 |
| 471.omnetpp | 4 | 613 | 40.8 | 614 | 40.7 | 614 | 40.7 | 4 | 564 | 44.3 | 563 | 44.4 | 564 | 44.3 |
| 473.astar | 4 | 659 | 42.6 | 658 | 42.7 | 658 | 42.6 | 4 | 621 | 45.2 | 622 | 45.2 | 622 | 45.1 |
| 483.xalancbmk | 4 | 365 | 75.6 | 365 | 75.6 | 365 | 75.6 | 4 | 365 | 75.6 | 365 | 75.6 | 365 | 75.6 |
Submit Notes
The config file option 'submit' was used. numactl was used to bind copies to the cores
Operating System Notes
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run
General Notes
Binaries were compiled on SLES10 with Binutils 2.18.50.0.7.20080502
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -static -opt-prefetch |
C++ benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.1.ic11.1/libic11.1-32bit -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc -m32 | |
| 401.bzip2: | icc -m64 |
| 456.hmmer: | icc -m64 |
| 458.sjeng: | icc -m64 |
C++ benchmarks (except as noted below):
| icpc -m32 | |
| 473.astar: | icpc -m64 |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 473.astar: | -DSPEC_CPU_LP64 |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -ansi-alias |
| 401.bzip2: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -opt-prefetch -ansi-alias -auto-ilp32 |
| 403.gcc: | -xSSE4.2 -ipo -O3 -no-prec-div -static |
| 429.mcf: | -xSSE4.2 -ipo -O3 -no-prec-div -static -opt-prefetch |
| 445.gobmk: | -xSSE4.2(pass 2) -prof-gen(pass 1) -prof-use(pass 2) -O2 -ipo -no-prec-div -ansi-alias |
| 456.hmmer: | -xSSE4.2 -ipo -O3 -no-prec-div -static -unroll2 -ansi-alias -auto-ilp32 |
| 458.sjeng: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll4 -auto-ilp32 |
| 462.libquantum: | basepeak = yes |
| 464.h264ref: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll2 -ansi-alias |
C++ benchmarks:
| 471.omnetpp: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.1.ic11.1/libic11.1-32bit -lsmartheap |
| 473.astar: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=routine -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.1.ic11.1/libic11.1-64bit -lsmartheap64 |
| 483.xalancbmk: | basepeak = yes |
