SPEC® CINT2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

IBM Corporation

IBM Power 780 (3.86 GHz, 64 core, SLES)

CPU2006 license: 11 Test date: Mar-2010
Test sponsor: IBM Corporation Hardware Availability: Mar-2010
Tested by: IBM Corporation Software Availability: Dec-2009

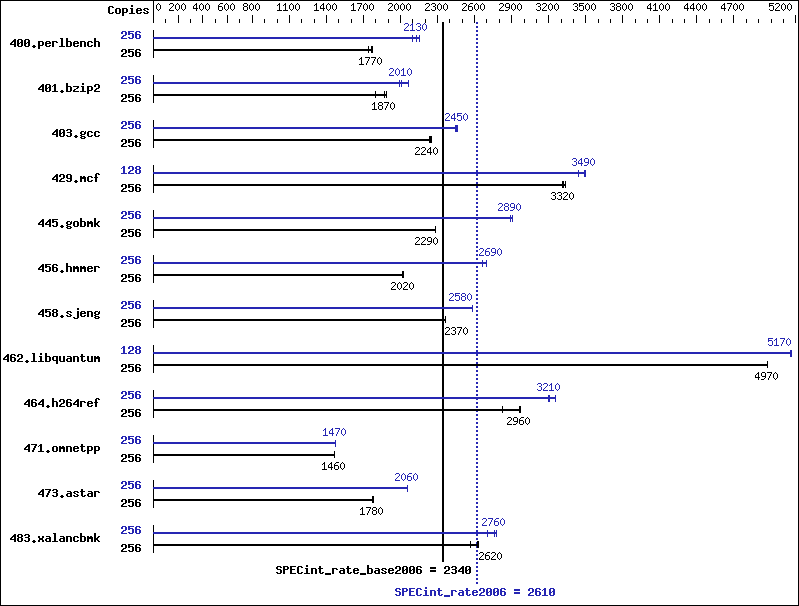

Benchmark results graph
Hardware
CPU Name: POWER7
CPU Characteristics: Intelligent Energy Optimization
enabled, up to 3.94 GHz
CPU MHz: 3860
FPU: Integrated
CPU(s) enabled: 64 cores, 8 chips, 8 cores/chip, 4 threads/core
CPU(s) orderable: 8,16,24,32,48,64 cores
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
L3 Cache: 4 MB I+D on chip per core
Other Cache: None
Memory: 512 GB (64x8 GB) DDR3 1066 MHz
Disk Subsystem: 6x146.8 GB SAS SFF 15K RPM
Other Hardware: None
Software
Operating System: SUSE Linux Enterprise Server 11
(ppc64), Kernel 2.6.27.19-5-ppc64
Compiler: IBM XL C/C++ for Linux, V10.1
Updated with the Oct2009 PTF
Auto Parallel: No
File System: ext3
System State: Run level 3 (multi-user)
Base Pointers: 32-bit
Peak Pointers: 32/64-bit
Other Software: -Post-Link Optimization for Linux on
POWER, Version 5.5.0-1
-MicroQuill SmartHeap 9

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 256 1439 1740 1416 1770 1408 1780 256 1193 2100 1174 2130 1159 2160
401.bzip2 256 1322 1870 1374 1800 1309 1890 256 1242 1990 1232 2010 1198 2060
403.gcc 256 916 2250 919 2240 924 2230 256 839 2450 838 2460 842 2450
429.mcf 256 699 3340 704 3320 705 3310 128 334 3500 335 3490 339 3440
445.gobmk 256 1174 2290 1175 2290 1175 2290 256 924 2900 928 2890 928 2890
456.hmmer 256 1182 2020 1184 2020 1182 2020 256 887 2690 887 2690 897 2660
458.sjeng 256 1309 2370 1310 2360 1310 2370 256 1199 2580 1199 2580 1200 2580
462.libquantum 256 1067 4970 1066 4970 1067 4970 128 514 5160 513 5170 513 5170
464.h264ref 256 2005 2830 1914 2960 1906 2970 256 1742 3250 1765 3210 1772 3200
471.omnetpp 256 1093 1460 1093 1460 1092 1460 256 1085 1470 1085 1470 1085 1470
473.astar 256 1014 1770 1011 1780 1011 1780 256 874 2060 873 2060 874 2060
483.xalancbmk 256 689 2560 674 2620 672 2630 256 654 2700 640 2760 637 2770

Submit Notes

The config file option 'submit' was used.
Benchmarks bound to a processor using numactl on the submit command.

Operating System Notes

 ulimit -s (stack) set to 1048576.
 Large pages reserved as follows by root user:
     echo 14080 > /proc/sys/vm/nr_hugepages
 System configured with libhugetlbfs library for application access to large pages
 Environment variables set before executing benchmarks.
     export HUGETLB_VERBOSE=0
     export HUGETLB_MORECORE=yes
     export XLFRTEOPTS=intrinthds=1

General Notes


   IBM Post-Link Optimization tool with
   options "-O4 -omullX -see 0 -m power6" used for
       400.perlbench 401.bzip2 403.gcc 456.hmmer 458.sjeng
       483.xalancbmk
   options "-bf -dp -hr -las -pca -RC -RD -rmte -si -tlo -A 64 -isf 104 -lu 8 -rt 0.16
           -hrf 0.18 -ihf 40 -sdp 6 -sdpms 128 -shci 65 -si -sidf 45 -omullX" used for
      429.mcf
   options "-q -O3 -A 32 -omullX" used for
      445.gobmk
   options "-bf -dp -lro -nop -RC -RD -tb -tlo -vro -A 4
           -isf 88 -lu 8 -hrf 0.10 -sdp 4 -lun 27 -omullX" used for
      462.libquantum
   options "-O4 -omullX -see 1" used for
      473.astar
   options "-O4" used for
      464.h264ref
   Whenever option "-omullX" was used during the optimization phase,
      option "-imullX" was also used during the instrumentation phase.

Base Compiler Invocation

C benchmarks:

 xlc   -qlanglvl=extc99

C++ benchmarks:

 xlC

Base Portability Flags

400.perlbench:  -DSPEC_CPU_LINUX_PPC
462.libquantum:  -DSPEC_CPU_LINUX
464.h264ref:  -qchars=signed
483.xalancbmk:  -DSPEC_CPU_LINUX

Base Optimization Flags

C benchmarks:

 -O5   -qalias=noansi   -qalloca   -lhugetlbfs

C++ benchmarks:

 -O5   -qrtti   -lsmartheap

Base Other Flags

C benchmarks:

 -qipa=noobject   -qipa=threads

C++ benchmarks:

 -qipa=noobject   -qipa=threads

Peak Compiler Invocation

C benchmarks:

 xlc   -qlanglvl=extc99

C++ benchmarks:

 xlC

Peak Portability Flags

400.perlbench:  -DSPEC_CPU_LINUX_PPC
462.libquantum:  -DSPEC_CPU_LINUX
464.h264ref:  -qchars=signed
483.xalancbmk:  -DSPEC_CPU_LINUX

Peak Optimization Flags

C benchmarks:

400.perlbench:  -Wl,-q   -qpdf1(pass 1)   -qpdf2(pass 2)   -O4   -qalias=noansi   -lsmartheap
401.bzip2:  -Wl,-q   -qpdf1(pass 1)   -qpdf2(pass 2)   -O3   -qarch=auto   -qtune=auto   -lhugetlbfs
403.gcc:  -Wl,-q   -qpdf1(pass 1)   -qpdf2(pass 2)   -O4   -qalloca   -lhugetlbfs
429.mcf:  -Wl,-q   -O5   -qnoenablevmx   -lhugetlbfs
445.gobmk:  -Wl,-q   -qpdf1(pass 1)   -qpdf2(pass 2)   -O4   -qnoenablevmx   -lhugetlbfs
456.hmmer:  -Wl,-q   -qpdf1(pass 1)   -qpdf2(pass 2)   -O5   -lhugetlbfs
458.sjeng:  -Wl,-q   -O5   -lhugetlbfs
462.libquantum:  -Wl,-q   -qpdf1(pass 1)   -qpdf2(pass 2)   -O5   -qnoenablevmx   -q64   -lhugetlbfs
464.h264ref:  Same as 456.hmmer

C++ benchmarks:

471.omnetpp:  -qpdf1(pass 1)   -qpdf2(pass 2)   -O4   -qrtti   -lsmartheap
473.astar:  -Wl,-q   -qpdf1(pass 1)   -qpdf2(pass 2)   -O4   -qnoenablevmx   -lsmartheap
483.xalancbmk:  -Wl,-q   -O5   -lsmartheap

Peak Other Flags

C benchmarks:

 -qipa=noobject   -qipa=threads

C++ benchmarks:

 -qipa=noobject   -qipa=threads

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/IBM-Linux-XL.20100302.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/IBM-Linux-XL.20100302.xml.
