SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Hewlett-Packard Company

ProLiant BL490c G6
(2.93 GHz, Intel Xeon X5670)

CPU2006 license: 3 Test date: Mar-2010
Test sponsor: Hewlett-Packard Company Hardware Availability: Jun-2010
Tested by: Hewlett-Packard Company Software Availability: Sep-2009

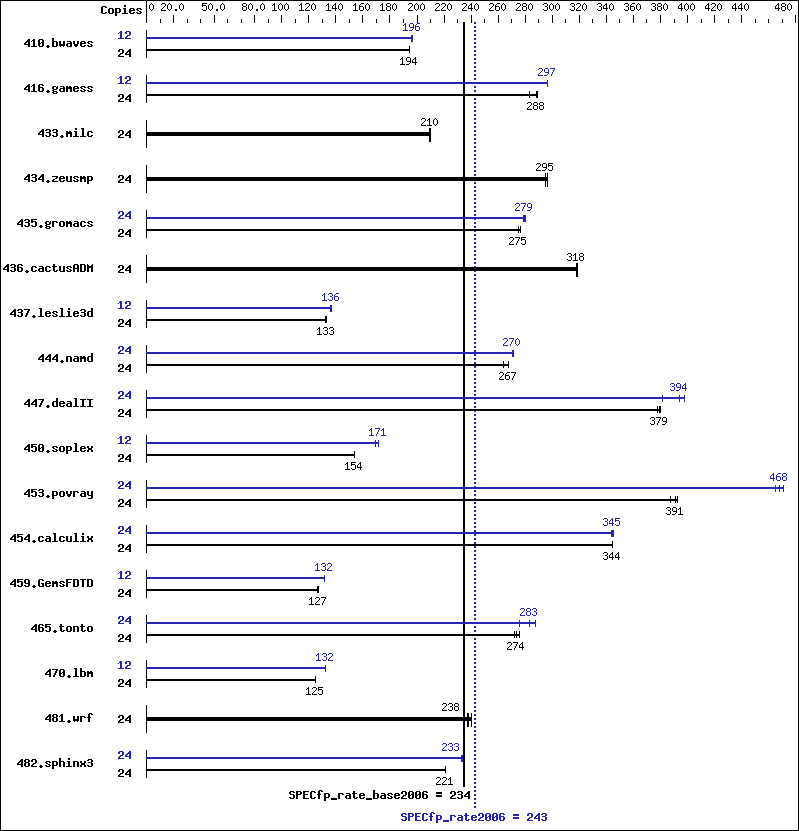

Benchmark results graph
Hardware
CPU Name: Intel Xeon X5670
CPU Characteristics: Intel Turbo Boost Technology up to 3.33 GHz
CPU MHz: 2933
FPU: Integrated
CPU(s) enabled: 12 cores, 2 chips, 6 cores/chip, 2 threads/core
CPU(s) orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
L3 Cache: 12 MB I+D on chip per chip
Other Cache: None
Memory: 48 GB (12x4 GB PC3-10600R CL9)
Disk Subsystem: 1 x 64 GB SSD SATA
Other Hardware: None
Software
Operating System: Red Hat Enterprise Linux Server release 5.4
Kernel 2.6.18-164.el5
Compiler: Intel C++ and Fortran Compiler 11.1 for Linux
Build 20090827 Package ID: l_cproc_p_11.1.056,
l_cprof_p_11.1.056
Auto Parallel: No
File System: ext3
System State: Run level 3 (multi-user)
Base Pointers: 64-bit
Peak Pointers: 32/64-bit
Other Software: Binutils 2.17.50.0.18

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 24 1678 194 1678 194 1680 194 12 831 196 829 197 830 196
416.gamess 24 1625 289 1631 288 1661 283 12 793 296 792 297 792 297
433.milc 24 1051 210 1051 210 1051 210 24 1051 210 1051 210 1051 210
434.zeusmp 24 740 295 741 295 737 296 24 740 295 741 295 737 296
435.gromacs 24 619 277 623 275 622 275 24 614 279 614 279 611 280
436.cactusADM 24 902 318 901 318 902 318 24 902 318 901 318 902 318
437.leslie3d 24 1698 133 1699 133 1700 133 12 826 137 827 136 827 136
444.namd 24 719 268 720 267 730 264 24 712 270 710 271 712 270
447.dealII 24 724 379 726 378 723 380 24 697 394 690 398 720 381
450.soplex 24 1301 154 1301 154 1300 154 12 591 169 585 171 584 171
453.povray 24 329 388 325 392 326 391 24 273 468 274 465 271 471
454.calculix 24 574 345 575 344 575 344 24 574 345 576 344 574 345
459.GemsFDTD 24 2007 127 2010 127 2005 127 12 966 132 966 132 966 132
465.tonto 24 863 274 868 272 857 275 24 857 276 822 287 834 283
470.lbm 24 2638 125 2642 125 2645 125 12 1246 132 1246 132 1246 132
481.wrf 24 1114 241 1129 237 1126 238 24 1114 241 1129 237 1126 238
482.sphinx3 24 2116 221 2116 221 2118 221 24 2005 233 2004 233 2008 233

Submit Notes

 The config file option 'submit' was used.
 numactl was used to bind copies to the cores

Operating System Notes

 'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run

Platform Notes

 BIOS configuration:
  HP Power Profile set to Maximum Performance
  Thermal Configuration set to Increased Cooling
  Memory Speed with 2 DIMMs per Channel set to 1333MHz Maximum
  Data Reuse set to Disabled

Base Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

 icpc

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icc   ifort

Base Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64   -nofor_main
436.cactusADM:  -DSPEC_CPU_LP64   -nofor_main
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
450.soplex:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64   -nofor_main
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_CASE_FLAG   -DSPEC_CPU_LINUX
482.sphinx3:  -DSPEC_CPU_LP64

Base Optimization Flags

C benchmarks:

 -xSSE4.2   -ipo   -O3   -no-prec-div   -static

C++ benchmarks:

 -xSSE4.2   -ipo   -O3   -no-prec-div   -static

Fortran benchmarks:

 -xSSE4.2   -ipo   -O3   -no-prec-div   -static

Benchmarks using both Fortran and C:

 -xSSE4.2   -ipo   -O3   -no-prec-div   -static

Peak Compiler Invocation

C benchmarks (except as noted below):

 icc
482.sphinx3:  icc   -m32

C++ benchmarks (except as noted below):

 icpc
450.soplex:  /opt/intel/Compiler/11.1/056/bin/intel64/icpc   -m32

Fortran benchmarks (except as noted below):

 ifort
437.leslie3d:  ifort   -m32

Benchmarks using both Fortran and C:

 icc   ifort

Peak Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64   -nofor_main
436.cactusADM:  -DSPEC_CPU_LP64   -nofor_main
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64   -nofor_main
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_CASE_FLAG   -DSPEC_CPU_LINUX

Peak Optimization Flags

C benchmarks:

433.milc:  basepeak = yes
470.lbm:  -xSSE4.2   -ipo   -O3   -no-prec-div   -static   -opt-prefetch   -auto-ilp32
482.sphinx3:  -xSSE4.2   -ipo   -O3   -no-prec-div   -static   -unroll2

C++ benchmarks:

444.namd:  -xSSE4.2(pass 2)   -prof-gen(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -static(pass 2)   -prof-use(pass 2)   -fno-alias   -auto-ilp32
447.dealII:  -xSSE4.2(pass 2)   -prof-gen(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -static(pass 2)   -prof-use(pass 2)   -unroll2   -ansi-alias   -scalar-rep-
450.soplex:  -xSSE4.2(pass 2)   -prof-gen(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -static(pass 2)   -prof-use(pass 2)   -opt-malloc-options=3
453.povray:  -xSSE4.2(pass 2)   -prof-gen(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -static(pass 2)   -prof-use(pass 2)   -unroll4   -ansi-alias

Fortran benchmarks:

410.bwaves:  -xSSE4.2   -ipo   -O3   -no-prec-div   -static   -opt-prefetch
416.gamess:  -xSSE4.2(pass 2)   -prof-gen(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -static(pass 2)   -prof-use(pass 2)   -unroll2   -Ob0   -ansi-alias   -scalar-rep-
434.zeusmp:  basepeak = yes
437.leslie3d:  -xSSE4.2(pass 2)   -prof-gen(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -static(pass 2)   -prof-use(pass 2)   -opt-malloc-options=3   -opt-prefetch
459.GemsFDTD:  -xSSE4.2(pass 2)   -prof-gen(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -static(pass 2)   -prof-use(pass 2)   -unroll2   -Ob0   -opt-prefetch
465.tonto:  -xSSE4.2(pass 2)   -prof-gen(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -static(pass 2)   -prof-use(pass 2)   -unroll4   -auto

Benchmarks using both Fortran and C:

435.gromacs:  -xSSE4.2(pass 2)   -prof-gen(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -static(pass 2)   -prof-use(pass 2)   -opt-prefetch   -auto-ilp32
436.cactusADM:  basepeak = yes
454.calculix:  -xSSE4.2   -ipo   -O3   -no-prec-div   -static   -auto-ilp32
481.wrf:  basepeak = yes

The flags files that were used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic11.0-fp-linux64-revA.20100202.00.html,
http://www.spec.org/cpu2006/flags/HP-Intel-Linux-Settings-flags.20100511.html.

You can also download the XML flags sources by saving the following links:
http://www.spec.org/cpu2006/flags/Intel-ic11.0-fp-linux64-revA.20100202.00.xml,
http://www.spec.org/cpu2006/flags/HP-Intel-Linux-Settings-flags.20100511.xml.
