| CPU2006 license: | 55 | Test date: | Mar-2010 |
|---|---|---|---|
| Test sponsor: | Dell Inc. | Hardware Availability: | Mar-2010 |
| Tested by: | Dell Inc. | Software Availability: | Dec-2009 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon X5680 |
| CPU Characteristics: | Intel Turbo Boost Technology up to 3.60 GHz |
| CPU MHz: | 3333 |
| FPU: | Integrated |
| CPU(s) enabled: | 12 cores, 2 chips, 6 cores/chip, 2 threads/core |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 12 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 48 GB (12x4 GB PC3-10600R) |
| Disk Subsystem: | 1 x 300 GB SATA 10000 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Windows 7 Professional (64-bit) |
| Compiler: | Intel C++ Compiler Professional for IA-32, Version 11.1 Build 20091130 Package ID: w_cproc_p_11.1.054 Microsoft Visual Studio 2008 SP1 |
| Auto Parallel: | No |
| File System: | NTFS |
| System State: | Default |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32-bit |
| Other Software: | MicroQuill SmartHeap Library 8.1 |

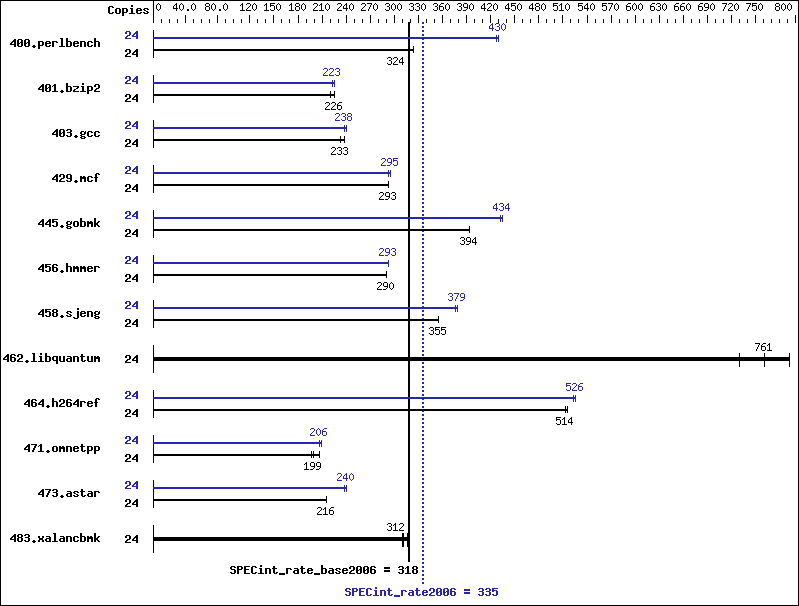

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 24 | 723 | 324 | 722 | 324 | 723 | 324 | 24 | 547 | 430 | 546 | 430 | 549 | 427 |
| 401.bzip2 | 24 | 1052 | 221 | 1023 | 226 | 1026 | 226 | 24 | 1036 | 223 | 1025 | 226 | 1037 | 223 |
| 403.gcc | 24 | 826 | 233 | 828 | 233 | 813 | 238 | 24 | 812 | 238 | 814 | 238 | 805 | 240 |
| 429.mcf | 24 | 745 | 293 | 748 | 293 | 749 | 293 | 24 | 747 | 293 | 742 | 295 | 744 | 295 |
| 445.gobmk | 24 | 639 | 394 | 639 | 394 | 639 | 394 | 24 | 580 | 434 | 582 | 432 | 581 | 434 |
| 456.hmmer | 24 | 773 | 290 | 773 | 290 | 771 | 290 | 24 | 767 | 293 | 768 | 293 | 767 | 293 |
| 458.sjeng | 24 | 818 | 355 | 819 | 355 | 819 | 355 | 24 | 768 | 379 | 767 | 379 | 769 | 377 |
| 462.libquantum | 24 | 681 | 730 | 628 | 792 | 654 | 761 | 24 | 681 | 730 | 628 | 792 | 654 | 761 |
| 464.h264ref | 24 | 1031 | 516 | 1035 | 514 | 1032 | 514 | 24 | 1009 | 526 | 1013 | 523 | 1012 | 526 |
| 471.omnetpp | 24 | 723 | 206 | 763 | 197 | 754 | 199 | 24 | 722 | 209 | 729 | 206 | 724 | 206 |
| 473.astar | 24 | 779 | 216 | 782 | 216 | 779 | 216 | 24 | 704 | 240 | 706 | 238 | 705 | 240 |
| 483.xalancbmk | 24 | 534 | 310 | 530 | 312 | 524 | 317 | 24 | 534 | 310 | 530 | 312 | 524 | 317 |
Platform Notes
BIOS Settings
Memory Node Interleaving: NUMA
Hyper-Threading: ENABLE
General Notes
Binaries were built on Windows Vista Business (64-bit)
Base Portability Flags
| 403.gcc: | -DSPEC_CPU_WIN32 |
| 464.h264ref: | -DSPEC_CPU_NO_INTTYPES -DWIN32 |
| 483.xalancbmk: | -Qoption,cpp,--no_wchar_t_keyword |
Base Optimization Flags
C benchmarks:
| -QxSSE4.2 -Qipo -O3 -Qprec-div- -Qopt-prefetch /F512000000 |
C++ benchmarks:
| -QxSSE4.2 -Qipo -O3 -Qprec-div- -Qopt-prefetch -Qcxx_features /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
Peak Portability Flags
| 403.gcc: | -DSPEC_CPU_WIN32 |
| 464.h264ref: | -DSPEC_CPU_NO_INTTYPES -DWIN32 |
| 483.xalancbmk: | -Qoption,cpp,--no_wchar_t_keyword |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -Qprof_gen(pass 1) -QxSSE4.2(pass 2) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qansi-alias -Qopt-prefetch /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
| 401.bzip2: | -Qprof_gen(pass 1) -QxSSE4.2(pass 2) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qansi-alias -Qopt-prefetch /F512000000 |
| 403.gcc: | -Qprof_gen(pass 1) -QxSSE4.2 -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qopt-prefetch /F512000000 |
| 429.mcf: | -QxSSE4.2 -Qipo -O3 -Qprec-div- -Qopt-prefetch /F512000000 |
| 445.gobmk: | -Qprof_gen(pass 1) -QxSSE4.2(pass 2) -Qprof_use(pass 2) -Qipo -O2 -Qprec-div- -Qansi-alias /F512000000 |
| 456.hmmer: | -QxSSE4.2 -Qipo -O3 -Qprec-div- -Qunroll2 -Qansi-alias /F512000000 |
| 458.sjeng: | -Qprof_gen(pass 1) -QxSSE4.2(pass 2) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qunroll4 /F512000000 |
| 462.libquantum: | basepeak = yes |
| 464.h264ref: | -Qprof_gen(pass 1) -QxSSE4.2(pass 2) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qunroll2 -Qansi-alias /F512000000 |
C++ benchmarks:
| 471.omnetpp: | -Qprof_gen(pass 1) -QxSSE4.2(pass 2) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qansi-alias -Qopt-ra-region-strategy=block /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
| 473.astar: | -Qprof_gen(pass 1) -QxSSE4.2(pass 2) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qansi-alias -Qopt-ra-region-strategy=routine /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
| 483.xalancbmk: | basepeak = yes |
