| CPU2006 license: | 13 | Test date: | Mar-2010 |
|---|---|---|---|
| Test sponsor: | Intel Corporation | Hardware Availability: | Mar-2010 |
| Tested by: | Intel Corporation | Software Availability: | Oct-2009 |
| Hardware | |
|---|---|
| CPU Name: | Intel Core i7-980X |
| CPU Characteristics: | Intel Turbo Boost Technology up to 3.60 GHz |
| CPU MHz: | 3333 |
| FPU: | Integrated |
| CPU(s) enabled: | 6 cores, 1 chip, 6 cores/chip, 2 threads/core |
| CPU(s) orderable: | 1 chip |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 12 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 12 GB (3x4GB Samsung M378B5273BH1-CF8 DDR3-1066 CL7) |
| Disk Subsystem: | Intel X25-M 160GB SSD |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Windows 7 Ultimate (64-bit) |
| Compiler: | Intel C++ Compiler Professional 11.1 for Intel 64 Build 20090903 Package ID: w_cproc_p_11.1.045 Microsoft Visual Studio 2008 Professional SP1 (for libraries) |
| Auto Parallel: | Yes |
| File System: | NTFS |
| System State: | Default |
| Base Pointers: | 64-bit |
| Peak Pointers: | 64-bit |
| Other Software: | None SmartHeap Library Version 8.1 from http://www.microquill.com/ |

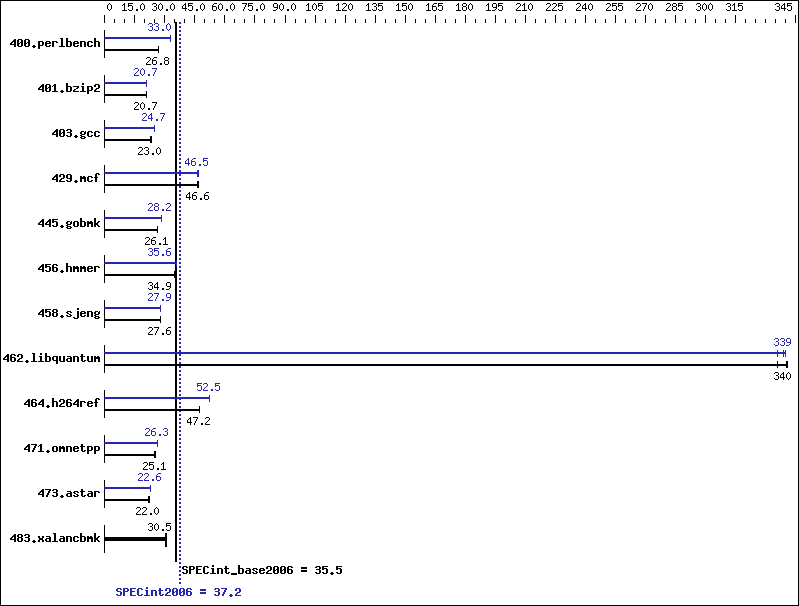

Results Table
| Benchmark | Base | Peak | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
| 400.perlbench | 364 | 26.9 | 365 | 26.8 | 365 | 26.8 | 296 | 33.0 | 296 | 33.0 | 296 | 33.0 |
| 401.bzip2 | 467 | 20.7 | 467 | 20.7 | 468 | 20.6 | 466 | 20.7 | 466 | 20.7 | 465 | 20.7 |
| 403.gcc | 348 | 23.1 | 350 | 23.0 | 350 | 23.0 | 324 | 24.8 | 328 | 24.6 | 326 | 24.7 |
| 429.mcf | 195 | 46.8 | 196 | 46.6 | 196 | 46.5 | 197 | 46.3 | 196 | 46.5 | 196 | 46.6 |
| 445.gobmk | 401 | 26.2 | 401 | 26.1 | 402 | 26.1 | 372 | 28.2 | 372 | 28.2 | 372 | 28.2 |
| 456.hmmer | 268 | 34.9 | 268 | 34.9 | 267 | 34.9 | 262 | 35.6 | 262 | 35.7 | 262 | 35.6 |
| 458.sjeng | 438 | 27.6 | 438 | 27.6 | 438 | 27.7 | 434 | 27.9 | 434 | 27.9 | 434 | 27.9 |
| 462.libquantum | 61.7 | 336 | 60.9 | 340 | 60.8 | 341 | 61.7 | 336 | 61.0 | 340 | 61.1 | 339 |
| 464.h264ref | 469 | 47.2 | 469 | 47.2 | 469 | 47.2 | 422 | 52.5 | 422 | 52.5 | 422 | 52.5 |
| 471.omnetpp | 249 | 25.1 | 251 | 24.9 | 247 | 25.3 | 236 | 26.5 | 237 | 26.3 | 237 | 26.3 |
| 473.astar | 319 | 22.0 | 318 | 22.1 | 319 | 22.0 | 310 | 22.7 | 311 | 22.6 | 311 | 22.6 |
| 483.xalancbmk | 225 | 30.7 | 226 | 30.5 | 226 | 30.5 | 225 | 30.7 | 226 | 30.5 | 226 | 30.5 |
General Notes
Tested systems can be used with Shin-G ATX case, PC Power and Cooling 1200W power supply OMP_NUM_THREADS set to number of processors cores KMP_AFFINITY set to granularity=fine,scatter
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_P64 -DSPEC_CPU_WIN64_X64 -DSPEC_CPU_NO_NEED_VA_COPY |
| 401.bzip2: | -DSPEC_CPU_P64 |
| 403.gcc: | -DSPEC_CPU_P64 -DSPEC_CPU_WIN64 |
| 429.mcf: | -DSPEC_CPU_P64 |
| 445.gobmk: | -DSPEC_CPU_P64 |
| 456.hmmer: | -DSPEC_CPU_P64 |
| 458.sjeng: | -DSPEC_CPU_P64 |
| 462.libquantum: | -DSPEC_CPU_P64 |
| 464.h264ref: | -DSPEC_CPU_P64 -DWIN32 -DSPEC_CPU_NO_INTTYPES |
| 471.omnetpp: | -DSPEC_CPU_P64 -DSPEC_CPU_WIN64 |
| 473.astar: | -DSPEC_CPU_P64 |
| 483.xalancbmk: | -DSPEC_CPU_P64 -Qoption,cpp,--no_wchar_t_keyword |
Base Optimization Flags
C benchmarks:
| -QxSSE4.2 -Qipo -O3 -Qprec-div- -Qopt-prefetch -Qparallel -Qauto-ilp32 /F512000000 |
C++ benchmarks:
| -QxSSE4.2 -Qipo -O3 -Qprec-div- -Qopt-prefetch -Qcxx-features -Qauto-ilp32 /F512000000 shlW64M.lib -link /FORCE:MULTIPLE |
Peak Portability Flags
Same as Base Portability Flags
Peak Optimization Flags
C benchmarks:
C++ benchmarks:
| 471.omnetpp: | -QxSSE4.2(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qansi-alias -Qopt-ra-region-strategy=block -Qauto-ilp32 /F512000000 shlW64M.lib -link /FORCE:MULTIPLE |
| 473.astar: | -QxSSE4.2(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qansi-alias -Qopt-ra-region-strategy=routine -Qauto-ilp32 /F512000000 shlW64M.lib -link /FORCE:MULTIPLE |
| 483.xalancbmk: | basepeak = yes |
