| CPU2006 license: | 20 | Test date: | Feb-2010 |
|---|---|---|---|
| Test sponsor: | Bull SAS | Hardware Availability: | Mar-2010 |
| Tested by: | Dell Inc. | Software Availability: | Dec-2009 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E7520 |
| CPU Characteristics: | None |
| CPU MHz: | 1866 |
| FPU: | Integrated |
| CPU(s) enabled: | 16 cores, 4 chips, 4 cores/chip, 2 threads/core |
| CPU(s) orderable: | 2,4 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 18 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 256 GB (64 x 4 GB DDR3-1067 QR RDIMM) |
| Disk Subsystem: | 1 x 300 GB 10000 RPM SAS 6Gb |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Red Hat Linux Enterprise Linux 5 (x86_64) Update 4 errata kernel (RHEL 5.4.z) kernel-2.6.18-164.9.1.el5.x86_64 |
| Compiler: | Intel C++ Professional Compiler for IA32 and Intel 64, Version 11.1 Build 20091130 Package ID: l_cproc_p_11.1.064 |
| Auto Parallel: | No |
| File System: | ext3 |
| System State: | Run level 5 (multi-user mode, with display manager as well as console logins) |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Binutils 2.17.50.0.6-12.el5 |

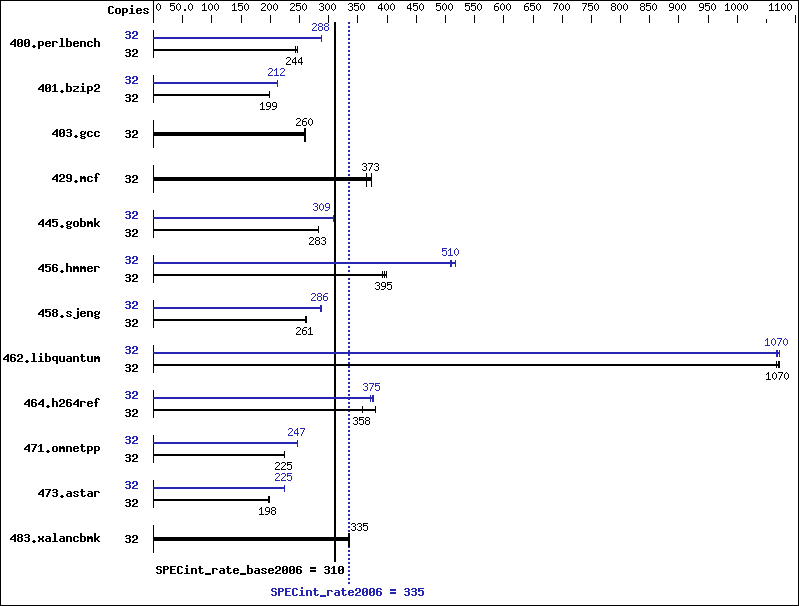

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 32 | 1281 | 244 | 1265 | 247 | 1281 | 244 | 32 | 1088 | 287 | 1087 | 288 | 1087 | 288 |
| 401.bzip2 | 32 | 1554 | 199 | 1552 | 199 | 1548 | 199 | 32 | 1457 | 212 | 1456 | 212 | 1460 | 212 |
| 403.gcc | 32 | 992 | 260 | 994 | 259 | 992 | 260 | 32 | 992 | 260 | 994 | 259 | 992 | 260 |
| 429.mcf | 32 | 783 | 373 | 799 | 365 | 783 | 373 | 32 | 783 | 373 | 799 | 365 | 783 | 373 |
| 445.gobmk | 32 | 1185 | 283 | 1186 | 283 | 1185 | 283 | 32 | 1086 | 309 | 1086 | 309 | 1087 | 309 |
| 456.hmmer | 32 | 750 | 398 | 760 | 393 | 756 | 395 | 32 | 587 | 508 | 585 | 510 | 576 | 518 |
| 458.sjeng | 32 | 1483 | 261 | 1487 | 260 | 1482 | 261 | 32 | 1352 | 286 | 1347 | 287 | 1352 | 286 |
| 462.libquantum | 32 | 622 | 1070 | 620 | 1070 | 619 | 1070 | 32 | 618 | 1070 | 622 | 1070 | 620 | 1070 |
| 464.h264ref | 32 | 1976 | 358 | 1978 | 358 | 1864 | 380 | 32 | 1882 | 376 | 1904 | 372 | 1891 | 375 |
| 471.omnetpp | 32 | 891 | 225 | 890 | 225 | 891 | 224 | 32 | 811 | 247 | 810 | 247 | 809 | 247 |
| 473.astar | 32 | 1135 | 198 | 1142 | 197 | 1137 | 198 | 32 | 999 | 225 | 1000 | 225 | 999 | 225 |
| 483.xalancbmk | 32 | 658 | 335 | 660 | 334 | 659 | 335 | 32 | 658 | 335 | 660 | 334 | 659 | 335 |
Submit Notes
The config file option 'submit' was used. numactl was used to bind copies to the cores
Operating System Notes
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run
Platform Notes
vm.zone_reclaim_mode = 1 in /etc/sysctl.conf file BIOS Settings: Power Management = Maximum Performance (Default = Active Power Controller)
General Notes
The Dell PowerEdge R910 and the Bull NovaScale R480 F2 models are electronically equivalent. The results have been measured on a Dell PowerEdge R910 model.
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -static -opt-prefetch |
C++ benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.1.ic11.1/libic11.1-32bit -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc -m32 | |
| 401.bzip2: | icc -m64 |
| 456.hmmer: | icc -m64 |
| 458.sjeng: | icc -m64 |
| 462.libquantum: | icc -m64 |
C++ benchmarks (except as noted below):
| icpc -m32 | |
| 473.astar: | icpc -m64 |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
| 473.astar: | -DSPEC_CPU_LP64 |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -ansi-alias |
| 401.bzip2: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -opt-prefetch -ansi-alias -auto-ilp32 |
| 403.gcc: | basepeak = yes |
| 429.mcf: | basepeak = yes |
| 445.gobmk: | -xSSE4.2(pass 2) -prof-gen(pass 1) -prof-use(pass 2) -O2 -ipo -no-prec-div -ansi-alias |
| 456.hmmer: | -xSSE4.2 -ipo -O3 -no-prec-div -static -unroll2 -ansi-alias -auto-ilp32 |
| 458.sjeng: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll4 -auto-ilp32 |
| 462.libquantum: | -xSSE4.2 -ipo -O3 -no-prec-div -static -auto-ilp32 -opt-prefetch |
| 464.h264ref: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll2 -ansi-alias |
C++ benchmarks:
| 471.omnetpp: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.1.ic11.1/libic11.1-32bit -lsmartheap |
| 473.astar: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=routine -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.1.ic11.1/libic11.1-64bit -lsmartheap64 |
| 483.xalancbmk: | basepeak = yes |
