| CPU2006 license: | 11 | Test date: | Mar-2010 |
|---|---|---|---|
| Test sponsor: | IBM Corporation | Hardware Availability: | Mar-2010 |
| Tested by: | IBM Corporation | Software Availability: | Jan-2010 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon X5677 |
| CPU Characteristics: | Intel Turbo Boost Technology up to 3.73 GHz |
| CPU MHz: | 3467 |
| FPU: | Integrated |
| CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip, 2 threads/core |
| CPU(s) orderable: | 1,2 chip |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 12 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 48 GB (12 x 4 GB PC3-10600R-ECC) |
| Disk Subsystem: | 1 x 73 GB SAS, 15000RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SuSe Linux Enterprise Server 11 (x86_64) Kernel 2.6.27.19-5-default |
| Compiler: | Intel C++ Professional Compiler for IA32 and Intel 64, Version 11.1 Build 20091130 Package ID: l_cproc_p_11.1.064 |
| Auto Parallel: | No |
| File System: | ext3 |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V8.1 Binutils 2.18.50.0.7.20080502 |

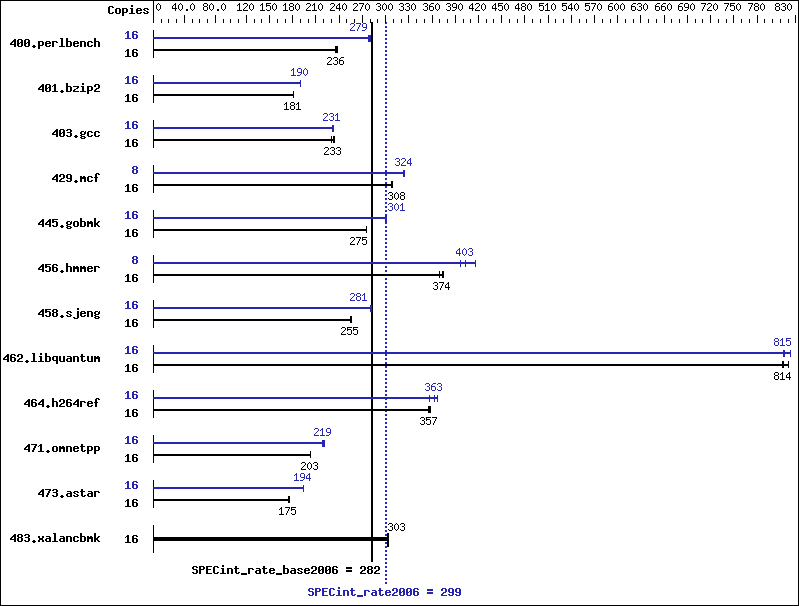

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 16 | 665 | 235 | 663 | 236 | 659 | 237 | 16 | 558 | 280 | 561 | 278 | 560 | 279 |
| 401.bzip2 | 16 | 851 | 181 | 854 | 181 | 852 | 181 | 16 | 814 | 190 | 811 | 190 | 811 | 190 |
| 403.gcc | 16 | 550 | 234 | 561 | 230 | 553 | 233 | 16 | 555 | 232 | 557 | 231 | 557 | 231 |
| 429.mcf | 16 | 475 | 307 | 474 | 308 | 472 | 309 | 8 | 225 | 324 | 225 | 324 | 225 | 324 |
| 445.gobmk | 16 | 610 | 275 | 609 | 276 | 610 | 275 | 16 | 558 | 301 | 558 | 301 | 560 | 300 |
| 456.hmmer | 16 | 399 | 374 | 404 | 369 | 399 | 374 | 8 | 185 | 403 | 180 | 416 | 188 | 397 |
| 458.sjeng | 16 | 760 | 255 | 759 | 255 | 755 | 256 | 16 | 691 | 280 | 690 | 281 | 686 | 282 |
| 462.libquantum | 16 | 408 | 813 | 404 | 821 | 407 | 814 | 16 | 407 | 815 | 403 | 824 | 407 | 815 |
| 464.h264ref | 16 | 992 | 357 | 996 | 356 | 989 | 358 | 16 | 963 | 368 | 977 | 363 | 992 | 357 |
| 471.omnetpp | 16 | 493 | 203 | 493 | 203 | 494 | 202 | 16 | 456 | 219 | 452 | 221 | 457 | 219 |
| 473.astar | 16 | 644 | 174 | 642 | 175 | 641 | 175 | 16 | 579 | 194 | 579 | 194 | 579 | 194 |
| 483.xalancbmk | 16 | 364 | 303 | 365 | 302 | 364 | 303 | 16 | 364 | 303 | 365 | 302 | 364 | 303 |
Submit Notes
The config file option 'submit' was used. numactl was used to bind copies to the cores
Platform Notes
Turbo Mode Enable CPU C State Enable
General Notes
'ulimit -s unlimited' was used to set the stack size to unlimited prior to run
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -static -opt-prefetch |
C++ benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.1.ic11.1/libic11.1-32bit -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc -m32 | |
| 401.bzip2: | icc -m64 |
| 456.hmmer: | icc -m64 |
| 458.sjeng: | icc -m64 |
| 462.libquantum: | icc -m64 |
C++ benchmarks (except as noted below):
| icpc -m32 | |
| 473.astar: | icpc -m64 |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
| 473.astar: | -DSPEC_CPU_LP64 |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -ansi-alias |
| 401.bzip2: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -opt-prefetch -ansi-alias -auto-ilp32 |
| 403.gcc: | -xSSE4.2 -ipo -O3 -no-prec-div -static |
| 429.mcf: | -xSSE4.2 -ipo -O3 -no-prec-div -static -opt-prefetch |
| 445.gobmk: | -xSSE4.2(pass 2) -prof-gen(pass 1) -prof-use(pass 2) -O2 -ipo -no-prec-div -ansi-alias |
| 456.hmmer: | -xSSE4.2 -ipo -O3 -no-prec-div -static -unroll2 -ansi-alias -auto-ilp32 |
| 458.sjeng: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll4 -auto-ilp32 |
| 462.libquantum: | -xSSE4.2 -ipo -O3 -no-prec-div -static -auto-ilp32 -opt-prefetch |
| 464.h264ref: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll2 -ansi-alias |
C++ benchmarks:
| 471.omnetpp: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.1.ic11.1/libic11.1-32bit -lsmartheap |
| 473.astar: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=routine -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.1.ic11.1/libic11.1-64bit -lsmartheap64 |
| 483.xalancbmk: | basepeak = yes |
