| CPU2006 license: | 9001 | Test date: | Feb-2010 |
|---|---|---|---|
| Test sponsor: | Itautec | Hardware Availability: | Mar-2009 |
| Tested by: | Itautec | Software Availability: | Feb-2009 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E5506 |
| CPU Characteristics: | |
| CPU MHz: | 2133 |
| FPU: | Integrated |
| CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip |
| CPU(s) orderable: | 1, 2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 4 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 24 GB (6 x 4GB DDR3-1066, CL 7, ECC, running at 800MHz) |
| Disk Subsystem: | 1 x 160 GB SATA-2, 7200RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SUSE Linux Enterprise Server 10 (x86_64) SP2 with patch Linux kernel 20090119, Kernel 2.6.16.60-0.34-smp |
| Compiler: | Intel C++ Compiler 11.0 for Linux Build 20090131 Package ID: l_cproc_p_11.0.081 |
| Auto Parallel: | No |
| File System: | ReiserFS |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V8.1 Binutils 2.18.50.0.7.20080502 |

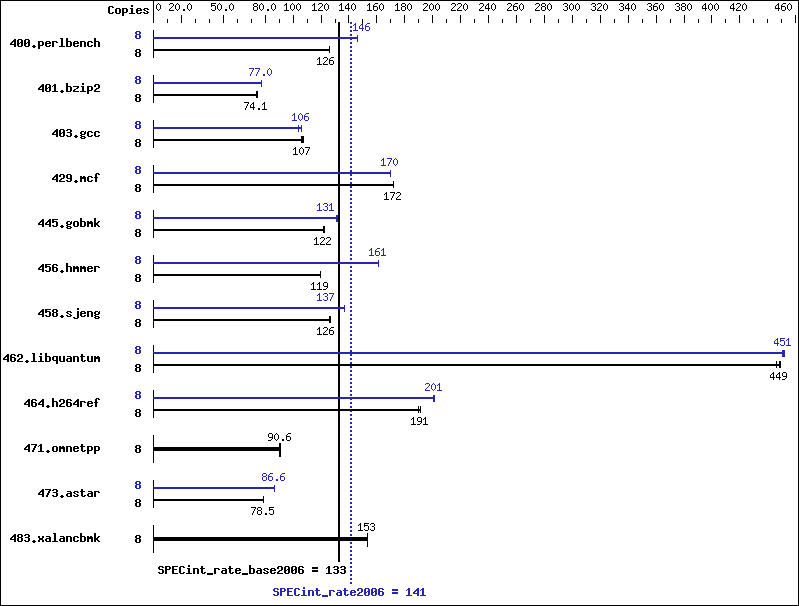

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 8 | 619 | 126 | 619 | 126 | 620 | 126 | 8 | 535 | 146 | 535 | 146 | 535 | 146 |
| 401.bzip2 | 8 | 1042 | 74.1 | 1043 | 74.0 | 1041 | 74.1 | 8 | 1002 | 77.0 | 1002 | 77.0 | 1002 | 77.0 |
| 403.gcc | 8 | 600 | 107 | 602 | 107 | 608 | 106 | 8 | 621 | 104 | 607 | 106 | 606 | 106 |
| 429.mcf | 8 | 425 | 172 | 424 | 172 | 425 | 172 | 8 | 430 | 170 | 430 | 170 | 431 | 169 |
| 445.gobmk | 8 | 690 | 122 | 689 | 122 | 687 | 122 | 8 | 641 | 131 | 640 | 131 | 638 | 132 |
| 456.hmmer | 8 | 626 | 119 | 626 | 119 | 626 | 119 | 8 | 463 | 161 | 464 | 161 | 463 | 161 |
| 458.sjeng | 8 | 765 | 127 | 765 | 126 | 767 | 126 | 8 | 709 | 137 | 708 | 137 | 709 | 137 |
| 462.libquantum | 8 | 369 | 449 | 370 | 449 | 372 | 446 | 8 | 367 | 452 | 367 | 451 | 368 | 451 |
| 464.h264ref | 8 | 932 | 190 | 927 | 191 | 927 | 191 | 8 | 882 | 201 | 881 | 201 | 880 | 201 |
| 471.omnetpp | 8 | 553 | 90.5 | 552 | 90.6 | 551 | 90.7 | 8 | 553 | 90.5 | 552 | 90.6 | 551 | 90.7 |
| 473.astar | 8 | 715 | 78.6 | 715 | 78.5 | 715 | 78.5 | 8 | 648 | 86.6 | 647 | 86.8 | 649 | 86.5 |
| 483.xalancbmk | 8 | 360 | 153 | 360 | 153 | 360 | 153 | 8 | 360 | 153 | 360 | 153 | 360 | 153 |
Submit Notes
The config file option 'submit' was used. numactl was used to bind copies to the cores
Operating System Notes
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run.
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -static -inline-calloc -opt-malloc-options=3 -opt-prefetch |
C++ benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L/home/richard/sh/SmartHeap_8.1/lib -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc | |
| 401.bzip2: | /opt/intel/Compiler/11.0/081/bin/intel64/icc |
| 456.hmmer: | /opt/intel/Compiler/11.0/081/bin/intel64/icc |
| 458.sjeng: | /opt/intel/Compiler/11.0/081/bin/intel64/icc |
C++ benchmarks (except as noted below):
| icpc | |
| 473.astar: | /opt/intel/Compiler/11.0/081/bin/intel64/icpc |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 473.astar: | -DSPEC_CPU_LP64 |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
C++ benchmarks:
| 471.omnetpp: | basepeak = yes |
| 473.astar: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=routine -auto-ilp32 -Wl,-z,muldefs -L/home/richard/sh/SmartHeap_8.1/lib -lsmartheap64 |
| 483.xalancbmk: | basepeak = yes |
