| CPU2006 license: | 20 | Test date: | Jan-2010 |
|---|---|---|---|
| Test sponsor: | Bull SAS | Hardware Availability: | Jan-2010 |
| Tested by: | Bull SAS | Software Availability: | Dec-2009 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E5504 |
| CPU Characteristics: | |
| CPU MHz: | 2000 |
| FPU: | Integrated |
| CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 4 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 48 GB (12 x 4 GB PC3-10600R, 2 Rank, running at 800 MHz) |
| Disk Subsystem: | 1 x 73 GB SAS, 10000 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SUSE Linux Enterprise Server 10 (x86_64) SP2, SP2 with patch Linux kernel 20090119, Kernel 2.6.16.60-0.34-smp |
| Compiler: | Intel C++ Professional Compiler for IA32 and Intel 64, Version 11.1 Build 20091130 Package ID: l_cproc_p_11.1.064 |
| Auto Parallel: | No |
| File System: | ReiserFS |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V8.1 Binutils 2.18.50.0.7.20080502 |

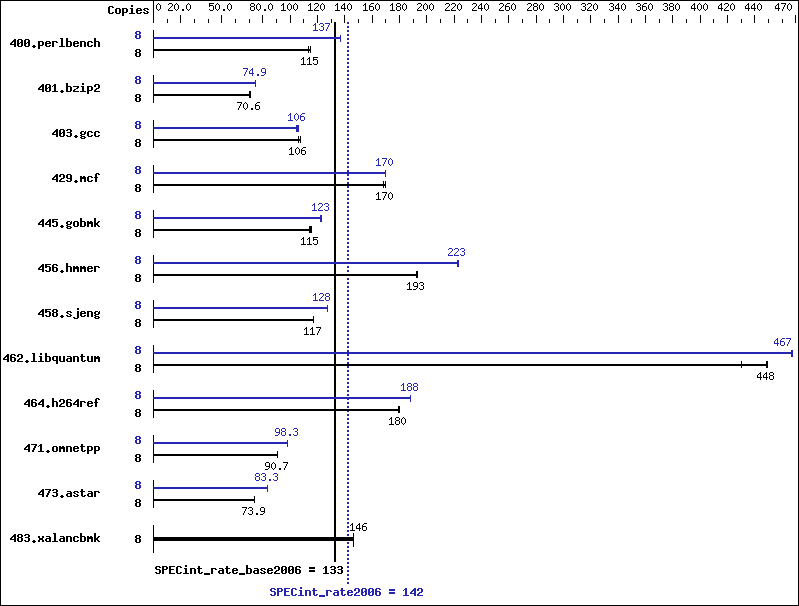

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 8 | 680 | 115 | 681 | 115 | 689 | 113 | 8 | 571 | 137 | 571 | 137 | 571 | 137 |
| 401.bzip2 | 8 | 1093 | 70.6 | 1094 | 70.6 | 1094 | 70.6 | 8 | 1031 | 74.9 | 1030 | 75.0 | 1031 | 74.9 |
| 403.gcc | 8 | 601 | 107 | 608 | 106 | 605 | 106 | 8 | 610 | 106 | 607 | 106 | 615 | 105 |
| 429.mcf | 8 | 434 | 168 | 429 | 170 | 429 | 170 | 8 | 430 | 170 | 429 | 170 | 430 | 170 |
| 445.gobmk | 8 | 727 | 115 | 736 | 114 | 730 | 115 | 8 | 682 | 123 | 687 | 122 | 684 | 123 |
| 456.hmmer | 8 | 386 | 193 | 387 | 193 | 387 | 193 | 8 | 336 | 222 | 335 | 223 | 335 | 223 |
| 458.sjeng | 8 | 828 | 117 | 829 | 117 | 829 | 117 | 8 | 758 | 128 | 758 | 128 | 758 | 128 |
| 462.libquantum | 8 | 370 | 448 | 369 | 449 | 385 | 430 | 8 | 355 | 467 | 355 | 467 | 355 | 467 |
| 464.h264ref | 8 | 986 | 180 | 985 | 180 | 985 | 180 | 8 | 940 | 188 | 940 | 188 | 941 | 188 |
| 471.omnetpp | 8 | 551 | 90.7 | 552 | 90.6 | 551 | 90.7 | 8 | 509 | 98.3 | 509 | 98.2 | 509 | 98.3 |
| 473.astar | 8 | 760 | 73.9 | 759 | 74.0 | 760 | 73.9 | 8 | 674 | 83.3 | 674 | 83.3 | 675 | 83.2 |
| 483.xalancbmk | 8 | 378 | 146 | 377 | 146 | 377 | 147 | 8 | 378 | 146 | 377 | 146 | 377 | 147 |
Submit Notes
The config file option 'submit' was used. numactl was used to bind copies to the cores
Operating System Notes
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run
General Notes
The Dell PowerEdge R710 (Intel Xeon E5504, 2.00 GHz) and the Bull NovaScale R460 F2 (Intel Xeon E5504, 2.00 GHz) models are electronically equivalent. The results have been measured on a Bull NovaScale R460 F2 (Intel Xeon E5504, 2.00 GHz) model.
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -static -opt-prefetch |
C++ benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.1.ic11.1/libic11.1-32bit -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc -m32 | |
| 401.bzip2: | icc -m64 |
| 456.hmmer: | icc -m64 |
| 458.sjeng: | icc -m64 |
| 462.libquantum: | icc -m64 |
C++ benchmarks (except as noted below):
| icpc -m32 | |
| 473.astar: | icpc -m64 |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
| 473.astar: | -DSPEC_CPU_LP64 |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -ansi-alias |
| 401.bzip2: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -opt-prefetch -ansi-alias -auto-ilp32 |
| 403.gcc: | -xSSE4.2 -ipo -O3 -no-prec-div -static |
| 429.mcf: | -xSSE4.2 -ipo -O3 -no-prec-div -static -opt-prefetch |
| 445.gobmk: | -xSSE4.2(pass 2) -prof-gen(pass 1) -prof-use(pass 2) -O2 -ipo -no-prec-div -ansi-alias |
| 456.hmmer: | -xSSE4.2 -ipo -O3 -no-prec-div -static -unroll2 -ansi-alias -auto-ilp32 |
| 458.sjeng: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll4 -auto-ilp32 |
| 462.libquantum: | -xSSE4.2 -ipo -O3 -no-prec-div -static -auto-ilp32 -opt-prefetch |
| 464.h264ref: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll2 -ansi-alias |
C++ benchmarks:
| 471.omnetpp: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.1.ic11.1/libic11.1-32bit -lsmartheap |
| 473.astar: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=routine -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.1.ic11.1/libic11.1-64bit -lsmartheap64 |
| 483.xalancbmk: | basepeak = yes |
