SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

IBM Corporation

IBM Power 780 (4.14 GHz, 32 core)

CPU2006 license: 11 Test date: Jan-2010
Test sponsor: IBM Corporation Hardware Availability: Mar-2010
Tested by: IBM Corporation Software Availability: Mar-2010

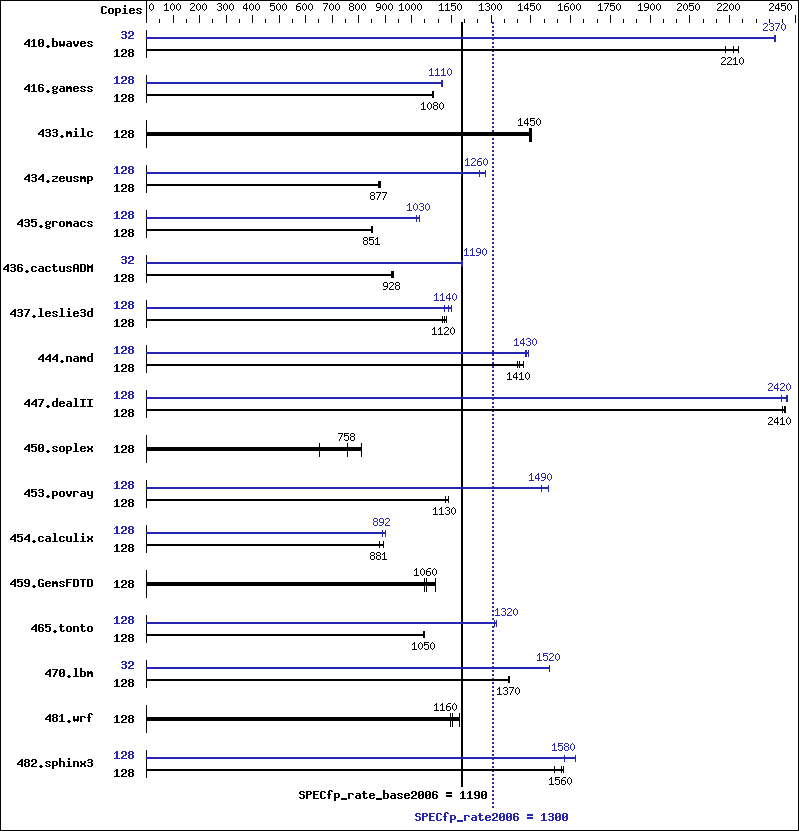

Benchmark results graph
Hardware
CPU Name: POWER7
CPU Characteristics: TurboCore mode
CPU MHz: 4140
FPU: Integrated
CPU(s) enabled: 32 cores, 8 chips, 4 cores/chip, 4 threads/core
CPU(s) orderable: 8,16,24,32,48,64 cores
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 512 KB I+D on chip per core
L3 Cache: 4 MB I+D on chip per core
Other Cache: 16 MB I+D on chip per chip
Memory: 512 GB (64x8 GB) DDR3 1066 MHz
Disk Subsystem: 12x146.8 GB SAS SFF 15K RPM
Other Hardware: None
Software
Operating System: IBM AIX V6.1 with the 6100-04
Technology Level and Service Pack 3
Compiler: XL C/C++ Enterprise Edition V10.1.0.5 for AIX
XL Fortran Enterprise Edition V12.1.0.6 for AIX
Auto Parallel: No
File System: AIX/JFS2
System State: Multi-user
Base Pointers: 32-bit
Peak Pointers: 32/64-bit
Other Software: None

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 128 796 2190 786 2210 779 2230 32 184 2370 183 2370 183 2370
416.gamess 128 2317 1080 2315 1080 2319 1080 128 2250 1110 2251 1110 2246 1120
433.milc 128 813 1450 810 1450 809 1450 128 813 1450 810 1450 809 1450
434.zeusmp 128 1333 874 1328 877 1319 883 128 979 1190 926 1260 911 1280
435.gromacs 128 1074 851 1074 851 1072 852 128 888 1030 886 1030 896 1020
436.cactusADM 128 1655 924 1649 928 1642 932 32 320 1190 320 1190 321 1190
437.leslie3d 128 1061 1130 1071 1120 1078 1120 128 1070 1120 1046 1150 1056 1140
444.namd 128 730 1410 734 1400 721 1420 128 717 1430 717 1430 712 1440
447.dealII 128 608 2410 610 2400 607 2410 128 606 2420 605 2420 611 2400
450.soplex 128 1409 758 1317 811 1631 654 128 1409 758 1317 811 1631 654
453.povray 128 597 1140 604 1130 603 1130 128 449 1520 457 1490 457 1490
454.calculix 128 1183 893 1198 881 1199 881 128 1173 900 1184 892 1184 892
459.GemsFDTD 128 1247 1090 1295 1050 1285 1060 128 1247 1090 1295 1050 1285 1060
465.tonto 128 1200 1050 1201 1050 1205 1050 128 953 1320 958 1320 954 1320
470.lbm 128 1284 1370 1285 1370 1288 1370 32 289 1520 289 1520 289 1520
481.wrf 128 1245 1150 1211 1180 1238 1160 128 1245 1150 1211 1180 1238 1160
482.sphinx3 128 1621 1540 1585 1570 1595 1560 128 1581 1580 1541 1620 1583 1580

Peak Tuning Notes

 fdpr binary optimization tool used for 410.bwaves
  with options -O3 -vrox -pbsi -A 64
 fdpr binary optimization tool used for 433.milc
  with options -O4 -vrox -pbsi
 fdpr binary optimization tool used for 434.zeusmp
  with options -O3 -vrox -sdp 9
 fdpr binary optimization tool used for 435.gromacs
  with options -O4 -vrox -pbsi
 fdpr binary optimization tool used for 437.leslie3d
  with options -O4 -vrox -pbsi
 fdpr binary optimization tool used for 450.soplex
  with options -O3 -vrox -sdp 9
 fdpr binary optimization tool used for 453.povray
  with options -O4 -vrox -pbsi
 fdpr binary optimization tool used for 454.calculix
  with options -O4 -vrox -pbsi
 fdpr binary optimization tool used for 459.GemsFDTD
  with options -O4 -vrox -pbsi
 fdpr binary optimization tool used for 470.lbm
  with options -O3 -vrox -sdp 9
 fdpr binary optimization tool used for 481.wrf
  with options -O4 -vrox -pbsi
 fdpr binary optimization tool used for 482.sphinx3
  with options -O4 -vrox -pbsi

Submit Notes

 The config file option 'submit' was used
 to assign benchmark copy to specific kernel thread using
 the "bindprocessor" command (see flags file for details).

Operating System Notes

 all ulimits set to unlimited.
 25600 16M large pages defined with vmo command

General Notes

Environment variables set by runspec before the start of the run:
MALLOCOPTIONS = "pool"
MEMORY_AFFINITY = "MCM"
XLFRTEOPTS = "intrinthds=1"

 See the flags file for details on settings.

Base Compiler Invocation

C benchmarks:

 /usr/vac/bin/xlc   -qlanglvl=extc99

C++ benchmarks:

 /usr/vacpp/bin/xlC

Fortran benchmarks:

 /usr/bin/xlf95

Benchmarks using both Fortran and C:

 /usr/vac/bin/xlc   -qlanglvl=extc99   /usr/bin/xlf95

Base Portability Flags

410.bwaves:  -qfixed
416.gamess:  -qfixed
434.zeusmp:  -qfixed
435.gromacs:  -qfixed   -qextname
436.cactusADM:  -qfixed   -qextname
437.leslie3d:  -qfixed
454.calculix:  -qfixed   -qextname
481.wrf:  -DSPEC_CPU_AIX   -DNOUNDERSCORE
482.sphinx3:  -qchars=signed

Base Optimization Flags

C benchmarks:

 -bmaxdata:0x40000000   -O5   -qlargepage   -D_ILS_MACROS   -blpdata

C++ benchmarks:

 -bmaxdata:0x50000000   -O5   -qlargepage   -D_ILS_MACROS   -qrtti=all   -D__IBM_FAST_VECTOR   -D__IBM_FAST_SET_MAP_ITERATOR   -blpdata

Fortran benchmarks:

 -bmaxdata:0x60000000   -O5   -qlargepage   -qsmallstack=dynlenonheap   -qalias=nostd   -blpdata

Benchmarks using both Fortran and C:

 -bmaxdata:0x60000000   -O5   -qlargepage   -D_ILS_MACROS   -qsmallstack=dynlenonheap   -qalias=nostd   -blpdata

Base Other Flags

C benchmarks:

 -qipa=threads   -qipa=noobject   -qsuppress=1500-036

C++ benchmarks:

 -qipa=threads   -qipa=noobject   -qsuppress=1500-036

Fortran benchmarks:

 -qipa=threads   -qipa=noobject   -qsuppress=1500-010   -qsuppress=cmpmsg   -qsuppress=1500-036

Benchmarks using both Fortran and C:

 -qipa=threads   -qipa=noobject   -qsuppress=1500-010   -qsuppress=cmpmsg   -qsuppress=1500-036

Peak Compiler Invocation

C benchmarks:

 /usr/vac/bin/xlc   -qlanglvl=extc99

C++ benchmarks:

 /usr/vacpp/bin/xlC

Fortran benchmarks:

 /usr/bin/xlf95

Benchmarks using both Fortran and C:

 /usr/vac/bin/xlc   -qlanglvl=extc99   /usr/bin/xlf95

Peak Portability Flags

410.bwaves:  -qfixed
416.gamess:  -qfixed
434.zeusmp:  -qfixed
435.gromacs:  -qfixed   -qextname
436.cactusADM:  -qfixed   -qextname
437.leslie3d:  -qfixed
454.calculix:  -qfixed   -qextname
481.wrf:  -DSPEC_CPU_AIX   -DNOUNDERSCORE
482.sphinx3:  -qchars=signed

Peak Optimization Flags

C benchmarks:

433.milc:  basepeak = yes
470.lbm:  -qpdf1(pass 1)   -qpdf2(pass 2)   -O3   -qarch=auto   -qtune=auto   -qlargepage   -q64   -D_ILS_MACROS   -qfdpr   -blpdata
482.sphinx3:  -qpdf1(pass 1)   -qpdf2(pass 2)   -O4   -qlargepage   -D_ILS_MACROS   -qfdpr   -blpdata

C++ benchmarks:

444.namd:  -qpdf1(pass 1)   -qpdf2(pass 2)   -O5   -qlargepage   -D_ILS_MACROS   -blpdata
447.dealII:  -bmaxdata:0x50000000   -O5   -D_ILS_MACROS   -qrtti=all   -D__IBM_FAST_VECTOR   -D__IBM_FAST_SET_MAP_ITERATOR   -blpdata   -btextpsize:64K
450.soplex:  basepeak = yes
453.povray:  -qpdf1(pass 1)   -qpdf2(pass 2)   -O5   -D_ILS_MACROS   -qalign=natural   -qfdpr   -btextpsize:64K

Fortran benchmarks:

410.bwaves:  -bmaxdata:0x50000000   -O5   -qlargepage   -qenablevmx   -qvecnvol   -qfdpr   -qsmallstack=dynlenonheap   -blpdata
416.gamess:  -bmaxdata:0x40000000   -qpdf1(pass 1)   -qpdf2(pass 2)   -O5   -qlargepage   -qalias=nostd   -blpdata
434.zeusmp:  -bmaxdata:0x40000000   -qpdf1(pass 1)   -qpdf2(pass 2)   -O3   -qarch=auto   -qtune=auto   -qlargepage   -qenablevmx   -qvecnvol   -qxlf90=nosignedzero   -qfdpr   -blpdata
437.leslie3d:  -O5   -qlargepage   -qenablevmx   -qvecnvol   -qfdpr   -blpdata
459.GemsFDTD:  basepeak = yes
465.tonto:  -bmaxdata:0x50000000   -qpdf1(pass 1)   -qpdf2(pass 2)   -O5   -blpdata   -btextpsize:64K

Benchmarks using both Fortran and C:

435.gromacs:  -qpdf1(pass 1)   -qpdf2(pass 2)   -O5   -D_ILS_MACROS   -qfdpr
436.cactusADM:  -bmaxdata:0x60000000   -qpdf1(pass 1)   -qpdf2(pass 2)   -O2   -qarch=auto   -qtune=auto   -qenablevmx   -qvecnvol   -D_ILS_MACROS   -qfdpr   -qnostrict   -blpdata   -btextpsize:64K
454.calculix:  -O4   -qlargepage   -q64   -D_ILS_MACROS   -qfdpr   -blpdata
481.wrf:  basepeak = yes

Peak Other Flags

C benchmarks:

 -qipa=threads   -qipa=noobject   -qsuppress=1500-036

C++ benchmarks:

 -qipa=threads   -qipa=noobject   -qsuppress=1500-036

Fortran benchmarks:

 -qipa=threads   -qipa=noobject   -qsuppress=1500-010   -qsuppress=cmpmsg   -qsuppress=1500-036

Benchmarks using both Fortran and C:

 -qipa=threads   -qipa=noobject   -qsuppress=1500-010   -qsuppress=cmpmsg   -qsuppress=1500-036

The flags files that were used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/IBM-XL.20100303.html,
http://www.spec.org/cpu2006/flags/IBM-AIX.20100303.html.

You can also download the XML flags sources by saving the following links:
http://www.spec.org/cpu2006/flags/IBM-XL.20100303.xml,
http://www.spec.org/cpu2006/flags/IBM-AIX.20100303.xml.

SPEC and SPECfp are registered trademarks of the Standard Performance Evaluation Corporation. All other brand and product names appearing in this result are trademarks or registered trademarks of their respective holders.

For questions about this result, please contact the tester.
For other inquiries, please contact webmaster@spec.org
Copyright 2006-2014 Standard Performance Evaluation Corporation
Tested with SPEC CPU2006 v1.1.
Report generated on Wed Jul 23 06:09:03 2014 by SPEC CPU2006 HTML formatter v6932.
Originally published on 3 March 2010.
