| CPU2006 license: | 11 | Test date: | Jan-2010 |
|---|---|---|---|
| Test sponsor: | IBM Corporation | Hardware Availability: | Feb-2010 |
| Tested by: | IBM Corporation | Software Availability: | Feb-2010 |
| Hardware | |
|---|---|
| CPU Name: | POWER7 |
| CPU Characteristics: | Intelligent Energy Optimization enabled, up to 3.86 GHz |
| CPU MHz: | 3550 |
| FPU: | Integrated |
| CPU(s) enabled: | 32 cores, 4 chips, 8 cores/chip, 4 threads/core |
| CPU(s) orderable: | 8,16,24,32 cores |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 4 MB I+D on chip per core |
| Other Cache: | None |
| Memory: | 256 GB (32x8 GB) DDR3 1066 MHz |
| Disk Subsystem: | 8x146.8 GB SAS SFF 15K RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | IBM AIX V6.1 with the 6100-04 Technology Level and Service Pack 2 |
| Compiler: | XL C/C++ Enterprise Edition V10.1.0.5 for AIX XL Fortran Enterprise Edition V12.1.0.6 for AIX |
| Auto Parallel: | No |
| File System: | AIX/JFS2 |
| System State: | Multi-user |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | None |

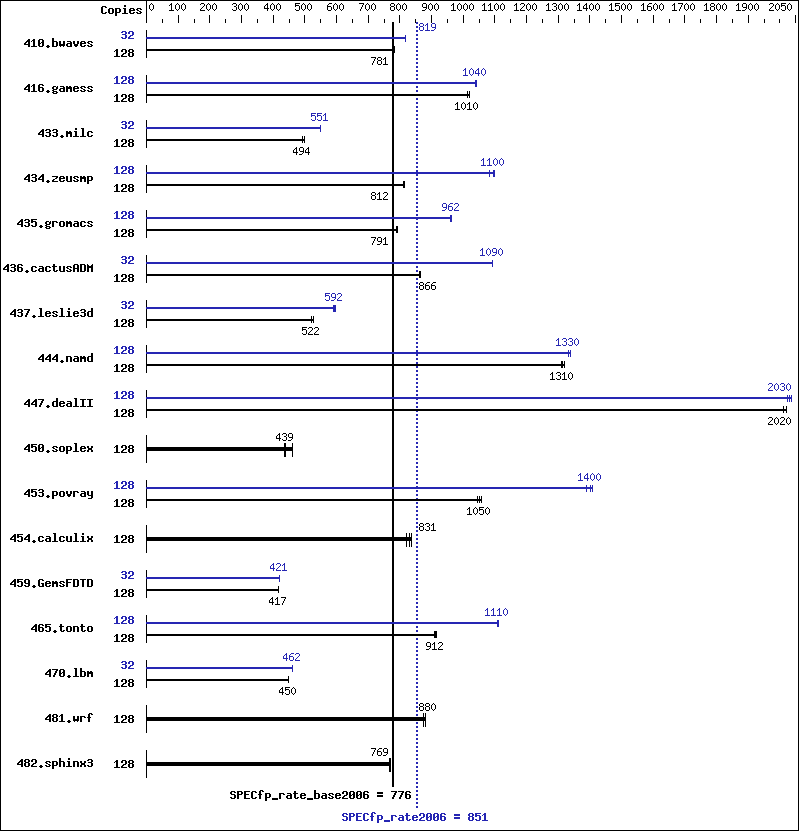

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 410.bwaves | 128 | 2237 | 778 | 2224 | 782 | 2226 | 781 | 32 | 531 | 819 | 532 | 818 | 531 | 819 |
| 416.gamess | 128 | 2474 | 1010 | 2471 | 1010 | 2461 | 1020 | 128 | 2413 | 1040 | 2407 | 1040 | 2416 | 1040 |
| 433.milc | 128 | 2357 | 498 | 2381 | 494 | 2379 | 494 | 32 | 534 | 550 | 534 | 551 | 534 | 551 |
| 434.zeusmp | 128 | 1437 | 810 | 1434 | 812 | 1428 | 816 | 128 | 1074 | 1080 | 1061 | 1100 | 1062 | 1100 |
| 435.gromacs | 128 | 1157 | 790 | 1155 | 791 | 1154 | 792 | 128 | 950 | 962 | 951 | 961 | 950 | 962 |
| 436.cactusADM | 128 | 1765 | 867 | 1766 | 866 | 1772 | 863 | 32 | 350 | 1090 | 350 | 1090 | 350 | 1090 |
| 437.leslie3d | 128 | 2282 | 527 | 2309 | 521 | 2306 | 522 | 32 | 503 | 598 | 508 | 592 | 508 | 592 |
| 444.namd | 128 | 778 | 1320 | 781 | 1310 | 784 | 1310 | 128 | 770 | 1330 | 767 | 1340 | 771 | 1330 |
| 447.dealII | 128 | 728 | 2010 | 725 | 2020 | 725 | 2020 | 128 | 724 | 2020 | 721 | 2030 | 719 | 2040 |
| 450.soplex | 128 | 2312 | 462 | 2458 | 434 | 2431 | 439 | 128 | 2312 | 462 | 2458 | 434 | 2431 | 439 |
| 453.povray | 128 | 649 | 1050 | 645 | 1060 | 651 | 1050 | 128 | 484 | 1410 | 485 | 1400 | 490 | 1390 |
| 454.calculix | 128 | 1270 | 831 | 1284 | 822 | 1261 | 838 | 128 | 1270 | 831 | 1284 | 822 | 1261 | 838 |
| 459.GemsFDTD | 128 | 3255 | 417 | 3257 | 417 | 3254 | 417 | 32 | 806 | 421 | 806 | 421 | 806 | 421 |
| 465.tonto | 128 | 1381 | 912 | 1386 | 909 | 1375 | 916 | 128 | 1136 | 1110 | 1137 | 1110 | 1133 | 1110 |
| 470.lbm | 128 | 3910 | 450 | 3911 | 450 | 3914 | 449 | 32 | 952 | 462 | 952 | 462 | 953 | 461 |
| 481.wrf | 128 | 1634 | 875 | 1622 | 881 | 1625 | 880 | 128 | 1634 | 875 | 1622 | 881 | 1625 | 880 |
| 482.sphinx3 | 128 | 3245 | 769 | 3253 | 767 | 3242 | 769 | 128 | 3245 | 769 | 3253 | 767 | 3242 | 769 |
Peak Tuning Notes
fdpr binary optimization tool used for 410.bwaves with options -O3 -vrox -pbsi -A 64 fdpr binary optimization tool used for 433.milc with options -O4 -vrox -pbsi fdpr binary optimization tool used for 434.zeusmp with options -O3 -vrox -sdp 9 fdpr binary optimization tool used for 435.gromacs with options -O4 -vrox -pbsi fdpr binary optimization tool used for 437.leslie3d with options -O4 -vrox -pbsi fdpr binary optimization tool used for 450.soplex with options -O3 -vrox -sdp 9 fdpr binary optimization tool used for 453.povray with options -O4 -vrox -pbsi fdpr binary optimization tool used for 454.calculix with options -O4 -vrox -pbsi fdpr binary optimization tool used for 459.GemsFDTD with options -O4 -vrox -pbsi fdpr binary optimization tool used for 470.lbm with options -O3 -vrox -sdp 9 fdpr binary optimization tool used for 481.wrf with options -O4 -vrox -pbsi fdpr binary optimization tool used for 482.sphinx3 with options -O4 -vrox -pbsi
Submit Notes
The config file option 'submit' was used to assign benchmark copy to specific kernel thread using the "bindprocessor" command (see flags file for details).
Operating System Notes
all ulimits set to unlimited. 12800 16M large pages defined with vmo command
General Notes
Environment variables set by runspec before the start of the run: MALLOCOPTIONS = "pool" MEMORY_AFFINITY = "MCM" XLFRTEOPTS = "intrinthds=1" See the flags file for details on settings.
Base Compiler Invocation
C benchmarks:
| /usr/vac/bin/xlc -qlanglvl=extc99 |
C++ benchmarks:
| /usr/vacpp/bin/xlC |
Fortran benchmarks:
| /usr/bin/xlf95 |
Benchmarks using both Fortran and C:
| /usr/vac/bin/xlc -qlanglvl=extc99 /usr/bin/xlf95 |
Base Portability Flags
| 410.bwaves: | -qfixed |
| 416.gamess: | -qfixed |
| 434.zeusmp: | -qfixed |
| 435.gromacs: | -qfixed -qextname |
| 436.cactusADM: | -qfixed -qextname |
| 437.leslie3d: | -qfixed |
| 454.calculix: | -qfixed -qextname |
| 481.wrf: | -DSPEC_CPU_AIX -DNOUNDERSCORE |
| 482.sphinx3: | -qchars=signed |
Base Optimization Flags
C benchmarks:
| -bmaxdata:0x40000000 -O5 -qlargepage -D_ILS_MACROS -blpdata |
C++ benchmarks:
| -bmaxdata:0x50000000 -O5 -qlargepage -D_ILS_MACROS -qrtti=all -D__IBM_FAST_VECTOR -D__IBM_FAST_SET_MAP_ITERATOR -blpdata |
Fortran benchmarks:
| -bmaxdata:0x60000000 -O5 -qlargepage -qsmallstack=dynlenonheap -qalias=nostd -blpdata |
Benchmarks using both Fortran and C:
| -bmaxdata:0x60000000 -O5 -qlargepage -D_ILS_MACROS -qsmallstack=dynlenonheap -qalias=nostd -blpdata |
Base Other Flags
C benchmarks:
| -qipa=threads -qipa=noobject -qsuppress=1500-036 |
C++ benchmarks:
| -qipa=threads -qipa=noobject -qsuppress=1500-036 |
Fortran benchmarks:
| -qipa=threads -qipa=noobject -qsuppress=1500-010 -qsuppress=cmpmsg -qsuppress=1500-036 |
Benchmarks using both Fortran and C:
| -qipa=threads -qipa=noobject -qsuppress=1500-010 -qsuppress=cmpmsg -qsuppress=1500-036 |
Peak Compiler Invocation
C benchmarks:
| /usr/vac/bin/xlc -qlanglvl=extc99 |
C++ benchmarks:
| /usr/vacpp/bin/xlC |
Fortran benchmarks:
| /usr/bin/xlf95 |
Benchmarks using both Fortran and C:
| /usr/vac/bin/xlc -qlanglvl=extc99 /usr/bin/xlf95 |
Peak Portability Flags
| 410.bwaves: | -qfixed |
| 416.gamess: | -qfixed |
| 434.zeusmp: | -qfixed |
| 435.gromacs: | -qfixed -qextname |
| 436.cactusADM: | -qfixed -qextname |
| 437.leslie3d: | -qfixed |
| 454.calculix: | -qfixed -qextname |
| 481.wrf: | -DSPEC_CPU_AIX -DNOUNDERSCORE |
| 482.sphinx3: | -qchars=signed |
Peak Optimization Flags
C benchmarks:
| 433.milc: | -bmaxdata:0x40000000 -O5 -qlargepage -D_ILS_MACROS -qalign=natural -qfdpr -blpdata |
| 470.lbm: | -qpdf1(pass 1) -qpdf2(pass 2) -O3 -qarch=auto -qtune=auto -qlargepage -q64 -D_ILS_MACROS -qfdpr -blpdata |
| 482.sphinx3: | basepeak = yes |
C++ benchmarks:
| 444.namd: | -qpdf1(pass 1) -qpdf2(pass 2) -O5 -qlargepage -D_ILS_MACROS -blpdata |
| 447.dealII: | -bmaxdata:0x50000000 -O5 -D_ILS_MACROS -qrtti=all -D__IBM_FAST_VECTOR -D__IBM_FAST_SET_MAP_ITERATOR -blpdata -btextpsize:64K |
| 450.soplex: | basepeak = yes |
| 453.povray: | -qpdf1(pass 1) -qpdf2(pass 2) -O5 -D_ILS_MACROS -qalign=natural -qfdpr -btextpsize:64K |
Fortran benchmarks:
| 410.bwaves: | -bmaxdata:0x50000000 -O5 -qlargepage -qenablevmx -qvecnvol -qfdpr -qsmallstack=dynlenonheap -blpdata |
| 416.gamess: | -bmaxdata:0x40000000 -qpdf1(pass 1) -qpdf2(pass 2) -O5 -qlargepage -qalias=nostd -blpdata |
| 434.zeusmp: | -bmaxdata:0x40000000 -qpdf1(pass 1) -qpdf2(pass 2) -O3 -qarch=auto -qtune=auto -qlargepage -qenablevmx -qvecnvol -qxlf90=nosignedzero -qfdpr -blpdata |
| 437.leslie3d: | -O5 -qlargepage -qenablevmx -qvecnvol -qfdpr -blpdata |
| 459.GemsFDTD: | -O4 -qlargepage -q64 -qfdpr -blpdata |
| 465.tonto: | -bmaxdata:0x50000000 -qpdf1(pass 1) -qpdf2(pass 2) -O5 -blpdata -btextpsize:64K |
Benchmarks using both Fortran and C:
| 435.gromacs: | -qpdf1(pass 1) -qpdf2(pass 2) -O5 -D_ILS_MACROS -qfdpr |
| 436.cactusADM: | -bmaxdata:0x60000000 -qpdf1(pass 1) -qpdf2(pass 2) -O2 -qarch=auto -qtune=auto -qenablevmx -qvecnvol -D_ILS_MACROS -qfdpr -qnostrict -blpdata -btextpsize:64K |
| 454.calculix: | basepeak = yes |
| 481.wrf: | basepeak = yes |
Peak Other Flags
C benchmarks:
| -qipa=threads -qipa=noobject -qsuppress=1500-036 |
C++ benchmarks:
| -qipa=threads -qipa=noobject -qsuppress=1500-036 |
Fortran benchmarks:
| -qipa=threads -qipa=noobject -qsuppress=1500-010 -qsuppress=cmpmsg -qsuppress=1500-036 |
Benchmarks using both Fortran and C:
| -qipa=threads -qipa=noobject -qsuppress=1500-010 -qsuppress=cmpmsg -qsuppress=1500-036 |
