| CPU2006 license: | 97 | Test date: | Nov-2009 |
|---|---|---|---|
| Test sponsor: | Acer Incorporated | Hardware Availability: | Jan-2010 |
| Tested by: | Acer Incorporated | Software Availability: | Feb-2009 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E5502 |
| CPU Characteristics: | |
| CPU MHz: | 1867 |
| FPU: | Integrated |
| CPU(s) enabled: | 4 cores, 2 chips, 2 cores/chip |
| CPU(s) orderable: | 1, 2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 4 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 24 GB (12 x 2 GB DDR3-1066 RDIMM, running at 800 MHz) |
| Disk Subsystem: | 1 x 500 GB SATA II, 7200 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SUSE Linux Enterprise Server 11 (x86_64) Kernel 2.6.27.19-5 |
| Compiler: | Intel C++ and Fortran Compiler 11.0 for Linux Build 20090131 Package ID: l_cproc_p_11.0.080, l_cprof_p_11.0.080 |
| Auto Parallel: | No |
| File System: | ReiserFS |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V8.1 Binutils 2.18.50.0.7.20080502 |

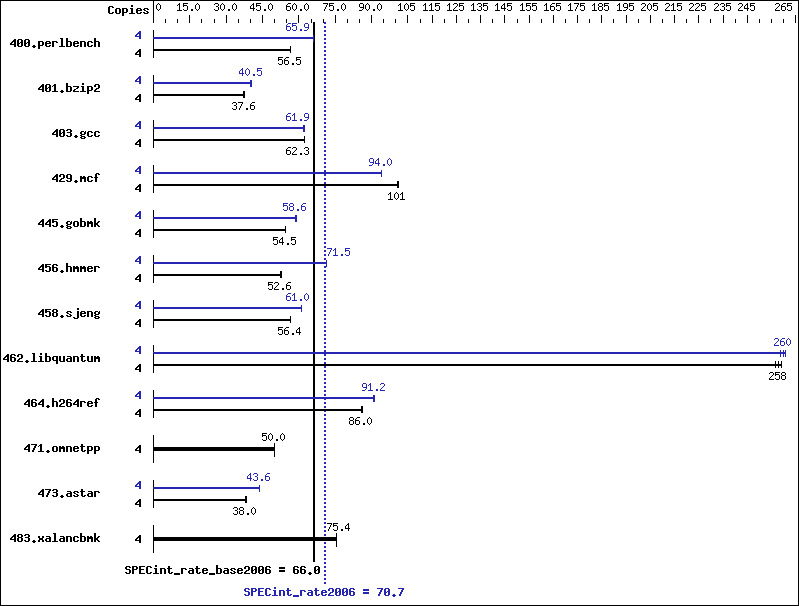

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 4 | 692 | 56.5 | 692 | 56.5 | 691 | 56.6 | 4 | 592 | 66.0 | 593 | 65.9 | 593 | 65.9 |
| 401.bzip2 | 4 | 1028 | 37.6 | 1023 | 37.7 | 1039 | 37.1 | 4 | 967 | 39.9 | 952 | 40.5 | 953 | 40.5 |
| 403.gcc | 4 | 516 | 62.4 | 517 | 62.3 | 517 | 62.2 | 4 | 522 | 61.7 | 520 | 61.9 | 518 | 62.2 |
| 429.mcf | 4 | 361 | 101 | 363 | 101 | 363 | 100 | 4 | 388 | 94.0 | 387 | 94.3 | 388 | 94.0 |
| 445.gobmk | 4 | 770 | 54.5 | 770 | 54.5 | 770 | 54.5 | 4 | 716 | 58.6 | 714 | 58.8 | 716 | 58.6 |
| 456.hmmer | 4 | 709 | 52.6 | 709 | 52.6 | 710 | 52.6 | 4 | 522 | 71.5 | 521 | 71.6 | 522 | 71.5 |
| 458.sjeng | 4 | 858 | 56.4 | 857 | 56.4 | 858 | 56.4 | 4 | 794 | 61.0 | 794 | 60.9 | 794 | 61.0 |
| 462.libquantum | 4 | 320 | 259 | 323 | 256 | 322 | 258 | 4 | 319 | 260 | 320 | 259 | 318 | 261 |
| 464.h264ref | 4 | 1030 | 85.9 | 1029 | 86.0 | 1028 | 86.1 | 4 | 971 | 91.2 | 971 | 91.2 | 973 | 91.0 |
| 471.omnetpp | 4 | 500 | 50.0 | 500 | 50.0 | 500 | 50.0 | 4 | 500 | 50.0 | 500 | 50.0 | 500 | 50.0 |
| 473.astar | 4 | 738 | 38.0 | 739 | 38.0 | 734 | 38.3 | 4 | 644 | 43.6 | 641 | 43.8 | 644 | 43.6 |
| 483.xalancbmk | 4 | 366 | 75.4 | 366 | 75.4 | 365 | 75.5 | 4 | 366 | 75.4 | 366 | 75.4 | 365 | 75.5 |
Submit Notes
The config file option 'submit' was used. numactl was used to bind copies to the cores
Operating System Notes
'ulimit -s unlimited' was set for stacksize unlimited
General Notes
This result was measured on the Gateway GW2000h-GW170h F1. The Acer AW2000h-AW170h F1 and Gateway GW2000h-GW170h F1 are electronically equivalent.
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -static -inline-calloc -opt-malloc-options=3 -opt-prefetch |
C++ benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L/spec/cpu2006.1.1/lib -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc | |
| 401.bzip2: | /opt/intel/Compiler/11.0/080/bin/intel64/icc |
| 456.hmmer: | /opt/intel/Compiler/11.0/080/bin/intel64/icc |
| 458.sjeng: | /opt/intel/Compiler/11.0/080/bin/intel64/icc |
C++ benchmarks (except as noted below):
| icpc | |
| 473.astar: | /opt/intel/Compiler/11.0/080/bin/intel64/icpc |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 473.astar: | -DSPEC_CPU_LP64 |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
C++ benchmarks:
| 471.omnetpp: | basepeak = yes |
| 473.astar: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=routine -auto-ilp32 -Wl,-z,muldefs -L/spec/cpu2006.1.1/lib -lsmartheap64 |
| 483.xalancbmk: | basepeak = yes |
