CPU2006 license: | 9019 | Test date: | Jan-2010 |
---|---|---|---|
Test sponsor: | Cisco Systems | Hardware Availability: | Oct-2009 |
Tested by: | Cisco Systems | Software Availability: | Mar-2009 |
Hardware | |
---|---|
CPU Name: | Intel Xeon E5540 |
CPU Characteristics: | Intel Turbo Boost Technology up to 2.80 GHz |
CPU MHz: | 2533 |
FPU: | Integrated |
CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip, 2 threads/core |
CPU(s) orderable: | 1,2 Chips |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 256 KB I+D on chip per core |
L3 Cache: | 8 MB I+D on chip per chip |
Other Cache: | None |
Memory: | 24 GB (12 * 2GB DDR3-1066 MHz) |
Disk Subsystem: | 73 GB SATA, 15kRPM |
Other Hardware: | None |
Software | |
---|---|
Operating System: | SuSe Linux Enterprise Server 11 (x86_64), Kernel 2.6.27-15-2-default, RC4 |
Compiler: | Intel C++ and Fortran Compiler 11.0 for Linux Build 20090131 Package ID: l_cproc_p_11.0.080, l_cprof_p_11.0.080 |
Auto Parallel: | No |
File System: | ReiserFS |
System State: | Run level 3 (multi-user) |
Base Pointers: | 64-bit |
Peak Pointers: | 32/64-bit |
Other Software: | Binutils 2.18.50.0.7.20080502 and SmartHeap |

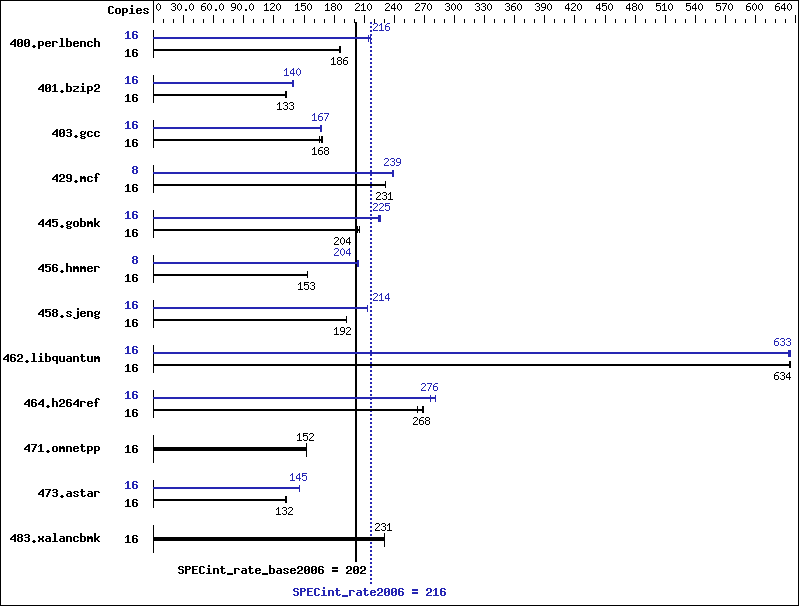

Benchmark | Base | Peak | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
400.perlbench | 16 | 838 | 186 | 839 | 186 | 844 | 185 | 16 | 721 | 217 | 722 | 216 | 729 | 214 |
401.bzip2 | 16 | 1173 | 132 | 1164 | 133 | 1164 | 133 | 16 | 1115 | 138 | 1106 | 140 | 1103 | 140 |
403.gcc | 16 | 767 | 168 | 767 | 168 | 777 | 166 | 16 | 768 | 168 | 770 | 167 | 774 | 166 |
429.mcf | 16 | 632 | 231 | 631 | 231 | 632 | 231 | 8 | 305 | 239 | 306 | 239 | 305 | 239 |
445.gobmk | 16 | 818 | 205 | 824 | 204 | 826 | 203 | 16 | 747 | 225 | 742 | 226 | 745 | 225 |
456.hmmer | 16 | 973 | 153 | 974 | 153 | 975 | 153 | 8 | 366 | 204 | 366 | 204 | 366 | 204 |
458.sjeng | 16 | 1007 | 192 | 1007 | 192 | 1008 | 192 | 16 | 906 | 214 | 907 | 214 | 907 | 213 |
462.libquantum | 16 | 523 | 634 | 523 | 634 | 522 | 635 | 16 | 524 | 633 | 523 | 633 | 522 | 635 |
464.h264ref | 16 | 1321 | 268 | 1347 | 263 | 1315 | 269 | 16 | 1262 | 281 | 1284 | 276 | 1282 | 276 |
471.omnetpp | 16 | 656 | 152 | 656 | 152 | 657 | 152 | 16 | 656 | 152 | 656 | 152 | 657 | 152 |
473.astar | 16 | 852 | 132 | 851 | 132 | 852 | 132 | 16 | 774 | 145 | 774 | 145 | 773 | 145 |
483.xalancbmk | 16 | 479 | 230 | 479 | 231 | 479 | 231 | 16 | 479 | 230 | 479 | 231 | 479 | 231 |
The config file option 'submit' was used. numactl was used to bind copies to the cores
ulimit -s unlimited was used to set the stacksize to unlimited prior to run
400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
462.libquantum: | -DSPEC_CPU_LINUX |
483.xalancbmk: | -DSPEC_CPU_LINUX |
-xSSE4.2 -ipo -O3 -no-prec-div -static -inline-calloc -opt-malloc-options=3 -opt-prefetch |
-xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L/spec/cpu2006.1.1/lib -lsmartheap |
icc | |
401.bzip2: | /opt/intel/Compiler/11.0/080/bin/intel64/icc |
456.hmmer: | /opt/intel/Compiler/11.0/080/bin/intel64/icc |
458.sjeng: | /opt/intel/Compiler/11.0/080/bin/intel64/icc |
icpc | |
473.astar: | /opt/intel/Compiler/11.0/080/bin/intel64/icpc |
400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
401.bzip2: | -DSPEC_CPU_LP64 |
456.hmmer: | -DSPEC_CPU_LP64 |
458.sjeng: | -DSPEC_CPU_LP64 |
462.libquantum: | -DSPEC_CPU_LINUX |
473.astar: | -DSPEC_CPU_LP64 |
483.xalancbmk: | -DSPEC_CPU_LINUX |
471.omnetpp: | basepeak = yes |
473.astar: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=routine -auto-ilp32 -Wl,-z,muldefs -L/spec/cpu2006.1.1/lib -lsmartheap64 |
483.xalancbmk: | basepeak = yes |
