SPEC® CINT2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Fujitsu

Fujitsu SPARC Enterprise M3000

CPU2006 license: 19 Test date: Nov-2009
Test sponsor: Fujitsu Hardware Availability: Jan-2010
Tested by: Fujitsu Software Availability: Oct-2009

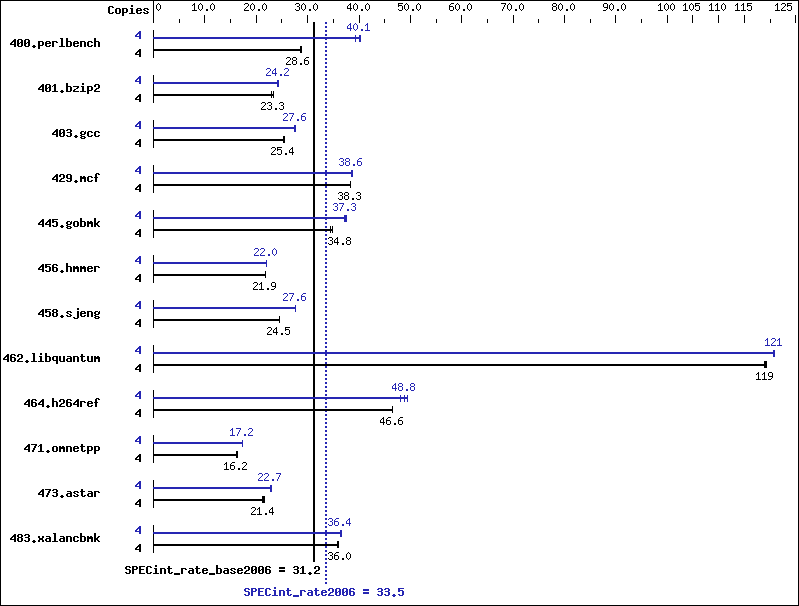

Benchmark results graph
Hardware
CPU Name: SPARC64 VII
CPU Characteristics: 2 cores
CPU MHz: 2750
FPU: Integrated
CPU(s) enabled: 2 cores, 1 chip, 2 cores/chip, 2 threads/core
CPU(s) orderable: 1 chip
Primary Cache: 64 KB I + 64 KB D on chip per core
Secondary Cache: 5 MB I+D on chip per chip
L3 Cache: None
Other Cache: None
Memory: 16 GB (8 x 2 GB), 2-way interleaved
Disk Subsystem: 1 x Seagate Savvio 10K.2 (146 GB 10,000 RPM SAS)
Other Hardware: None
Software
Operating System: Solaris 10 10/09 with patch 119963-18
Compiler: Sun Studio 12 Update 1
Auto Parallel: No
File System: ufs
System State: Default
Base Pointers: 32-bit
Peak Pointers: 32-bit
Other Software: None

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 4 1361 28.7 1365 28.6 1366 28.6 4 994 39.3 971 40.2 974 40.1
401.bzip2 4 1659 23.3 1659 23.3 1679 23.0 4 1591 24.3 1601 24.1 1592 24.2
403.gcc 4 1270 25.4 1273 25.3 1265 25.5 4 1174 27.4 1165 27.6 1166 27.6
429.mcf 4 952 38.3 952 38.3 951 38.4 4 947 38.5 946 38.6 944 38.6
445.gobmk 4 1207 34.8 1206 34.8 1218 34.5 4 1124 37.3 1119 37.5 1126 37.3
456.hmmer 4 1706 21.9 1706 21.9 1706 21.9 4 1698 22.0 1698 22.0 1701 21.9
458.sjeng 4 1978 24.5 1977 24.5 1977 24.5 4 1756 27.6 1756 27.6 1756 27.6
462.libquantum 4 696 119   697 119   694 119   4 686 121   686 121   687 121
464.h264ref 4 1901 46.6 1901 46.6 1901 46.6 4 1814 48.8 1794 49.3 1843 48.0
471.omnetpp 4 1531 16.3 1539 16.2 1539 16.2 4 1450 17.2 1449 17.2 1450 17.2
473.astar 4 1310 21.4 1320 21.3 1304 21.5 4 1235 22.7 1224 22.9 1236 22.7
483.xalancbmk 4 766 36.0 770 35.8 765 36.1 4 758 36.4 753 36.6 759 36.4

Compiler Invocation Notes

Sun Studio compiler patches are available at
   http://developers.sun.com/sunstudio/downloads/patches/ss12u1_patches.jsp

Submit Notes

The config file option 'submit' was used.  Processes were assigned to
specific processors using 'pbind' commands.  The list of processors to use
was provided in the 'BIND' variable, to generate the pbind commands.
(For details, please see the config file.)

Operating System Notes


Shell Environments:

    ulimit -s 131072 was used to limit the space consumed
    by the stack.(making more space available for the heap)

System Tunables:
(/etc/system parameters)

    tune_t_fsflushr=10
       Controls how many seconds elapse between runs of the
       page flush daemon, fsflush.
    autoup=600
       Causes pages older than the listed number of seconds to
       be written by fsflush.
    bufhwm=3000
       Memory byte limit for caching I/O buffers.
    segmap_percent=1
       Set maximum percent memory for file system cache.

Other System Settings:

    The webconsole service was turned off using svcadm disable webconsole.

Platform Notes


 Memory is 2-way interleaved by filling all slots with the same
 capacity DIMMs.

 This result is measured on a Fujitsu SPARC Enterprise M3000 Server.
 Note that the Fujitsu SPARC Enterprise M3000 and Sun SPARC Enterprise
 M3000 are electrically equivalent.

Base Compiler Invocation

C benchmarks:

 cc

C++ benchmarks:

 CC

Base Portability Flags

400.perlbench:  -DSPEC_CPU_SOLARIS_SPARC
403.gcc:  -DSPEC_CPU_SOLARIS
462.libquantum:  -DSPEC_CPU_SOLARIS
483.xalancbmk:  -DSPEC_CPU_SOLARIS

Base Optimization Flags

C benchmarks:

 -fast   -fma=fused   -xipo=2   -xpagesize=4M   -xarch=sparcfmaf   -xalias_level=std   -M /usr/lib/ld/map.bssalign   -ll2amm

C++ benchmarks:

 -library=stlport4   -fast   -fma=fused   -xipo=2   -xpagesize=4M   -xarch=sparcfmaf   -xdepend   -xalias_level=compatible   -M /usr/lib/ld/map.bssalign   -lfast

Base Other Flags

C benchmarks:

 -xjobs=2   -V   -#

C++ benchmarks:

 -xjobs=2   -verbose=diags,version

Peak Compiler Invocation

C benchmarks:

 cc

C++ benchmarks:

 CC

Peak Portability Flags

400.perlbench:  -DSPEC_CPU_SOLARIS_SPARC
403.gcc:  -DSPEC_CPU_SOLARIS
462.libquantum:  -DSPEC_CPU_SOLARIS
483.xalancbmk:  -DSPEC_CPU_SOLARIS

Peak Optimization Flags

C benchmarks:

400.perlbench:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xpagesize=4M   -M /usr/lib/ld/map.bssalign   -fma=fused   -xipo=1   -xalias_level=std   -xrestrict   -xprefetch=no%auto   -Xc   -lfast
401.bzip2:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xpagesize=4M   -fma=fused   -xalias_level=strong   -xunroll=2
403.gcc:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xpagesize=4M   -xipo=2   -xalias_level=std   -xprefetch=no   -xunroll=2   -ll2amm
429.mcf:  -fast   -xpagesize=4M   -fma=fused   -xipo=2   -xalias_level=std   -xunroll=4   -ll2amm
445.gobmk:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xpagesize=4M   -fma=fused   -xalias_level=std   -xrestrict   -xunroll=3
456.hmmer:  -fast   -xpagesize=4M   -fma=fused   -xipo=1   -xalias_level=std   -ll2amm
458.sjeng:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xpagesize=4M   -fma=fused   -xipo=2   -xprefetch=latx:0.5   -xunroll=2   -ll2amm
462.libquantum:  -fast   -xpagesize=4M   -fma=fused   -xipo=2   -xprefetch=no   -xalias_level=std   -xunroll=5   -lbsdmalloc
464.h264ref:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xpagesize=4M   -M /usr/lib/ld/map.bssalign   -fma=fused   -xipo=1   -xO4   -xalias_level=std   -xprefetch=no   -xunroll=5   -ll2amm

C++ benchmarks:

471.omnetpp:  -library=stlport4   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xpagesize=4M   -xalias_level=compatible   -fma=fused   -xipo=2   -xprefetch_level=2   -Qoption cg -Qlp-av=0   -xunroll=3   -lfast
473.astar:  -library=stlport4   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xpagesize=4M   -xalias_level=compatible   -M /usr/lib/ld/map.bssalign   -fma=fused   -xipo=2   -xprefetch=no%auto   -xdepend   -xunroll=2   -lfast   -lbsdmalloc
483.xalancbmk:  -library=stlport4   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xpagesize=4M   -xalias_level=compatible   -fma=fused   -xipo=2   -xprefetch_level=2   -xunroll=2   -lfast

Peak Other Flags

C benchmarks:

 -xjobs=2   -V   -#

C++ benchmarks:

 -xjobs=2   -verbose=diags,version

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Sun-Solaris-Studio12-12u1-and-gccfss4.2.r4.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Sun-Solaris-Studio12-12u1-and-gccfss4.2.r4.xml.
