| CPU2006 license: | 001176 | Test date: | Dec-2009 |
|---|---|---|---|
| Test sponsor: | Supermicro | Hardware Availability: | Aug-2009 |
| Tested by: | Supermicro | Software Availability: | Feb-2009 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E5502 |
| CPU Characteristics: | |
| CPU MHz: | 1867 |
| FPU: | Integrated |
| CPU(s) enabled: | 4 cores, 2 chips, 2 cores/chip |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 4 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 24 GB (6 x 4 GB DDR3-1333 RDIMM,CL9 running at 800MHz) |
| Disk Subsystem: | 1 x 750 GB SATA II, 7200 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SUSE Linux Enterprise Server 10 (x86_64) SP2, Kernel 2.6.16.60-0.21-smp |
| Compiler: | Intel C++ Compiler 11.0 for Linux Build 20090131 Package ID: l_cproc_p_11.0.080 |
| Auto Parallel: | No |
| File System: | ReiserFS |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V8.1 Binutils 2.18.50.0.7.20080502 |

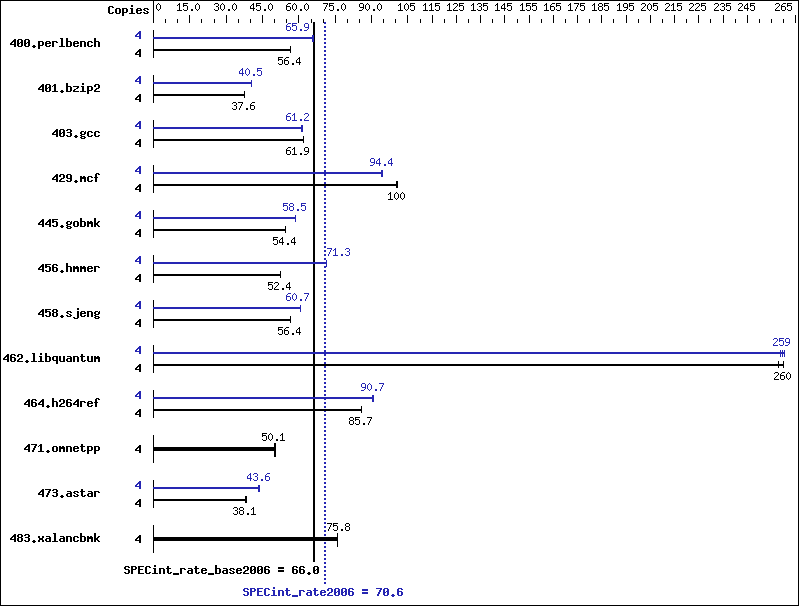

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 4 | 693 | 56.4 | 692 | 56.5 | 693 | 56.4 | 4 | 593 | 65.9 | 593 | 65.9 | 595 | 65.7 |
| 401.bzip2 | 4 | 1024 | 37.7 | 1026 | 37.6 | 1025 | 37.6 | 4 | 954 | 40.5 | 954 | 40.5 | 955 | 40.4 |
| 403.gcc | 4 | 521 | 61.8 | 519 | 62.1 | 520 | 61.9 | 4 | 527 | 61.1 | 525 | 61.3 | 526 | 61.2 |
| 429.mcf | 4 | 363 | 100 | 363 | 100 | 363 | 101 | 4 | 386 | 94.4 | 386 | 94.5 | 387 | 94.2 |
| 445.gobmk | 4 | 771 | 54.4 | 771 | 54.4 | 772 | 54.4 | 4 | 717 | 58.5 | 717 | 58.5 | 717 | 58.5 |
| 456.hmmer | 4 | 712 | 52.4 | 712 | 52.4 | 712 | 52.4 | 4 | 523 | 71.3 | 523 | 71.3 | 523 | 71.3 |
| 458.sjeng | 4 | 859 | 56.4 | 858 | 56.4 | 859 | 56.4 | 4 | 797 | 60.7 | 796 | 60.8 | 797 | 60.7 |
| 462.libquantum | 4 | 319 | 260 | 321 | 258 | 319 | 260 | 4 | 318 | 260 | 320 | 259 | 319 | 259 |
| 464.h264ref | 4 | 1032 | 85.8 | 1033 | 85.7 | 1033 | 85.7 | 4 | 976 | 90.7 | 976 | 90.7 | 977 | 90.6 |
| 471.omnetpp | 4 | 499 | 50.1 | 501 | 49.9 | 499 | 50.1 | 4 | 499 | 50.1 | 501 | 49.9 | 499 | 50.1 |
| 473.astar | 4 | 739 | 38.0 | 736 | 38.1 | 735 | 38.2 | 4 | 643 | 43.6 | 645 | 43.5 | 644 | 43.6 |
| 483.xalancbmk | 4 | 364 | 75.8 | 364 | 75.9 | 364 | 75.8 | 4 | 364 | 75.8 | 364 | 75.9 | 364 | 75.8 |
Submit Notes
The config file option 'submit' was used. numactl was used to bind copies to the cores
Platform Notes
Default BIOS Settings
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -static -inline-calloc -opt-malloc-options=3 -opt-prefetch |
C++ benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L/spec/cpu2006.1.1/lib -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc | |
| 401.bzip2: | /opt/intel/Compiler/11.0/080/bin/intel64/icc |
| 456.hmmer: | /opt/intel/Compiler/11.0/080/bin/intel64/icc |
| 458.sjeng: | /opt/intel/Compiler/11.0/080/bin/intel64/icc |
C++ benchmarks (except as noted below):
| icpc | |
| 473.astar: | /opt/intel/Compiler/11.0/080/bin/intel64/icpc |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 473.astar: | -DSPEC_CPU_LP64 |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
C++ benchmarks:
| 471.omnetpp: | basepeak = yes |
| 473.astar: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=routine -auto-ilp32 -Wl,-z,muldefs -L/spec/cpu2006.1.1/lib -lsmartheap64 |
| 483.xalancbmk: | basepeak = yes |
