| CPU2006 license: | 97 | Test date: | Nov-2009 |
|---|---|---|---|
| Test sponsor: | Acer Incorporated | Hardware Availability: | Dec-2009 |
| Tested by: | Acer Incorporated | Software Availability: | Nov-2008 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon X3380 |
| CPU Characteristics: | 1333 MHz system bus |
| CPU MHz: | 3167 |
| FPU: | Integrated |
| CPU(s) enabled: | 4 cores, 1 chip, 4 cores/chip |
| CPU(s) orderable: | 1 chip |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 12 MB I+D on chip per chip, 6 MB shared / 2 cores |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 8 GB (4 x 2048 MB ECC Unbuffered DDR2-800 CL5) |
| Disk Subsystem: | 1 x 640 GB 7200RPM SATA HDD |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SUSE Linux Enterprise Server 11 (x86_64) Kernel 2.6.27.19-5 |
| Compiler: | Intel C++ Compiler 11.0 for Linux Build 20080930 Package ID: l_cproc_p_11.0.066 |
| Auto Parallel: | Yes |
| File System: | ReiserFS |
| System State: | Multi-user, level 3 |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V8.1 Binutils 2.18.50.0.7.20080502 |

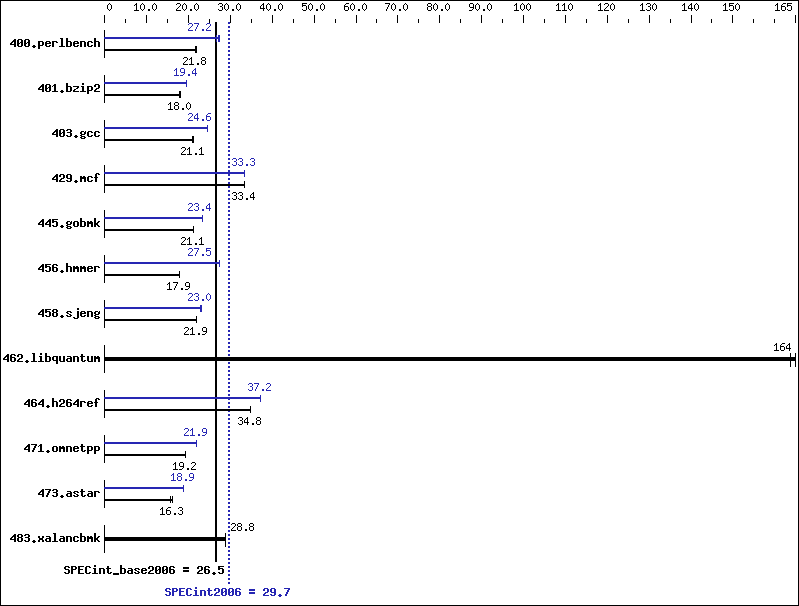

Results Table
| Benchmark | Base | Peak | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
| 400.perlbench | 448 | 21.8 | 448 | 21.8 | 450 | 21.7 | 359 | 27.2 | 365 | 26.7 | 357 | 27.4 |
| 401.bzip2 | 538 | 17.9 | 535 | 18.0 | 537 | 18.0 | 497 | 19.4 | 496 | 19.4 | 497 | 19.4 |
| 403.gcc | 380 | 21.2 | 381 | 21.1 | 382 | 21.1 | 328 | 24.5 | 328 | 24.6 | 328 | 24.6 |
| 429.mcf | 274 | 33.3 | 273 | 33.4 | 273 | 33.4 | 274 | 33.3 | 274 | 33.3 | 273 | 33.3 |
| 445.gobmk | 496 | 21.1 | 496 | 21.1 | 496 | 21.1 | 448 | 23.4 | 449 | 23.4 | 448 | 23.4 |
| 456.hmmer | 521 | 17.9 | 521 | 17.9 | 521 | 17.9 | 339 | 27.5 | 340 | 27.4 | 340 | 27.5 |
| 458.sjeng | 552 | 21.9 | 552 | 21.9 | 551 | 22.0 | 526 | 23.0 | 527 | 23.0 | 526 | 23.0 |
| 462.libquantum | 127 | 164 | 126 | 165 | 127 | 164 | 127 | 164 | 126 | 165 | 127 | 164 |
| 464.h264ref | 636 | 34.8 | 637 | 34.8 | 636 | 34.8 | 595 | 37.2 | 594 | 37.2 | 596 | 37.2 |
| 471.omnetpp | 325 | 19.2 | 325 | 19.2 | 325 | 19.2 | 285 | 21.9 | 286 | 21.9 | 285 | 21.9 |
| 473.astar | 431 | 16.3 | 432 | 16.3 | 445 | 15.8 | 372 | 18.9 | 373 | 18.8 | 372 | 18.9 |
| 483.xalancbmk | 239 | 28.9 | 239 | 28.8 | 240 | 28.8 | 239 | 28.9 | 239 | 28.8 | 240 | 28.8 |
Operating System Notes
'ulimit -s unlimited' was set for stacksize unlimited
General Notes
OMP_NUM_THREADS set to number of processors KMP_AFFINITY set to "physical,0" This result was measured on the Gateway GT110 F1. The Acer AT110 F1 and Gateway GT110 F1 are electronically equivalent.
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xSSE4.1 -ipo -O3 -no-prec-div -static -parallel -par-runtime-control -opt-prefetch |
C++ benchmarks:
| -xSSE4.1 -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L/spec/cpu2006.1.1/lib -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc | |
| 401.bzip2: | /opt/intel/Compiler/11.0/066/bin/intel64/icc |
| 456.hmmer: | /opt/intel/Compiler/11.0/066/bin/intel64/icc |
C++ benchmarks:
| icpc |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -ansi-alias -opt-prefetch |
| 401.bzip2: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -auto-ilp32 -opt-prefetch -ansi-alias |
| 403.gcc: | -xSSE4.1 -ipo -O3 -no-prec-div -static -inline-calloc -opt-malloc-options=3 |
| 429.mcf: | -xSSE4.1 -ipo -O3 -no-prec-div -static -opt-prefetch |
| 445.gobmk: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -O2 -ipo -no-prec-div -ansi-alias |
| 456.hmmer: | -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll2 -ansi-alias -auto-ilp32 |
| 458.sjeng: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll4 |
| 462.libquantum: | basepeak = yes |
| 464.h264ref: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll2 -ansi-alias |
C++ benchmarks:
| 471.omnetpp: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/spec/cpu2006.1.1/lib -lsmartheap |
| 473.astar: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -ansi-alias -opt-ra-region-strategy=routine -Wl,-z,muldefs -L/spec/cpu2006.1.1/lib -lsmartheap |
| 483.xalancbmk: | basepeak = yes |
