| CPU2006 license: | 97 | Test date: | Nov-2009 |
|---|---|---|---|
| Test sponsor: | Acer Incorporated | Hardware Availability: | Dec-2009 |
| Tested by: | Acer Incorporated | Software Availability: | Nov-2008 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E3110 |
| CPU Characteristics: | 1333 MHz system bus |
| CPU MHz: | 3000 |
| FPU: | Integrated |
| CPU(s) enabled: | 2 cores, 1 chip, 2 cores/chip |
| CPU(s) orderable: | 1 chip |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 6 MB I+D on chip per chip |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 8 GB (4 x 2048 MB ECC Unbuffered DDR2-800 CL5) |
| Disk Subsystem: | 1 x 640 GB 7200RPM SATA HDD |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SUSE Linux Enterprise Server 11 (x86_64) Kernel 2.6.27.19-5 |
| Compiler: | Intel C++ Compiler 11.0 for Linux Build 20080930 Package ID: l_cproc_p_11.0.066 |
| Auto Parallel: | Yes |
| File System: | ReiserFS |
| System State: | Multi-user, level 3 |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V8.1 Binutils 2.18.50.0.7.20080502 |

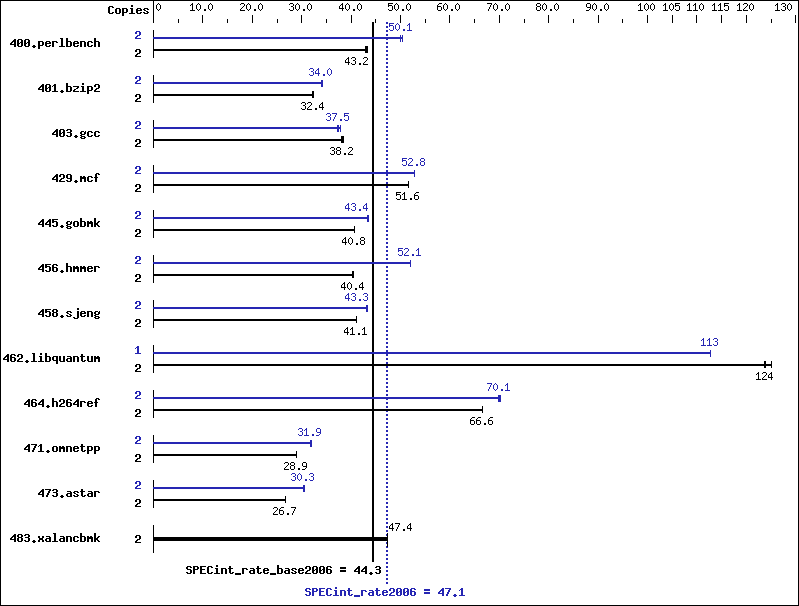

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 2 | 451 | 43.3 | 453 | 43.2 | 455 | 43.0 | 2 | 390 | 50.1 | 391 | 50.0 | 388 | 50.4 |
| 401.bzip2 | 2 | 596 | 32.4 | 596 | 32.4 | 598 | 32.3 | 2 | 568 | 34.0 | 569 | 33.9 | 566 | 34.1 |
| 403.gcc | 2 | 424 | 38.0 | 421 | 38.2 | 419 | 38.5 | 2 | 429 | 37.5 | 426 | 37.8 | 432 | 37.3 |
| 429.mcf | 2 | 354 | 51.6 | 353 | 51.6 | 354 | 51.6 | 2 | 346 | 52.8 | 345 | 52.8 | 346 | 52.7 |
| 445.gobmk | 2 | 514 | 40.8 | 517 | 40.6 | 515 | 40.8 | 2 | 483 | 43.5 | 484 | 43.4 | 483 | 43.4 |
| 456.hmmer | 2 | 462 | 40.4 | 462 | 40.4 | 462 | 40.4 | 2 | 358 | 52.1 | 358 | 52.1 | 358 | 52.1 |
| 458.sjeng | 2 | 589 | 41.1 | 590 | 41.0 | 589 | 41.1 | 2 | 561 | 43.1 | 559 | 43.3 | 559 | 43.3 |
| 462.libquantum | 2 | 334 | 124 | 331 | 125 | 335 | 124 | 1 | 184 | 113 | 184 | 113 | 184 | 113 |
| 464.h264ref | 2 | 665 | 66.6 | 664 | 66.6 | 665 | 66.6 | 2 | 630 | 70.3 | 631 | 70.1 | 633 | 69.9 |
| 471.omnetpp | 2 | 433 | 28.9 | 432 | 28.9 | 433 | 28.8 | 2 | 393 | 31.8 | 392 | 31.9 | 392 | 31.9 |
| 473.astar | 2 | 525 | 26.7 | 525 | 26.7 | 525 | 26.7 | 2 | 463 | 30.3 | 461 | 30.5 | 463 | 30.3 |
| 483.xalancbmk | 2 | 291 | 47.4 | 291 | 47.5 | 291 | 47.4 | 2 | 291 | 47.4 | 291 | 47.5 | 291 | 47.4 |
Submit Notes
The config file option 'submit' was used.
Operating System Notes
'ulimit -s unlimited' was set for stacksize unlimited
General Notes
taskset was used to bind processes to cores except for 462.libquantum peak OMP_NUM_THREADS set to number of processors KMP_AFFINITY set to "physical,0" KMP_STACKSIZE set to 64M This result was measured on the Gateway GT110 F1. The Acer AT110 F1 and Gateway GT110 F1 are electronically equivalent.
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xSSE4.1 -ipo -O3 -no-prec-div -static -inline-calloc -opt-malloc-options=3 -opt-prefetch |
C++ benchmarks:
| -xSSE4.1 -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L/spec/cpu2006.1.1/lib -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc | |
| 401.bzip2: | /opt/intel/Compiler/11.0/066/bin/intel64/icc |
| 456.hmmer: | /opt/intel/Compiler/11.0/066/bin/intel64/icc |
C++ benchmarks:
| icpc |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -ansi-alias -opt-prefetch |
| 401.bzip2: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -opt-prefetch -ansi-alias |
| 403.gcc: | -xSSE4.1 -ipo -O3 -no-prec-div -static -inline-calloc -opt-malloc-options=3 |
| 429.mcf: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -opt-prefetch |
| 445.gobmk: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -O2 -ipo -no-prec-div -ansi-alias |
| 456.hmmer: | -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll2 -ansi-alias |
| 458.sjeng: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll4 |
| 462.libquantum: | -xSSE4.1 -ipo -O3 -no-prec-div -static -opt-malloc-options=3 -parallel -par-runtime-control -opt-prefetch |
| 464.h264ref: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll2 -ansi-alias |
C++ benchmarks:
| 471.omnetpp: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/spec/cpu2006.1.1/lib -lsmartheap |
| 473.astar: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -ansi-alias -opt-ra-region-strategy=routine -Wl,-z,muldefs -L/spec/cpu2006.1.1/lib -lsmartheap |
| 483.xalancbmk: | basepeak = yes |
