| CPU2006 license: | 9016 | Test date: | Oct-2009 |
|---|---|---|---|
| Test sponsor: | ASUSTeK Computer Inc. | Hardware Availability: | Sep-2009 |
| Tested by: | ASUSTeK Computer Inc. | Software Availability: | Jul-2009 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon X3470 |
| CPU Characteristics: | Intel Turbo Boost Technology up to 3.6 GHz |
| CPU MHz: | 2933 |
| FPU: | Integrated |
| CPU(s) enabled: | 4 cores, 1 chip, 4 cores/chip, 2 threads/core |
| CPU(s) orderable: | 1 chip |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 8 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 16 GB (4 x 4 GB PC3-10600R, CL=9) |
| Disk Subsystem: | HITACHI HDT722525DLA380 250 GB SATAII, 7200RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SUSE Linux Enterprise Server 11 (x86_64), Kernel 2.6.27.19-5-default |
| Compiler: | Intel C++ Professional Compiler for IA32 and Intel 64, Version 11.1 Build 20090511 Package ID: l_cproc_p_11.1.040 |
| Auto Parallel: | No |
| File System: | ReiserFS |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V8.1 Binutils 2.18.50.0.7.20080502 |

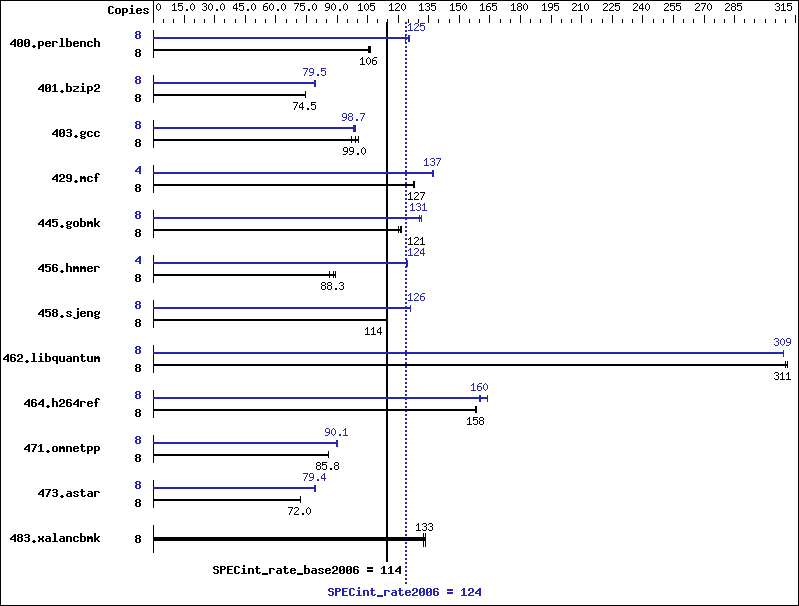

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 8 | 739 | 106 | 740 | 106 | 735 | 106 | 8 | 625 | 125 | 633 | 124 | 623 | 125 |
| 401.bzip2 | 8 | 1036 | 74.5 | 1037 | 74.5 | 1037 | 74.4 | 8 | 971 | 79.5 | 971 | 79.5 | 975 | 79.2 |
| 403.gcc | 8 | 640 | 101 | 651 | 99.0 | 664 | 97.0 | 8 | 652 | 98.7 | 658 | 97.9 | 650 | 99.2 |
| 429.mcf | 8 | 573 | 127 | 572 | 127 | 570 | 128 | 4 | 266 | 137 | 266 | 137 | 266 | 137 |
| 445.gobmk | 8 | 699 | 120 | 690 | 122 | 694 | 121 | 8 | 643 | 131 | 643 | 130 | 637 | 132 |
| 456.hmmer | 8 | 838 | 89.1 | 864 | 86.4 | 845 | 88.3 | 4 | 300 | 124 | 300 | 124 | 300 | 124 |
| 458.sjeng | 8 | 847 | 114 | 847 | 114 | 846 | 114 | 8 | 768 | 126 | 767 | 126 | 767 | 126 |
| 462.libquantum | 8 | 533 | 311 | 533 | 311 | 534 | 310 | 8 | 537 | 309 | 537 | 309 | 536 | 309 |
| 464.h264ref | 8 | 1118 | 158 | 1119 | 158 | 1120 | 158 | 8 | 1106 | 160 | 1105 | 160 | 1080 | 164 |
| 471.omnetpp | 8 | 583 | 85.8 | 583 | 85.8 | 584 | 85.7 | 8 | 555 | 90.1 | 555 | 90.1 | 556 | 90.0 |
| 473.astar | 8 | 777 | 72.2 | 780 | 72.0 | 781 | 71.9 | 8 | 707 | 79.4 | 707 | 79.4 | 709 | 79.2 |
| 483.xalancbmk | 8 | 414 | 133 | 413 | 134 | 417 | 132 | 8 | 414 | 133 | 413 | 134 | 417 | 132 |
Submit Notes
The config file option 'submit' was used. numactl was used to bind copies to the cores
Component Notes
Tested system case compliance with Intel ATX or SSI spec 390W or higher ATX Power Supply, 350W or highter SSI Server Power Supply System was configured with ASPEED AST2050 VGA (on board VGA)
General Notes
The ASUS TS300-E6 (Intel Xeon X3470, 2.93 GHz) and the ASUS RS300-E6 (Intel Xeon X3470, 2.93 GHz) models are electronically equivalent. The results have been measured on a ASUS RS300-E6 (Intel Xeon X3470, 2.93 GHz) model.
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -static -inline-calloc -opt-malloc-options=3 -opt-prefetch |
C++ benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L/spec/cpu2006.1.1/lib -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc -m32 | |
| 401.bzip2: | icc -m64 |
| 456.hmmer: | icc -m64 |
| 458.sjeng: | icc -m64 |
C++ benchmarks (except as noted below):
| icpc -m32 | |
| 473.astar: | icpc -m64 |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 473.astar: | -DSPEC_CPU_LP64 |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
C++ benchmarks:
| 471.omnetpp: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/spec/cpu2006.1.1/lib -lsmartheap |
| 473.astar: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=routine -auto-ilp32 -Wl,-z,muldefs -L/spec/cpu2006.1.1/lib -lsmartheap64 |
| 483.xalancbmk: | basepeak = yes |
