| CPU2006 license: | 55 | Test date: | Oct-2009 |
|---|---|---|---|
| Test sponsor: | Dell Inc. | Hardware Availability: | Sep-2009 |
| Tested by: | Dell Inc. | Software Availability: | Jul-2009 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon X3430 |
| CPU Characteristics: | Intel Turbo Boost Technology up to 2.80 GHz |
| CPU MHz: | 2400 |
| FPU: | Integrated |
| CPU(s) enabled: | 4 cores, 1 chip, 4 cores/chip, 2 threads/core |
| CPU(s) orderable: | 1 chip |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 8 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 8 GB (4 x 2 GB DDR3-1333 DR RDIMM) |
| Disk Subsystem: | 1 x 160 GB 7200 RPM SATA |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Red Hat Enterprise Linux Server release 5.3, Kernel 2.6.18-128.el5 |
| Compiler: | Intel C++ Compiler Professional Edition 11.1 for Linux Build 20090511 Package ID: l_cproc_p_11.1.040 |
| Auto Parallel: | No |
| File System: | ReiserFS |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V8.1 Binutils 2.18.50.0.7.20080502 |

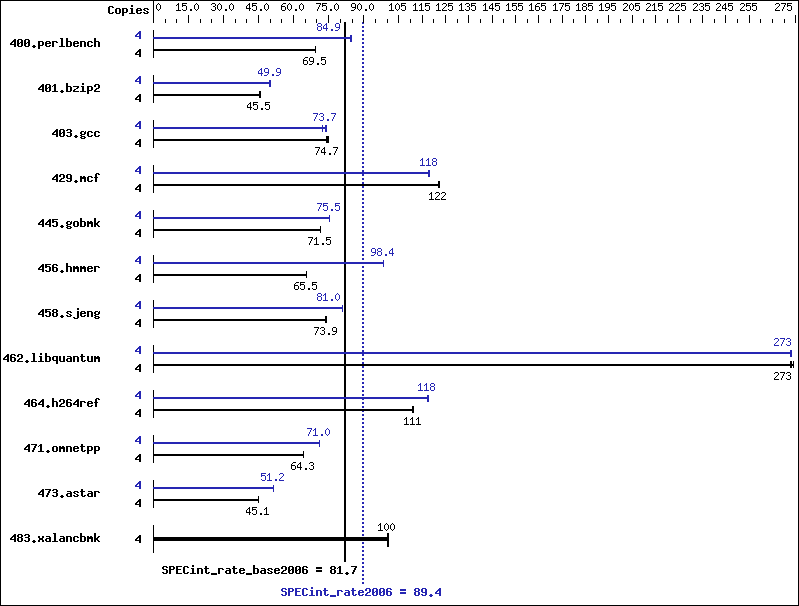

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 4 | 564 | 69.3 | 562 | 69.5 | 562 | 69.6 | 4 | 463 | 84.4 | 460 | 84.9 | 460 | 84.9 |
| 401.bzip2 | 4 | 848 | 45.5 | 852 | 45.3 | 845 | 45.7 | 4 | 775 | 49.8 | 772 | 50.0 | 774 | 49.9 |
| 403.gcc | 4 | 431 | 74.7 | 430 | 74.8 | 435 | 74.1 | 4 | 434 | 74.2 | 446 | 72.2 | 437 | 73.7 |
| 429.mcf | 4 | 299 | 122 | 299 | 122 | 298 | 122 | 4 | 310 | 118 | 309 | 118 | 308 | 118 |
| 445.gobmk | 4 | 587 | 71.5 | 586 | 71.6 | 587 | 71.5 | 4 | 557 | 75.3 | 556 | 75.5 | 556 | 75.5 |
| 456.hmmer | 4 | 570 | 65.4 | 570 | 65.5 | 570 | 65.5 | 4 | 379 | 98.4 | 379 | 98.4 | 379 | 98.5 |
| 458.sjeng | 4 | 655 | 73.9 | 655 | 73.9 | 655 | 73.8 | 4 | 599 | 80.8 | 597 | 81.0 | 597 | 81.0 |
| 462.libquantum | 4 | 304 | 273 | 304 | 273 | 302 | 274 | 4 | 304 | 273 | 304 | 273 | 304 | 273 |
| 464.h264ref | 4 | 798 | 111 | 795 | 111 | 795 | 111 | 4 | 755 | 117 | 753 | 118 | 753 | 118 |
| 471.omnetpp | 4 | 389 | 64.3 | 389 | 64.3 | 389 | 64.2 | 4 | 352 | 71.0 | 352 | 71.0 | 352 | 71.0 |
| 473.astar | 4 | 622 | 45.1 | 623 | 45.1 | 623 | 45.1 | 4 | 548 | 51.2 | 548 | 51.2 | 548 | 51.3 |
| 483.xalancbmk | 4 | 275 | 100 | 275 | 100 | 275 | 100 | 4 | 275 | 100 | 275 | 100 | 275 | 100 |
Submit Notes
The config file option 'submit' was used. numactl was used to bind copies to the cores
Operating System Notes
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run
Platform Notes
BIOS Settings: Power Management = Maximum Performance (Default = Active Power Controller)
General Notes
The Dell PowerEdge T310 and the Bull NovaScale T820 F2 models are electronically equivalent. This result was measured on a Dell PowerEdge T310.
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -static -inline-calloc -opt-malloc-options=3 -opt-prefetch |
C++ benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L/spec/cpu2006.1.1/lib -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc -m32 | |
| 401.bzip2: | icc -m64 |
| 456.hmmer: | icc -m64 |
| 458.sjeng: | icc -m64 |
C++ benchmarks (except as noted below):
| icpc -m32 | |
| 473.astar: | icpc -m64 |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 473.astar: | -DSPEC_CPU_LP64 |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
C++ benchmarks:
| 471.omnetpp: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/spec/cpu2006.1.1/lib -lsmartheap |
| 473.astar: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=routine -auto-ilp32 -Wl,-z,muldefs -L/spec/cpu2006.1.1/lib -lsmartheap64 |
| 483.xalancbmk: | basepeak = yes |
