CPU2006 license: | 55 | Test date: | Sep-2009 |
---|---|---|---|
Test sponsor: | Dell Inc. | Hardware Availability: | Aug-2009 |
Tested by: | Dell Inc. | Software Availability: | Jul-2009 |
Hardware | |
---|---|
CPU Name: | Intel Xeon X3460 |
CPU Characteristics: | Intel Turbo Boost Technology up to 3.46 GHz |
CPU MHz: | 2800 |
FPU: | Integrated |
CPU(s) enabled: | 4 cores, 1 chip, 4 cores/chip, 2 threads/core |
CPU(s) orderable: | 1 chip |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 256 KB I+D on chip per core |
L3 Cache: | 8 MB I+D on chip per chip |
Other Cache: | None |
Memory: | 8 GB (4 x 2 GB DDR3-1333 DR UDIMM) |
Disk Subsystem: | 1 x 160 GB 7200 RPM SATA |
Other Hardware: | None |
Software | |
---|---|
Operating System: | Red Hat Enterprise Linux Server release 5.3, Kernel 2.6.18-128.el5 |
Compiler: | Intel Fortran Compiler and Intel C++ Compiler Professional Edition 11.1 For Linux Build 20090511 Package ID: l_cproc_p_11.1.040, l_cprof_p_11.1.040 |
Auto Parallel: | Yes |
File System: | ReiserFS |
System State: | Run level 3 (multi-user) |
Base Pointers: | 64-bit |
Peak Pointers: | 64-bit |
Other Software: | Binutils 2.18.50.0.7.20080502 |

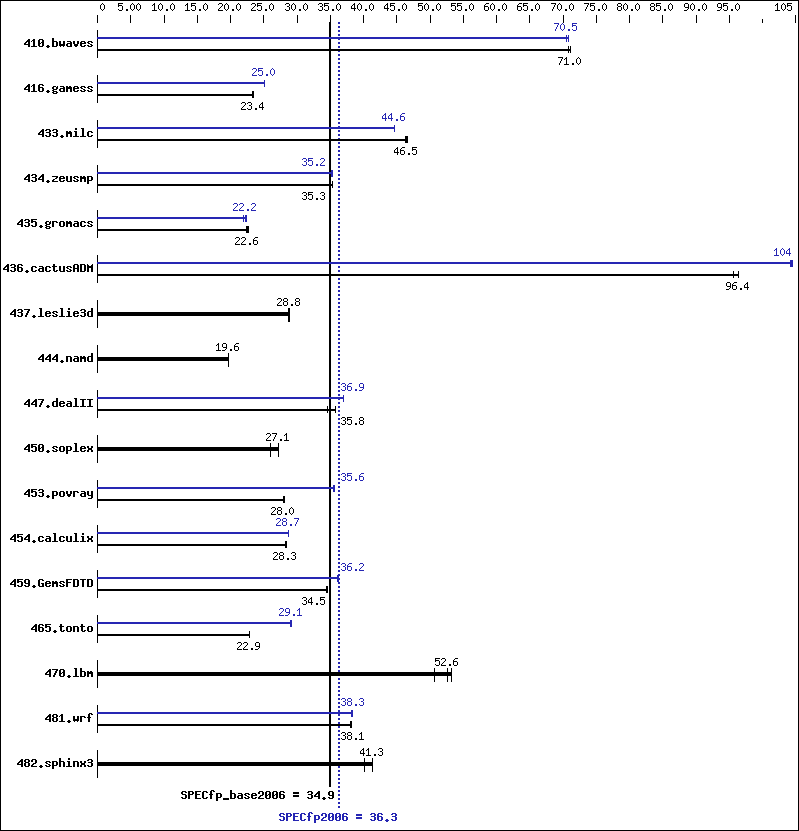

Benchmark | Base | Peak | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
410.bwaves | 191 | 71.1 | 191 | 71.0 | 192 | 70.8 | 193 | 70.5 | 193 | 70.5 | 192 | 70.8 |
416.gamess | 838 | 23.4 | 839 | 23.4 | 836 | 23.4 | 782 | 25.0 | 782 | 25.0 | 781 | 25.1 |
433.milc | 197 | 46.6 | 197 | 46.5 | 198 | 46.3 | 206 | 44.7 | 206 | 44.6 | 206 | 44.6 |
434.zeusmp | 258 | 35.3 | 258 | 35.3 | 258 | 35.3 | 258 | 35.2 | 258 | 35.2 | 258 | 35.2 |
435.gromacs | 314 | 22.7 | 316 | 22.6 | 318 | 22.4 | 322 | 22.2 | 320 | 22.3 | 325 | 22.0 |
436.cactusADM | 125 | 95.6 | 124 | 96.4 | 124 | 96.4 | 114 | 104 | 114 | 105 | 115 | 104 |
437.leslie3d | 327 | 28.7 | 326 | 28.8 | 325 | 28.9 | 327 | 28.7 | 326 | 28.8 | 325 | 28.9 |
444.namd | 409 | 19.6 | 409 | 19.6 | 409 | 19.6 | 409 | 19.6 | 409 | 19.6 | 409 | 19.6 |
447.dealII | 319 | 35.8 | 331 | 34.6 | 319 | 35.8 | 310 | 36.9 | 310 | 36.9 | 310 | 36.9 |
450.soplex | 307 | 27.2 | 320 | 26.0 | 308 | 27.1 | 307 | 27.2 | 320 | 26.0 | 308 | 27.1 |
453.povray | 190 | 28.0 | 190 | 28.0 | 190 | 28.0 | 149 | 35.7 | 149 | 35.6 | 150 | 35.4 |
454.calculix | 291 | 28.3 | 293 | 28.2 | 291 | 28.3 | 287 | 28.7 | 287 | 28.7 | 287 | 28.7 |
459.GemsFDTD | 308 | 34.5 | 307 | 34.5 | 308 | 34.5 | 293 | 36.2 | 293 | 36.2 | 294 | 36.1 |
465.tonto | 430 | 22.9 | 430 | 22.9 | 432 | 22.8 | 339 | 29.1 | 338 | 29.1 | 338 | 29.1 |
470.lbm | 258 | 53.2 | 271 | 50.7 | 261 | 52.6 | 258 | 53.2 | 271 | 50.7 | 261 | 52.6 |
481.wrf | 293 | 38.1 | 293 | 38.1 | 293 | 38.2 | 292 | 38.3 | 292 | 38.2 | 291 | 38.3 |
482.sphinx3 | 485 | 40.2 | 472 | 41.3 | 471 | 41.4 | 485 | 40.2 | 472 | 41.3 | 471 | 41.4 |
The config file option 'submit' was used.
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run
BIOS Settings: Power Management = Maximum Performance (Default = Active Power Controller)
OMP_NUM_THREADS set to number of cores KMP_AFFINITY set to granularity=fine,scatter The Dell PowerEdge T110 and the Bull NovaScale T810 F2 models are electronically equivalent. This result was measured on a Dell PowerEdge T110.
icc -m64 |
icpc -m64 |
ifort -m64 |
icc -m64 ifort -m64 |
410.bwaves: | -DSPEC_CPU_LP64 |
416.gamess: | -DSPEC_CPU_LP64 |
433.milc: | -DSPEC_CPU_LP64 |
434.zeusmp: | -DSPEC_CPU_LP64 |
435.gromacs: | -DSPEC_CPU_LP64 -nofor_main |
436.cactusADM: | -DSPEC_CPU_LP64 -nofor_main |
437.leslie3d: | -DSPEC_CPU_LP64 |
444.namd: | -DSPEC_CPU_LP64 |
447.dealII: | -DSPEC_CPU_LP64 |
450.soplex: | -DSPEC_CPU_LP64 |
453.povray: | -DSPEC_CPU_LP64 |
454.calculix: | -DSPEC_CPU_LP64 -nofor_main |
459.GemsFDTD: | -DSPEC_CPU_LP64 |
465.tonto: | -DSPEC_CPU_LP64 |
470.lbm: | -DSPEC_CPU_LP64 |
481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX |
482.sphinx3: | -DSPEC_CPU_LP64 |
-xSSE4.2 -ipo -O3 -no-prec-div -static -opt-prefetch |
-xSSE4.2 -ipo -O3 -no-prec-div -static -opt-prefetch |
-xSSE4.2 -ipo -O3 -no-prec-div -static -opt-prefetch -parallel |
-xSSE4.2 -ipo -O3 -no-prec-div -static -opt-prefetch -parallel |
icc -m64 |
icpc -m64 |
ifort -m64 |
icc -m64 ifort -m64 |
Same as Base Portability Flags
433.milc: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -fno-alias |
470.lbm: | basepeak = yes |
482.sphinx3: | basepeak = yes |
444.namd: | basepeak = yes |
447.dealII: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll2 -ansi-alias -scalar-rep- -opt-prefetch |
450.soplex: | basepeak = yes |
453.povray: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll4 -ansi-alias |
410.bwaves: | -xSSE4.2 -ipo -O3 -no-prec-div -static -opt-prefetch -parallel |
416.gamess: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll2 -Ob0 -ansi-alias -scalar-rep- |
434.zeusmp: | Same as 410.bwaves |
437.leslie3d: | basepeak = yes |
459.GemsFDTD: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll2 -Ob0 -opt-prefetch -parallel |
465.tonto: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll4 -auto |
435.gromacs: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -opt-prefetch -auto-ilp32 |
436.cactusADM: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll2 -opt-prefetch -parallel -auto-ilp32 |
454.calculix: | -xSSE4.2 -ipo -O3 -no-prec-div -static -auto-ilp32 |
481.wrf: | -xSSE4.2 -ipo -O3 -no-prec-div -static -opt-prefetch -parallel -auto-ilp32 |
