| CPU2006 license: | 9001 | Test date: | Nov-2009 |
|---|---|---|---|
| Test sponsor: | Itautec | Hardware Availability: | Mar-2009 |
| Tested by: | Itautec | Software Availability: | Feb-2009 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon X5560 |
| CPU Characteristics: | Intel Turbo Boost Technology up to 3.20 GHz |
| CPU MHz: | 2800 |
| FPU: | Integrated |
| CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip, 2 threads/core |
| CPU(s) orderable: | 1, 2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 8 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 24 GB (6 x 4GB DDR3-1333, CL 9, ECC) |
| Disk Subsystem: | 1 x 160 GB SATA-2, 7200RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SUSE Linux Enterprise Server 10 (x86_64) SP2 with patch Linux kernel 20090119, Kernel 2.6.16.60-0.34-smp |
| Compiler: | Intel C++ Compiler 11.0 for Linux Build 20090131 Package ID: l_cproc_p_11.0.081 |
| Auto Parallel: | No |
| File System: | ReiserFS |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V8.1 Binutils 2.18.50.0.7.20080502 |

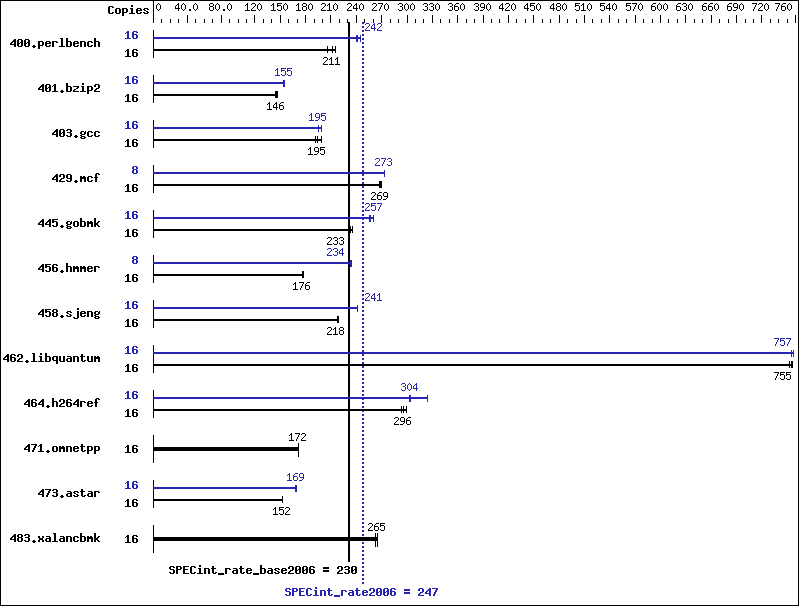

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 16 | 758 | 206 | 725 | 216 | 740 | 211 | 16 | 652 | 240 | 637 | 245 | 646 | 242 |
| 401.bzip2 | 16 | 1052 | 147 | 1070 | 144 | 1060 | 146 | 16 | 994 | 155 | 996 | 155 | 1003 | 154 |
| 403.gcc | 16 | 662 | 195 | 648 | 199 | 670 | 192 | 16 | 659 | 195 | 647 | 199 | 661 | 195 |
| 429.mcf | 16 | 547 | 267 | 540 | 270 | 543 | 269 | 8 | 267 | 273 | 266 | 274 | 267 | 273 |
| 445.gobmk | 16 | 721 | 233 | 712 | 236 | 724 | 232 | 16 | 645 | 260 | 653 | 257 | 656 | 256 |
| 456.hmmer | 16 | 841 | 178 | 848 | 176 | 847 | 176 | 8 | 319 | 234 | 320 | 234 | 319 | 234 |
| 458.sjeng | 16 | 886 | 218 | 887 | 218 | 884 | 219 | 16 | 803 | 241 | 803 | 241 | 803 | 241 |
| 462.libquantum | 16 | 439 | 755 | 438 | 757 | 440 | 753 | 16 | 439 | 755 | 438 | 758 | 438 | 757 |
| 464.h264ref | 16 | 1182 | 300 | 1195 | 296 | 1206 | 294 | 16 | 1094 | 324 | 1164 | 304 | 1171 | 302 |
| 471.omnetpp | 16 | 583 | 171 | 582 | 172 | 583 | 172 | 16 | 583 | 171 | 582 | 172 | 583 | 172 |
| 473.astar | 16 | 737 | 152 | 735 | 153 | 737 | 152 | 16 | 666 | 169 | 664 | 169 | 665 | 169 |
| 483.xalancbmk | 16 | 417 | 265 | 417 | 265 | 420 | 263 | 16 | 417 | 265 | 417 | 265 | 420 | 263 |
Submit Notes
The config file option 'submit' was used. numactl was used to bind copies to the cores
General Notes
This result was measured on the Servidor Itautec MX223. The Servidor Itautec MX203 and the Servidor Itautec MX223 are electronically equivalent. 'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run.
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -static -inline-calloc -opt-malloc-options=3 -opt-prefetch |
C++ benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L/home/richard/sh/SmartHeap_8.1/lib -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc | |
| 401.bzip2: | /opt/intel/Compiler/11.0/081/bin/intel64/icc |
| 456.hmmer: | /opt/intel/Compiler/11.0/081/bin/intel64/icc |
| 458.sjeng: | /opt/intel/Compiler/11.0/081/bin/intel64/icc |
C++ benchmarks (except as noted below):
| icpc | |
| 473.astar: | /opt/intel/Compiler/11.0/081/bin/intel64/icpc |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 473.astar: | -DSPEC_CPU_LP64 |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
C++ benchmarks:
| 471.omnetpp: | basepeak = yes |
| 473.astar: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=routine -auto-ilp32 -Wl,-z,muldefs -L/home/richard/sh/SmartHeap_8.1/lib -lsmartheap64 |
| 483.xalancbmk: | basepeak = yes |
