| CPU2006 license: | 9001 | Test date: | Oct-2009 |
|---|---|---|---|
| Test sponsor: | Itautec | Hardware Availability: | Sep-2009 |
| Tested by: | Itautec | Software Availability: | Feb-2009 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E5504 |
| CPU Characteristics: | |
| CPU MHz: | 2000 |
| FPU: | Integrated |
| CPU(s) enabled: | 4 cores, 1 chip, 4 cores/chip |
| CPU(s) orderable: | 1, 2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 4 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 9 GB (9 x 1GB DDR3-1066, CL 7, ECC, running at 800MHz) |
| Disk Subsystem: | 1 x 160 GB SATA-2, 7200RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SUSE Linux Enterprise Server 10 (x86_64) SP2 with patch Linux kernel 20090119, Kernel 2.6.16.60-0.34-smp |
| Compiler: | Intel C++ Compiler 11.0 for Linux Build 20090131 Package ID: l_cproc_p_11.0.081 |
| Auto Parallel: | No |
| File System: | ReiserFS |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V8.1 Binutils 2.18.50.0.7.20080502 |

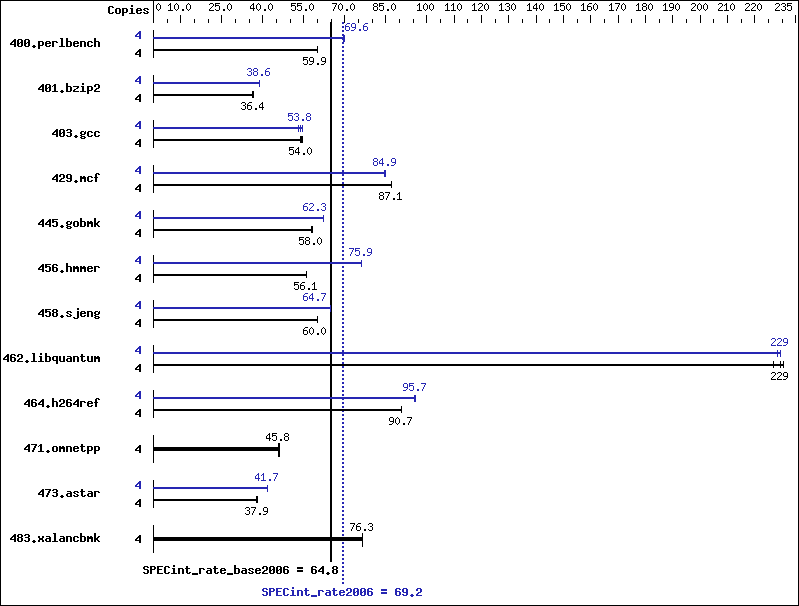

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 4 | 652 | 59.9 | 651 | 60.0 | 652 | 59.9 | 4 | 562 | 69.6 | 560 | 69.7 | 561 | 69.6 |
| 401.bzip2 | 4 | 1060 | 36.4 | 1060 | 36.4 | 1063 | 36.3 | 4 | 998 | 38.7 | 999 | 38.6 | 1000 | 38.6 |
| 403.gcc | 4 | 592 | 54.3 | 599 | 53.8 | 596 | 54.0 | 4 | 592 | 54.4 | 606 | 53.1 | 598 | 53.8 |
| 429.mcf | 4 | 418 | 87.2 | 419 | 87.1 | 419 | 87.1 | 4 | 432 | 84.4 | 430 | 84.9 | 429 | 85.0 |
| 445.gobmk | 4 | 723 | 58.1 | 725 | 57.9 | 724 | 58.0 | 4 | 673 | 62.3 | 673 | 62.3 | 676 | 62.1 |
| 456.hmmer | 4 | 665 | 56.2 | 665 | 56.1 | 665 | 56.1 | 4 | 491 | 75.9 | 491 | 75.9 | 491 | 76.0 |
| 458.sjeng | 4 | 807 | 60.0 | 806 | 60.0 | 807 | 59.9 | 4 | 748 | 64.7 | 749 | 64.6 | 748 | 64.7 |
| 462.libquantum | 4 | 360 | 230 | 361 | 229 | 366 | 227 | 4 | 363 | 228 | 361 | 230 | 361 | 229 |
| 464.h264ref | 4 | 976 | 90.7 | 976 | 90.7 | 975 | 90.8 | 4 | 926 | 95.6 | 925 | 95.7 | 924 | 95.8 |
| 471.omnetpp | 4 | 542 | 46.1 | 546 | 45.8 | 548 | 45.6 | 4 | 542 | 46.1 | 546 | 45.8 | 548 | 45.6 |
| 473.astar | 4 | 739 | 38.0 | 743 | 37.8 | 741 | 37.9 | 4 | 673 | 41.7 | 672 | 41.8 | 674 | 41.6 |
| 483.xalancbmk | 4 | 362 | 76.3 | 362 | 76.3 | 362 | 76.3 | 4 | 362 | 76.3 | 362 | 76.3 | 362 | 76.3 |
Submit Notes
The config file option 'submit' was used. numactl was used to bind copies to the cores
General Notes
This result was measured on the Servidor Itautec MX223+. The Servidor Itautec MX203+ and the Servidor Itautec MX223+ are electronically equivalent. 'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run.
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -static -inline-calloc -opt-malloc-options=3 -opt-prefetch |
C++ benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L/home/richard/sh/SmartHeap_8.1/lib -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc | |
| 401.bzip2: | /opt/intel/Compiler/11.0/081/bin/intel64/icc |
| 456.hmmer: | /opt/intel/Compiler/11.0/081/bin/intel64/icc |
| 458.sjeng: | /opt/intel/Compiler/11.0/081/bin/intel64/icc |
C++ benchmarks (except as noted below):
| icpc | |
| 473.astar: | /opt/intel/Compiler/11.0/081/bin/intel64/icpc |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 473.astar: | -DSPEC_CPU_LP64 |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
C++ benchmarks:
| 471.omnetpp: | basepeak = yes |
| 473.astar: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=routine -auto-ilp32 -Wl,-z,muldefs -L/home/richard/sh/SmartHeap_8.1/lib -lsmartheap64 |
| 483.xalancbmk: | basepeak = yes |
