SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Sun Microsystems

Sun SPARC Enterprise M4000

SPECfp®2006 = 13.9

CPU2006 license: 6 Test date: Oct-2009
Test sponsor: Sun Microsystems Hardware Availability: Nov-2009
Tested by: Fujitsu Limited Software Availability: Jul-2009

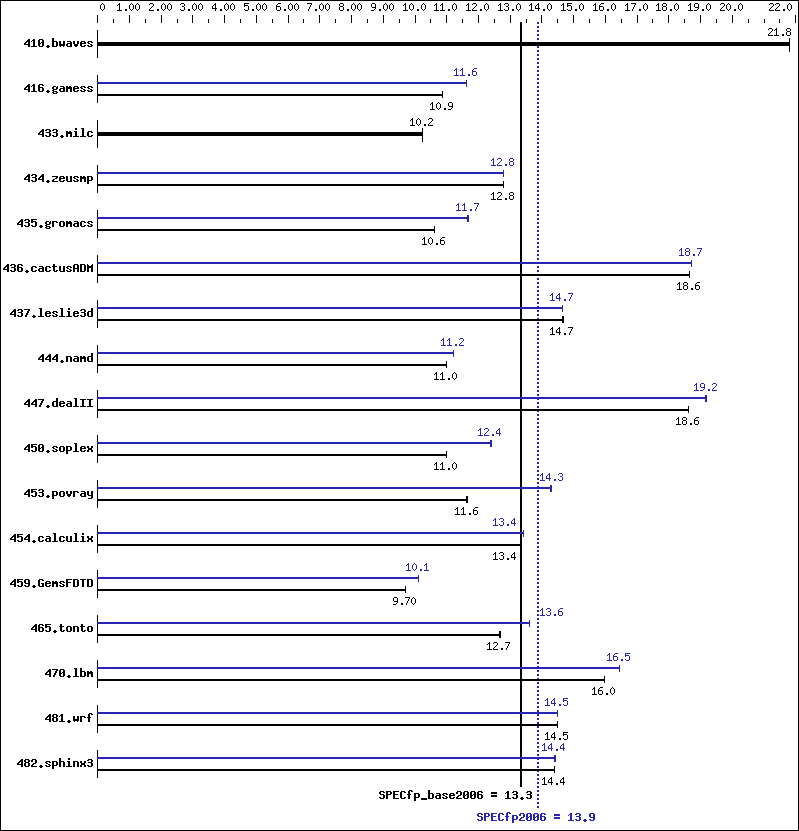

Benchmark results graph
Hardware
CPU Name: SPARC64 VII
CPU Characteristics:
CPU MHz: 2530
FPU: Integrated
CPU(s) enabled: 16 cores, 4 chips, 4 cores/chip, 2 threads/core
CPU(s) orderable: 1 to 2 CPUMs; each CPUM contains 2 CPU chips
Primary Cache: 64 KB I + 64 KB D on chip per core
Secondary Cache: 5632 KB I+D on chip per chip
L3 Cache: None
Other Cache: None
Memory: 64 GB (32 x 2 GB), 8-way interleaved
Disk Subsystem: 1 x Seagate Savvio 10K.2 (146 GB 10,000 RPM SAS)
Other Hardware: None
Software
Operating System: Solaris 10 5/09 with patches 119963-16,
120753-07, 118683-03
Compiler: Sun Studio 12 Update 1
Auto Parallel: No
File System: ufs
System State: Default
Base Pointers: 32-bit
Peak Pointers: 32-bit
Other Software: Apache C++ Standard Library V4.2.1

Results Table

Benchmark Base Peak
Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 624 21.8  624 21.8  624 21.8  624 21.8 624 21.8 624 21.8
416.gamess 1802 10.9  1802 10.9  1802 10.9  1686 11.6 1686 11.6 1686 11.6
433.milc 897 10.2  898 10.2  897 10.2  897 10.2 898 10.2 897 10.2
434.zeusmp 712 12.8  712 12.8  712 12.8  712 12.8 712 12.8 712 12.8
435.gromacs 673 10.6  673 10.6  673 10.6  613 11.7 611 11.7 611 11.7
436.cactusADM 641 18.7  641 18.6  641 18.6  638 18.7 638 18.7 638 18.7
437.leslie3d 641 14.7  641 14.7  641 14.7  641 14.7 641 14.7 641 14.7
444.namd 730 11.0  730 11.0  730 11.0  715 11.2 715 11.2 715 11.2
447.dealII 614 18.6  614 18.6  615 18.6  597 19.2 597 19.2 596 19.2
450.soplex 758 11.0  758 11.0  758 11.0  672 12.4 673 12.4 673 12.4
453.povray 458 11.6  456 11.7  457 11.6  372 14.3 373 14.3 372 14.3
454.calculix 617 13.4  618 13.3  618 13.4  615 13.4 615 13.4 615 13.4
459.GemsFDTD 1093 9.71 1093 9.70 1093 9.70 1051 10.1 1051 10.1 1051 10.1
465.tonto 777 12.7  776 12.7  776 12.7  723 13.6 723 13.6 724 13.6
470.lbm 861 16.0  861 16.0  861 16.0  835 16.5 835 16.5 835 16.5
481.wrf 771 14.5  771 14.5  771 14.5  770 14.5 770 14.5 770 14.5
482.sphinx3 1353 14.4  1354 14.4  1354 14.4  1350 14.4 1353 14.4 1354 14.4

Compiler Invocation Notes

Sun Studio compiler patches are available at
   http://developers.sun.com/sunstudio/downloads/patches/ss12u1_patches.jsp

The Apache C++ Standard Library V4.2.1 was installed from
   http://stdcxx.apache.org/download.html using:
     alias gmake=specmake
     gmake BUILDTYPE=8d CONFIG=sunpro.config

Submit Notes

The config file option 'submit' was used.  Processes were assigned to
specific processors using 'pbind' commands.  The list of processors to use
was provided in the 'BIND' variable, to generate the pbind commands.
(For details, please see the config file.)

Operating System Notes


Shell Environments:

    ulimit -s 131072 was used to limit the space consumed
    by the stack.(making more space available for the heap)

System Tunables:
(/etc/system parameters)

    tune_t_fsflushr=10
       Controls how many seconds elapse between runs of the
       page flush daemon, fsflush.
    autoup=600
       Causes pages older than the listed number of seconds to
       be written by fsflush.
    bufhwm=3000
       Memory byte limit for caching I/O buffers.
    segmap_percent=1
       Set maximum percent memory for file system cache.

Other System Settings:

    The webconsole service was turned off using svcadm disable webconsole.

Platform Notes


 Memory is 8-way interleaved by filling all slots with the same
 capacity DIMMs.

 This result is measured on a Fujitsu SPARC Enterprise M4000 Server.
 Note that the Fujitsu SPARC Enterprise M4000 and Sun SPARC Enterprise
 M4000 are electrically equivalent.

General Notes

447.dealII (peak): "apache_stdcxx_4_2_1" src.alt was used.

447.dealII (base): "apache_stdcxx_4_2_1" src.alt was used.

Base Compiler Invocation

C benchmarks:

 cc

C++ benchmarks:

 CC

Fortran benchmarks:

 f90

Benchmarks using both Fortran and C:

 cc   f90

Base Optimization Flags

C benchmarks:

 -fast   -fma=fused   -xipo=2   -xpagesize=4M   -xprefetch_level=2   -xalias_level=std   -xprefetch_auto_type=indirect_array_access   -xprefetch=latx:2   -M /usr/lib/ld/map.bssalign   -ll2amm

C++ benchmarks:

 -xdepend   -fast   -fma=fused   -xipo=2   -xpagesize=4M   -xprefetch_level=2   -xalias_level=compatible   -xprefetch_level=3   -library=no%Cstd   -I/export/cpu2006/stdcxx-4.2.1/include   -I/export/cpu2006/stdcxx-4.2.1/build/include   -M /usr/lib/ld/map.bssalign   -L/export/cpu2006/stdcxx-4.2.1/build/lib   -R/export/cpu2006/stdcxx-4.2.1/build/lib   -lstd8d

Fortran benchmarks:

 -fast   -fma=fused   -xipo=2   -xpagesize=4M   -xprefetch_level=2   -xprefetch=latx:2   -M /usr/lib/ld/map.bssalign   -ll2amm

Benchmarks using both Fortran and C:

 -fast(cc)   -fast(f90)   -fma=fused   -xipo=2   -xpagesize=4M   -xprefetch_level=2   -xalias_level=std   -xprefetch_auto_type=indirect_array_access   -xprefetch=latx:2   -M /usr/lib/ld/map.bssalign   -ll2amm

Base Other Flags

C benchmarks:

 -xjobs=8   -V   -#

C++ benchmarks:

 -xjobs=8   -verbose=diags,version

Fortran benchmarks:

 -xjobs=8   -V   -v

Benchmarks using both Fortran and C:

 -xjobs=8   -V   -#   -v

Peak Compiler Invocation

C benchmarks:

 cc

C++ benchmarks:

 CC

Fortran benchmarks:

 f90

Benchmarks using both Fortran and C:

 cc   f90

Peak Optimization Flags

C benchmarks:

433.milc:  basepeak = yes
470.lbm:  -fast   -fma=fused   -xpagesize=4M   -xipo=2   -xarch=generic   -xvector   -xprefetch_level=3
482.sphinx3:  -fast   -fma=fused   -xpagesize=4M   -xipo=2   -xprefetch_level=2   -xprefetch=latx:2   -xalias_level=std   -xprefetch_auto_type=indirect_array_access   -ll2amm

C++ benchmarks:

444.namd:  -xdepend   -fast   -fma=fused   -xpagesize=4M   -xalias_level=compatible   -library=stlport4   -xipo=2   -xprefetch=no%auto
447.dealII:  -xdepend   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -fma=fused   -xpagesize=4M   -xalias_level=compatible   -library=no%Cstd   -I/export/cpu2006/stdcxx-4.2.1/include   -I/export/cpu2006/stdcxx-4.2.1/build/include   -xipo=2   -xprefetch_level=2   -L/export/cpu2006/stdcxx-4.2.1/build/lib   -R/export/cpu2006/stdcxx-4.2.1/build/lib   -lstd8d
450.soplex:  -xdepend   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -xprefetch_level=2   -xprefetch_auto_type=indirect_array_access   -Qoption cg -Qlp-ol=1   -Qoption cg -Qlp-it=3   -Qoption cg -Qlp-imb=1   -Qoption iropt -Apf:pdl=3   -xalias_level=simple   -xrestrict   -library=stlport4
453.povray:  -xdepend   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -fma=fused   -xpagesize=4M   -xalias_level=compatible   -library=stlport4   -xipo=2   -xlinkopt=2

Fortran benchmarks:

410.bwaves:  basepeak = yes
416.gamess:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -fma=fused   -xpagesize=4M   -xipo=2   -xprefetch_level=3
434.zeusmp:  -fast   -fma=fused   -xpagesize=4M   -M /usr/lib/ld/map.bssalign   -xipo=2   -xprefetch=latx:2   -ll2amm
437.leslie3d:  Same as 434.zeusmp
459.GemsFDTD:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -fma=fused   -xpagesize=4M   -xipo=2   -xprefetch=latx:2
465.tonto:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -lfast

Benchmarks using both Fortran and C:

435.gromacs:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast(cc)   -fast(f90)   -fma=fused   -xpagesize=4M   -xipo=2   -xinline=   -xchip=generic   -fsimple=0
436.cactusADM:  -fast(cc)   -fast(f90)   -fma=fused   -xipo=2   -xpagesize=4M   -xprefetch_level=2   -xalias_level=std   -xprefetch_level=3   -xprefetch_auto_type=indirect_array_access
454.calculix:  -fast(cc)   -fast(f90)   -fma=fused   -xipo=2   -xpagesize=4M   -xprefetch_level=2   -xprefetch=latx:0.5   -xalias_level=std   -xprefetch_auto_type=indirect_array_access   -ll2amm
481.wrf:  -fast(cc)   -fast(f90)   -fma=fused   -xipo=2   -xpagesize=4M   -xprefetch_level=2   -xprefetch=latx:2   -xalias_level=std   -xprefetch_auto_type=indirect_array_access

Peak Other Flags

C benchmarks:

 -xjobs=8   -V   -#

C++ benchmarks:

 -xjobs=8   -verbose=diags,version

Fortran benchmarks:

 -xjobs=8   -V   -v

Benchmarks using both Fortran and C:

 -xjobs=8   -V   -#   -v

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Sun-Solaris-Studio12-12u1-and-gccfss4.2.r4.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Sun-Solaris-Studio12-12u1-and-gccfss4.2.r4.xml.
