CPU2006 license: | 11 | Test date: | Jul-2009 |
---|---|---|---|
Test sponsor: | IBM Corporation | Hardware Availability: | Aug-2009 |
Tested by: | IBM Corporation | Software Availability: | Feb-2009 |
Hardware | |
---|---|
CPU Name: | Intel Xeon E5506 |
CPU Characteristics: | |
CPU MHz: | 2133 |
FPU: | Integrated |
CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip |
CPU(s) orderable: | 1,2 chips |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 256 KB I+D on chip per core |
L3 Cache: | 4 MB I+D on chip per chip |
Other Cache: | None |
Memory: | 24 GB (12 x 2 GB PC3-10600R, 2 Rank, running at 800 MHz) |
Disk Subsystem: | 1 x 250 GB SATA, 7200RPM |
Other Hardware: | None |
Software | |
---|---|
Operating System: | SuSE Linux Enterprise Server 10 (x86_64) SP2 with patch Linux kernel 20090119, Kernel 2.6.16.60-0.34-smp |
Compiler: | Intel C++ and Fortran Compiler 11.0 for Linux Build 20090131 Package ID: l_cproc_p_11.0.080, l_cprof_p_11.0.080 |
Auto Parallel: | No |
File System: | ReiserFS |
System State: | Run level 3 (multi-user) |
Base Pointers: | 64-bit |
Peak Pointers: | 32/64-bit |
Other Software: | Binutils 2.18.50.0.7.20080502 |

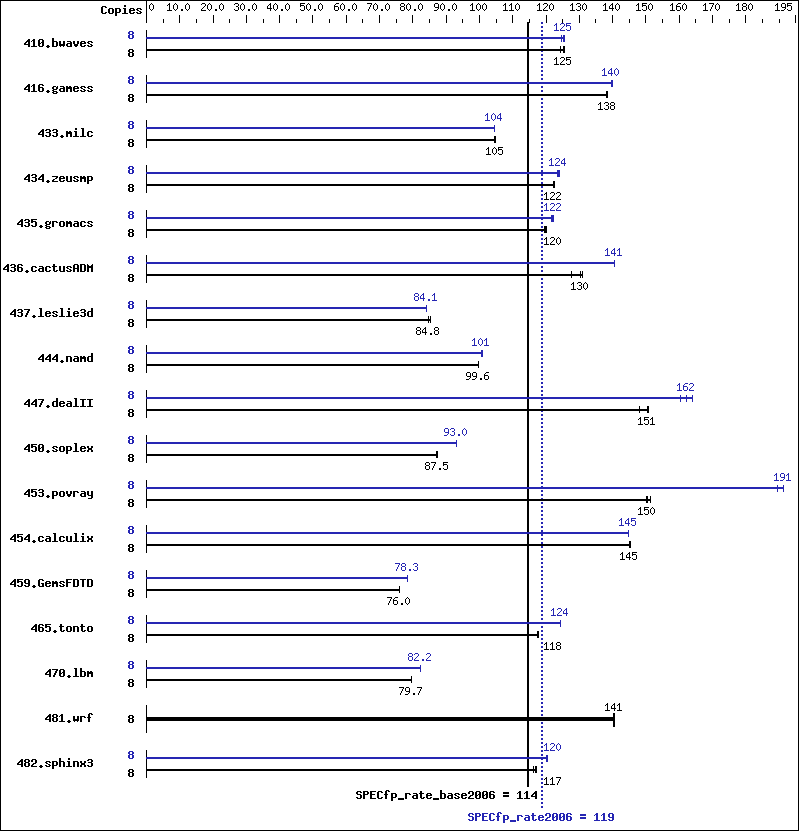

Benchmark | Base | Peak | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
410.bwaves | 8 | 875 | 124 | 866 | 126 | 867 | 125 | 8 | 866 | 126 | 872 | 125 | 869 | 125 |
416.gamess | 8 | 1132 | 138 | 1133 | 138 | 1132 | 138 | 8 | 1120 | 140 | 1121 | 140 | 1121 | 140 |
433.milc | 8 | 700 | 105 | 702 | 105 | 702 | 105 | 8 | 702 | 105 | 703 | 104 | 703 | 104 |
434.zeusmp | 8 | 595 | 122 | 595 | 122 | 595 | 122 | 8 | 589 | 124 | 588 | 124 | 587 | 124 |
435.gromacs | 8 | 477 | 120 | 476 | 120 | 476 | 120 | 8 | 468 | 122 | 468 | 122 | 470 | 122 |
436.cactusADM | 8 | 749 | 128 | 730 | 131 | 733 | 130 | 8 | 680 | 141 | 679 | 141 | 680 | 140 |
437.leslie3d | 8 | 883 | 85.2 | 887 | 84.7 | 887 | 84.8 | 8 | 895 | 84.0 | 893 | 84.2 | 894 | 84.1 |
444.namd | 8 | 644 | 99.6 | 643 | 99.7 | 644 | 99.6 | 8 | 637 | 101 | 637 | 101 | 637 | 101 |
447.dealII | 8 | 608 | 151 | 607 | 151 | 618 | 148 | 8 | 565 | 162 | 558 | 164 | 571 | 160 |
450.soplex | 8 | 762 | 87.5 | 763 | 87.5 | 765 | 87.2 | 8 | 717 | 93.0 | 717 | 93.0 | 717 | 93.0 |
453.povray | 8 | 283 | 150 | 281 | 151 | 283 | 150 | 8 | 222 | 191 | 224 | 190 | 222 | 191 |
454.calculix | 8 | 455 | 145 | 455 | 145 | 454 | 145 | 8 | 456 | 145 | 456 | 145 | 456 | 145 |
459.GemsFDTD | 8 | 1118 | 76.0 | 1116 | 76.1 | 1117 | 76.0 | 8 | 1083 | 78.3 | 1083 | 78.4 | 1084 | 78.3 |
465.tonto | 8 | 669 | 118 | 670 | 118 | 671 | 117 | 8 | 633 | 124 | 633 | 124 | 633 | 124 |
470.lbm | 8 | 1380 | 79.7 | 1379 | 79.7 | 1379 | 79.7 | 8 | 1337 | 82.2 | 1337 | 82.2 | 1337 | 82.2 |
481.wrf | 8 | 636 | 141 | 637 | 140 | 636 | 141 | 8 | 636 | 141 | 637 | 140 | 636 | 141 |
482.sphinx3 | 8 | 1334 | 117 | 1333 | 117 | 1342 | 116 | 8 | 1295 | 120 | 1297 | 120 | 1295 | 120 |
The config file option 'submit' was used. numactl was used to bind copies to the cores
'ulimit -s unlimited' was used to set the stack size to unlimited prior to run
icc |
icpc |
ifort |
icc ifort |
410.bwaves: | -DSPEC_CPU_LP64 |
416.gamess: | -DSPEC_CPU_LP64 |
433.milc: | -DSPEC_CPU_LP64 |
434.zeusmp: | -DSPEC_CPU_LP64 |
435.gromacs: | -DSPEC_CPU_LP64 -nofor_main |
436.cactusADM: | -DSPEC_CPU_LP64 -nofor_main |
437.leslie3d: | -DSPEC_CPU_LP64 |
444.namd: | -DSPEC_CPU_LP64 |
447.dealII: | -DSPEC_CPU_LP64 |
450.soplex: | -DSPEC_CPU_LP64 |
453.povray: | -DSPEC_CPU_LP64 |
454.calculix: | -DSPEC_CPU_LP64 -nofor_main |
459.GemsFDTD: | -DSPEC_CPU_LP64 |
465.tonto: | -DSPEC_CPU_LP64 |
470.lbm: | -DSPEC_CPU_LP64 |
481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX |
482.sphinx3: | -DSPEC_CPU_LP64 |
-xSSE4.2 -ipo -O3 -no-prec-div -static |
-xSSE4.2 -ipo -O3 -no-prec-div -static |
-xSSE4.2 -ipo -O3 -no-prec-div -static |
-xSSE4.2 -ipo -O3 -no-prec-div -static |
icc | |
482.sphinx3: | icc -m32 |
icpc | |
450.soplex: | icpc -m32 |
ifort | |
437.leslie3d: | ifort -m32 |
icc ifort |
410.bwaves: | -DSPEC_CPU_LP64 |
416.gamess: | -DSPEC_CPU_LP64 |
433.milc: | -DSPEC_CPU_LP64 |
434.zeusmp: | -DSPEC_CPU_LP64 |
435.gromacs: | -DSPEC_CPU_LP64 -nofor_main |
436.cactusADM: | -DSPEC_CPU_LP64 -nofor_main |
444.namd: | -DSPEC_CPU_LP64 |
447.dealII: | -DSPEC_CPU_LP64 |
453.povray: | -DSPEC_CPU_LP64 |
454.calculix: | -DSPEC_CPU_LP64 -nofor_main |
459.GemsFDTD: | -DSPEC_CPU_LP64 |
465.tonto: | -DSPEC_CPU_LP64 |
470.lbm: | -DSPEC_CPU_LP64 |
481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX |
433.milc: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -fno-alias |
470.lbm: | -xSSE4.2 -ipo -O3 -no-prec-div -static -opt-prefetch -auto-ilp32 |
482.sphinx3: | -xSSE4.2 -ipo -O3 -no-prec-div -static -unroll2 |
444.namd: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -fno-alias -auto-ilp32 |
447.dealII: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll2 -ansi-alias -scalar-rep- |
450.soplex: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -opt-malloc-options=3 |
453.povray: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll4 -ansi-alias |
410.bwaves: | -xSSE4.2 -ipo -O3 -no-prec-div -static -opt-prefetch |
416.gamess: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll2 -Ob0 -ansi-alias -scalar-rep- |
434.zeusmp: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) |
437.leslie3d: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -opt-malloc-options=3 -opt-prefetch |
459.GemsFDTD: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll2 -Ob0 -opt-prefetch |
465.tonto: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll4 -auto |
435.gromacs: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -opt-prefetch -auto-ilp32 |
436.cactusADM: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll2 -opt-prefetch -auto-ilp32 |
454.calculix: | -xSSE4.2 -ipo -O3 -no-prec-div -static -auto-ilp32 |
481.wrf: | basepeak = yes |
