| CPU2006 license: | 19 | Test date: | Aug-2009 |
|---|---|---|---|
| Test sponsor: | Fujitsu | Hardware Availability: | Apr-2009 |
| Tested by: | Fujitsu | Software Availability: | Feb-2009 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E5506 |
| CPU Characteristics: | |
| CPU MHz: | 2133 |
| FPU: | Integrated |
| CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 4 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 72 GB (18x4 GB PC3-10600R, 2 rank, CL9-9-9, ECC, see add'l detail in notes) |
| Disk Subsystem: | 1 x SATA, 250 GB, 7200 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SUSE Linux Enterprise Server 10 (x86_64) SP2, Kernel 2.6.16.60-0.21-smp |
| Compiler: | Intel C++ Compiler 11.0 for Linux Build 20090131 Package ID: l_cproc_p_11.0.080 |
| Auto Parallel: | Yes |
| File System: | ext3 |
| System State: | Multi-User Run Level 3 |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V8.1 Binutils 2.18.50.0.7.20080502 |

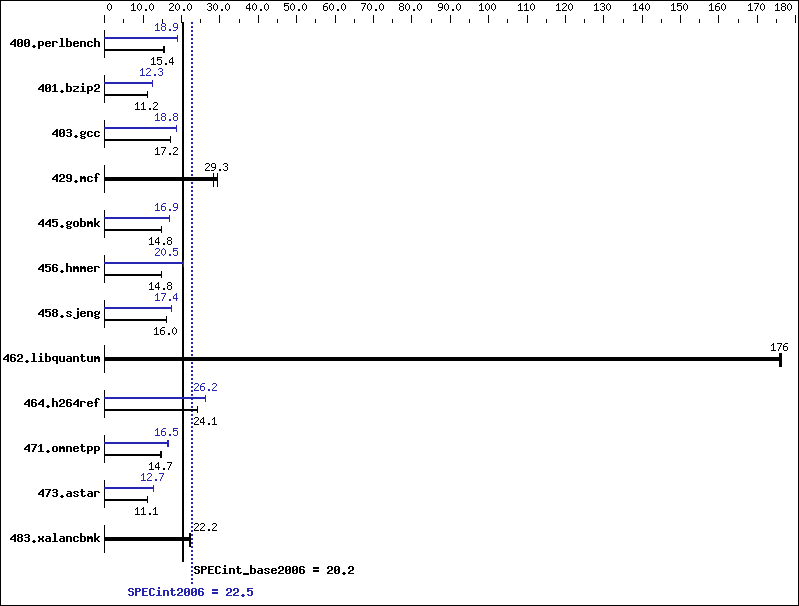

Results Table
| Benchmark | Base | Peak | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
| 400.perlbench | 634 | 15.4 | 633 | 15.4 | 634 | 15.4 | 517 | 18.9 | 517 | 18.9 | 517 | 18.9 |
| 401.bzip2 | 862 | 11.2 | 861 | 11.2 | 861 | 11.2 | 782 | 12.3 | 779 | 12.4 | 782 | 12.3 |
| 403.gcc | 468 | 17.2 | 468 | 17.2 | 468 | 17.2 | 429 | 18.8 | 428 | 18.8 | 428 | 18.8 |
| 429.mcf | 323 | 28.2 | 311 | 29.3 | 311 | 29.3 | 323 | 28.2 | 311 | 29.3 | 311 | 29.3 |
| 445.gobmk | 708 | 14.8 | 707 | 14.8 | 708 | 14.8 | 622 | 16.9 | 622 | 16.9 | 622 | 16.9 |
| 456.hmmer | 628 | 14.8 | 629 | 14.8 | 628 | 14.9 | 454 | 20.5 | 455 | 20.5 | 455 | 20.5 |
| 458.sjeng | 757 | 16.0 | 758 | 16.0 | 757 | 16.0 | 697 | 17.4 | 696 | 17.4 | 697 | 17.4 |
| 462.libquantum | 118 | 176 | 118 | 176 | 117 | 176 | 118 | 176 | 118 | 176 | 117 | 176 |
| 464.h264ref | 913 | 24.2 | 917 | 24.1 | 917 | 24.1 | 843 | 26.2 | 844 | 26.2 | 843 | 26.3 |
| 471.omnetpp | 425 | 14.7 | 425 | 14.7 | 427 | 14.6 | 380 | 16.5 | 379 | 16.5 | 379 | 16.5 |
| 473.astar | 635 | 11.1 | 630 | 11.1 | 629 | 11.2 | 555 | 12.7 | 551 | 12.7 | 552 | 12.7 |
| 483.xalancbmk | 314 | 22.0 | 311 | 22.2 | 311 | 22.2 | 314 | 22.0 | 311 | 22.2 | 311 | 22.2 |
Operating System Notes
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run
Platform Notes
The system automatically configures the memory to run at 800 MHz.
General Notes
OMP_NUM_THREADS set to number of cores KMP_AFFINITY set to granularity=fine,scatter This result was measured on the PRIMERGY TX300 S5. The PRIMERGY TX300 S5 and the PRIMERGY RX300 S5 are electronically equivalent. For information about Fujitsu please visit: http://www.fujitsu.com
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -static -parallel -par-runtime-control -opt-prefetch |
C++ benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L/spec/cpu2006.1.1/lib -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc | |
| 401.bzip2: | /opt/intel/Compiler/11.0/080/bin/intel64/icc |
| 456.hmmer: | /opt/intel/Compiler/11.0/080/bin/intel64/icc |
| 458.sjeng: | /opt/intel/Compiler/11.0/080/bin/intel64/icc |
C++ benchmarks (except as noted below):
| icpc | |
| 473.astar: | /opt/intel/Compiler/11.0/080/bin/intel64/icpc |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 473.astar: | -DSPEC_CPU_LP64 |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -ansi-alias -opt-prefetch |
| 401.bzip2: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -auto-ilp32 -opt-prefetch -ansi-alias |
| 403.gcc: | -xSSE4.2 -ipo -O3 -no-prec-div -static -inline-calloc -opt-malloc-options=3 |
| 429.mcf: | basepeak = yes |
| 445.gobmk: | -xSSE4.2(pass 2) -prof-gen(pass 1) -prof-use(pass 2) -O2 -ipo -no-prec-div -ansi-alias |
| 456.hmmer: | -xSSE4.2 -ipo -O3 -no-prec-div -static -unroll2 -ansi-alias -auto-ilp32 |
| 458.sjeng: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll4 -auto-ilp32 |
| 462.libquantum: | basepeak = yes |
| 464.h264ref: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll2 -ansi-alias |
C++ benchmarks:
| 471.omnetpp: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/spec/cpu2006.1.1/lib -lsmartheap |
| 473.astar: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=routine -auto-ilp32 -Wl,-z,muldefs -L/spec/cpu2006.1.1/lib -lsmartheap64 |
| 483.xalancbmk: | basepeak = yes |
