SPEC® CINT2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Supermicro

H8DA3-2, AMD Opteron 2439 SE

SPECint®2006 = 21.3

CPU2006 license: 001176 Test date: Jul-2009
Test sponsor: Supermicro Hardware Availability: Jun-2009
Tested by: Supermicro Software Availability: Apr-2009

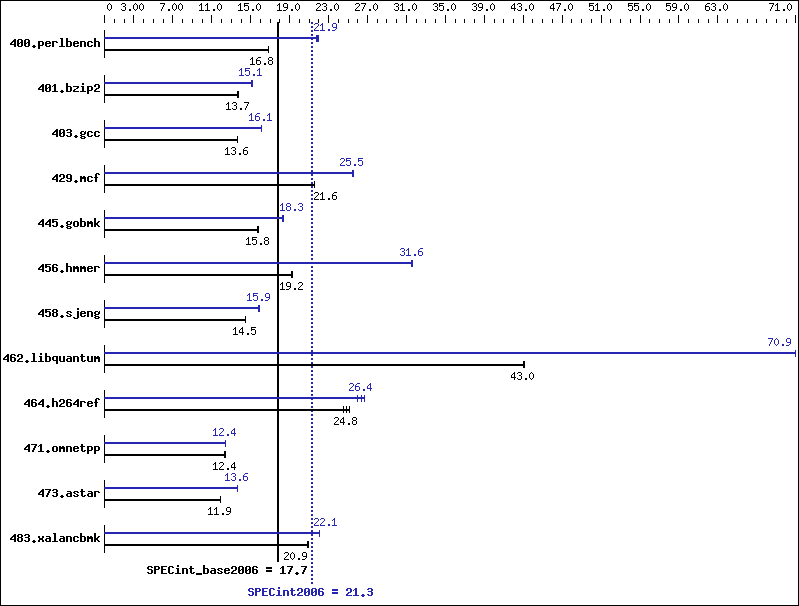

Benchmark results graph
Hardware
CPU Name: AMD Opteron 2439 SE
CPU Characteristics:
CPU MHz: 2800
FPU: Integrated
CPU(s) enabled: 12 cores, 2 chips, 6 cores/chip
CPU(s) orderable: 1,2 chips
Primary Cache: 64 KB I + 64 KB D on chip per core
Secondary Cache: 512 KB I+D on chip per core
L3 Cache: 6 MB I+D on chip per chip
Other Cache: None
Memory: 32 GB (8x4 GB, DDR2-800, CL5, Reg, Dual Rank)
Disk Subsystem: 1 x 500 GB SATA, 7200 RPM
Other Hardware: None
Software
Operating System: Red Hat Enterprise Linux Server release 5.3,
Advanced Platform, Kernel 2.6.18-128.el5
Compiler: PGI Server Complete Version 8.0
x86 Open64 4.2.2 Compiler Suite (from AMD)
Auto Parallel: No
File System: ext3
System State: Run level 2 (Local multiuser without remote
network)
Base Pointers: 32/64-bit
Peak Pointers: 32/64-bit
Other Software: binutils 2.18
SmartHeap 8.1 32-bit Library for Linux

Results Table

Benchmark Base Peak
Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 580 16.8 580 16.9 582 16.8 448 21.8 446 21.9 447 21.9
401.bzip2 706 13.7 702 13.7 705 13.7 638 15.1 641 15.0 640 15.1
403.gcc 589 13.7 591 13.6 591 13.6 500 16.1 500 16.1 499 16.1
429.mcf 423 21.6 424 21.5 423 21.6 358 25.5 358 25.5 357 25.5
445.gobmk 666 15.8 666 15.7 666 15.8 572 18.3 573 18.3 573 18.3
456.hmmer 486 19.2 485 19.2 485 19.2 295 31.6 296 31.5 296 31.6
458.sjeng 837 14.5 837 14.5 838 14.4 765 15.8 763 15.9 763 15.9
462.libquantum 482 43.0 481 43.1 482 43.0 292 71.0 292 70.9 292 70.9
464.h264ref 880 25.2 902 24.5 891 24.8 829 26.7 853 26.0 839 26.4
471.omnetpp 505 12.4 506 12.4 505 12.4 504 12.4 505 12.4 505 12.4
473.astar 591 11.9 591 11.9 592 11.9 516 13.6 516 13.6 516 13.6
483.xalancbmk 331 20.9 330 20.9 331 20.8 312 22.1 312 22.1 312 22.1

Submit Notes

The config file option 'submit' was used.
'numactl' was used to bind copies to the cores.
See the configuration file for details.

Operating System Notes

'ulimit -s unlimited' was used to set environment stack size
'ulimit -l 2097152'  was used to set environment locked pages in memory limit

Set vm/nr_hugepages=5400 in /etc/sysctl.conf
mount -t hugetlbfs nodev /mnt/hugepages

General Notes

Environment variables set by runspec before the start of the run:
HUGETLB_LIMIT = "450"
LD_LIBRARY_PATH = "/spec/amd0905is-libs/64:/spec/amd0905is-libs/32"
PGI_HUGE_PAGES = "450"

The x86 Open64 Compiler Suite is only available from (and supported by) AMD at
http://developer.amd.com/cpu/open64.

To ensure system stability, a 550W (minimum) ATX power supply
[ 4-pin (+12V), 8-pin (+12V) and 24-pin ] are required.

Product description can be obtained at:
http://www.supermicro.com/Aplus/motherboard/Opteron2000/MCP55/H8DA3-2.cfm

Base Compiler Invocation

C benchmarks:

 opencc

C++ benchmarks:

 openCC

Base Portability Flags

400.perlbench:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX_X64
401.bzip2:  -DSPEC_CPU_LP64
403.gcc:  -DSPEC_CPU_LP64
429.mcf:  -DSPEC_CPU_LP64
445.gobmk:  -DSPEC_CPU_LP64
456.hmmer:  -DSPEC_CPU_LP64
458.sjeng:  -DSPEC_CPU_LP64
462.libquantum:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX
464.h264ref:  -DSPEC_CPU_LP64
483.xalancbmk:  -DSPEC_CPU_LINUX

Base Optimization Flags

C benchmarks:

 -march=barcelona   -Ofast   -CG:local_sched_alg=1   -HP:bdt=2m:heap=2m

C++ benchmarks:

 -march=barcelona   -Ofast   -m32   -INLINE:aggressive=on   -L/root/work/libraries/SmartHeap-8.1/lib -lsmartheap

Peak Compiler Invocation

C benchmarks (except as noted below):

 opencc
456.hmmer:  pgcc

C++ benchmarks (except as noted below):

 openCC
473.astar:  pgcpp

Peak Portability Flags

400.perlbench:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX_X64
401.bzip2:  -DSPEC_CPU_LP64
445.gobmk:  -DSPEC_CPU_LP64
456.hmmer:  -DSPEC_CPU_LP64
458.sjeng:  -DSPEC_CPU_LP64
462.libquantum:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX
464.h264ref:  -DSPEC_CPU_LP64
483.xalancbmk:  -DSPEC_CPU_LINUX

Peak Optimization Flags

C benchmarks:

400.perlbench:  -march=barcelona   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -IPA:plimit=20000   -LNO:opt=0   -OPT:unroll_times_max=8   -OPT:unroll_size=256   -OPT:unroll_level=2   -OPT:keep_ext=on   -WOPT:if_conv=0   -CG:local_sched_alg=1   -CG:unroll_fb_req=on   -HP:bdt=2m:heap=2m
401.bzip2:  -march=barcelona   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -O3   -OPT:alias=disjoint   -OPT:unroll_size=0   -OPT:Ofast   -OPT:goto=off   -INLINE:aggressive=on   -CG:local_sched_alg=1   -m3dnow   -HP:bdt=2m:heap=2m
403.gcc:  -march=barcelona   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -LNO:trip_count=256   -LNO:prefetch_ahead=10   -CG:cmp_peep=on   -m32   -HP:bdt=2m:heap=2m   -GRA:unspill=on
429.mcf:  -march=barcelona   -O3   -ipa   -INLINE:aggressive=on   -CG:gcm=off   -GRA:prioritize_by_density=on   -m32   -HP:bdt=2m:heap=2m
445.gobmk:  -march=barcelona   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -O3   -OPT:alias=restrict   -OPT:unroll_times_max=8   -OPT:unroll_size=256   -OPT:unroll_level=2   -OPT:keep_ext=on   -ipa   -IPA:plimit=750   -IPA:min_hotness=300   -IPA:pu_reorder=1   -LNO:prefetch=1   -LNO:ignore_feedback=off   -CG:p2align=on   -CG:unroll_fb_req=on   -HP:bdt=2m:heap=2m
456.hmmer:  -fastsse   -Mvect=partial   -Munroll=n:8   -Msmartalloc=huge   -Msafeptr   -Mprefetch=t0   -Mfprelaxed   -Mipa=const   -Mipa=ptr   -Mipa=arg   -Mipa=inline   -tp shanghai-64   -Bstatic_pgi
458.sjeng:  -march=barcelona   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -O3   -ipa   -LNO:ignore_feedback=off   -LNO:full_unroll=10   -LNO:fusion=0   -LNO:fission=2   -IPA:pu_reorder=2   -CG:ptr_load_use=0   -OPT:unroll_times_max=8   -INLINE:aggressive=on   -HP:bdt=2m:heap=2m
462.libquantum:  -march=barcelona   -Ofast   -LNO:pf2=0   -CG:gcm=off   -CG:use_prefetchnta=on   -CG:cmp_peep=on   -WOPT:aggstr=0   -HP:bdt=2m:heap=2m   -OPT:alias=disjoint   -INLINE:aggressive=on   -IPA:space=1000   -IPA:plimit=20000
464.h264ref:  -march=barcelona   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -O3   -IPA:plimit=20000   -OPT:alias=disjoint   -LNO:prefetch=0   -CG:ptr_load_use=0   -CG:push_pop_int_saved_regs=off   -HP:bdt=2m:heap=2m

C++ benchmarks:

471.omnetpp:  -march=barcelona   -Ofast   -CG:gcm=off   -INLINE:aggressive=on   -OPT:alias=disjoint   -WOPT:if_conv=0   -m32   -L/root/work/libraries/SmartHeap-8.1/lib -lsmartheap
473.astar:  -Mpfi(pass 1)   -Mpfo(pass 2)   -Mipa=fast(pass 2)   -Mipa=inline:6(pass 2)   -fastsse   -O4   -Msmartalloc=huge   -Msafeptr=global   -Mfprelaxed   --zc_eh   -tp shanghai-32   -Bstatic_pgi
483.xalancbmk:  -march=barcelona   -Ofast   -INLINE:aggressive=on   -m32   -CG:cmp_peep=on   -GRA:unspill=on   -TENV:frame_pointer=off   -L/root/work/libraries/SmartHeap-8.1/lib -lsmartheap

Peak Other Flags

C benchmarks:

456.hmmer:  -Mipa=jobs:4

C++ benchmarks:

473.astar:  -Mipa=jobs:4(pass 2)

The flags files that were used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/amd-platform.20090710.html,
http://www.spec.org/cpu2006/flags/pgi80_linux_flags.20090914.html,
http://www.spec.org/cpu2006/flags/x86-open64-4.2.2-flags-revE.html.

You can also download the XML flags sources by saving the following links:
http://www.spec.org/cpu2006/flags/amd-platform.20090710.xml,
http://www.spec.org/cpu2006/flags/pgi80_linux_flags.20090914.xml,
http://www.spec.org/cpu2006/flags/x86-open64-4.2.2-flags-revE.xml.
