SPEC® CINT2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Supermicro

Motherboard H8DA3-2, AMD Opteron 2439 SE

SPECint®2006 = 21.2

CPU2006 license: 001176 Test date: Aug-2009
Test sponsor: Supermicro Hardware Availability: Jun-2009
Tested by: Supermicro Software Availability: Apr-2009

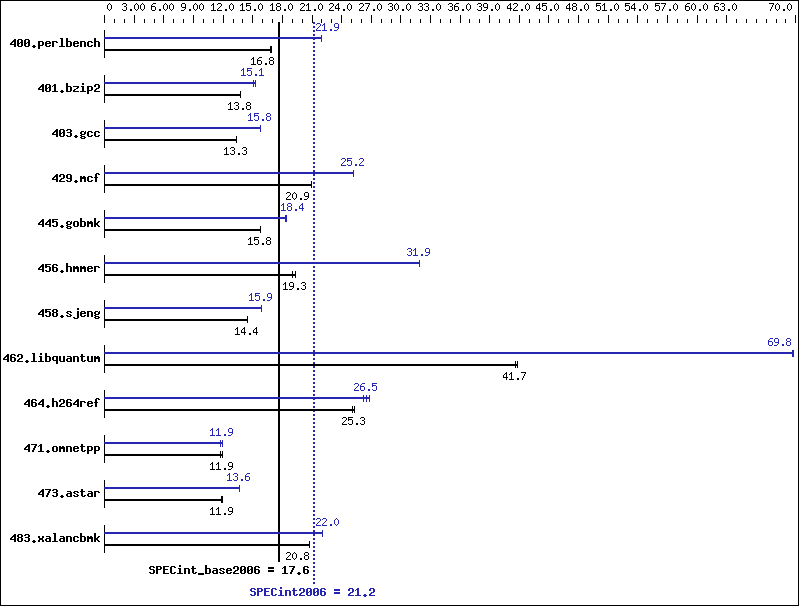

Benchmark results graph
Hardware
CPU Name: AMD Opteron 2439 SE
CPU Characteristics:
CPU MHz: 2800
FPU: Integrated
CPU(s) enabled: 12 cores, 2 chips, 6 cores/chip
CPU(s) orderable: 1,2 chips
Primary Cache: 64 KB I + 64 KB D on chip per core
Secondary Cache: 512 KB I+D on chip per core
L3 Cache: 6 MB I+D on chip per chip
Other Cache: None
Memory: 32 GB (8x4 GB, DDR2-800, CL5, Reg, Dual Rank)
Disk Subsystem: 1 x 500 GB SATA, 7200 RPM
Other Hardware: None
Software
Operating System: Red Hat Enterprise Linux Server release 5.3,
Advanced Platform, Kernel 2.6.18-128.el5
Compiler: PGI Server Complete Version 8.0
x86 Open64 4.2.2 Compiler Suite (from AMD)
Auto Parallel: No
File System: ext3
System State: Run level 2 (Local multiuser without remote
network)
Base Pointers: 32/64-bit
Peak Pointers: 32/64-bit
Other Software: binutils 2.18
SmartHeap 8.1 32-bit Library for Linux

Results Table

Benchmark Base Peak
Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 581 16.8 580 16.8 579 16.9 445 21.9 445 21.9 445 21.9
401.bzip2 700 13.8 703 13.7 701 13.8 642 15.0 641 15.1 631 15.3
403.gcc 603 13.3 604 13.3 603 13.3 509 15.8 509 15.8 510 15.8
429.mcf 435 21.0 436 20.9 435 20.9 362 25.2 362 25.2 362 25.2
445.gobmk 664 15.8 664 15.8 664 15.8 571 18.4 571 18.4 571 18.4
456.hmmer 483 19.3 483 19.3 489 19.1 293 31.9 293 31.9 293 31.8
458.sjeng 839 14.4 839 14.4 839 14.4 762 15.9 762 15.9 762 15.9
462.libquantum 497 41.7 496 41.8 498 41.6 297 69.8 297 69.8 297 69.7
464.h264ref 874 25.3 882 25.1 875 25.3 836 26.5 843 26.3 826 26.8
471.omnetpp 524 11.9 524 11.9 532 11.7 525 11.9 535 11.7 524 11.9
473.astar 590 11.9 590 11.9 591 11.9 515 13.6 516 13.6 515 13.6
483.xalancbmk 332 20.8 332 20.8 332 20.8 313 22.1 313 22.0 313 22.0

Submit Notes

The config file option 'submit' was used.
'numactl' was used to bind copies to the cores.
See the configuration file for details.

Operating System Notes

'ulimit -s unlimited' was used to set environment stack size
'ulimit -l 2097152'  was used to set environment locked pages in memory limit

Set vm/nr_hugepages=5400 in /etc/sysctl.conf
mount -t hugetlbfs nodev /mnt/hugepages

General Notes

Environment variables set by runspec before the start of the run:
HUGETLB_LIMIT = "450"
LD_LIBRARY_PATH = "/spec/amd0905is-libs/64:/spec/amd0905is-libs/32"
PGI_HUGE_PAGES = "450"

The x86 Open64 Compiler Suite is only available from (and supported by) AMD at
http://developer.amd.com/cpu/open64

System was tested in an open environment.
To ensure system stability, a 550W (minimum) ATX power supply
[ 4-pin (+12V), 8-pin (+12V) and 24-pin are required ]

Product description can be obtained at:
http://www.supermicro.com/Aplus/motherboard/Opteron2000/MCP55/H8DA3-2.cfm

Base Compiler Invocation

C benchmarks:

 opencc

C++ benchmarks:

 openCC

Base Portability Flags

400.perlbench:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX_X64
401.bzip2:  -DSPEC_CPU_LP64
403.gcc:  -DSPEC_CPU_LP64
429.mcf:  -DSPEC_CPU_LP64
445.gobmk:  -DSPEC_CPU_LP64
456.hmmer:  -DSPEC_CPU_LP64
458.sjeng:  -DSPEC_CPU_LP64
462.libquantum:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX
464.h264ref:  -DSPEC_CPU_LP64
483.xalancbmk:  -DSPEC_CPU_LINUX

Base Optimization Flags

C benchmarks:

 -march=barcelona   -Ofast   -CG:local_sched_alg=1   -HP:bdt=2m:heap=2m

C++ benchmarks:

 -march=barcelona   -Ofast   -m32   -INLINE:aggressive=on   -L/root/work/libraries/SmartHeap-8.1/lib -lsmartheap

Peak Compiler Invocation

C benchmarks (except as noted below):

 opencc
456.hmmer:  pgcc

C++ benchmarks (except as noted below):

 openCC
473.astar:  pgcpp

Peak Portability Flags

400.perlbench:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX_X64
401.bzip2:  -DSPEC_CPU_LP64
445.gobmk:  -DSPEC_CPU_LP64
456.hmmer:  -DSPEC_CPU_LP64
458.sjeng:  -DSPEC_CPU_LP64
462.libquantum:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX
464.h264ref:  -DSPEC_CPU_LP64
483.xalancbmk:  -DSPEC_CPU_LINUX

Peak Optimization Flags

C benchmarks:

400.perlbench:  -march=barcelona   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -IPA:plimit=20000   -LNO:opt=0   -OPT:unroll_times_max=8   -OPT:unroll_size=256   -OPT:unroll_level=2   -OPT:keep_ext=on   -WOPT:if_conv=0   -CG:local_sched_alg=1   -CG:unroll_fb_req=on   -HP:bdt=2m:heap=2m
401.bzip2:  -march=barcelona   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -O3   -OPT:alias=disjoint   -OPT:unroll_size=0   -OPT:Ofast   -OPT:goto=off   -INLINE:aggressive=on   -CG:local_sched_alg=1   -m3dnow   -HP:bdt=2m:heap=2m
403.gcc:  -march=barcelona   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -LNO:trip_count=256   -LNO:prefetch_ahead=10   -CG:cmp_peep=on   -m32   -HP:bdt=2m:heap=2m   -GRA:unspill=on
429.mcf:  -march=barcelona   -O3   -ipa   -INLINE:aggressive=on   -CG:gcm=off   -GRA:prioritize_by_density=on   -m32   -HP:bdt=2m:heap=2m
445.gobmk:  -march=barcelona   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -O3   -OPT:alias=restrict   -OPT:unroll_times_max=8   -OPT:unroll_size=256   -OPT:unroll_level=2   -OPT:keep_ext=on   -ipa   -IPA:plimit=750   -IPA:min_hotness=300   -IPA:pu_reorder=1   -LNO:prefetch=1   -LNO:ignore_feedback=off   -CG:p2align=on   -CG:unroll_fb_req=on   -HP:bdt=2m:heap=2m
456.hmmer:  -fastsse   -Mvect=partial   -Munroll=n:8   -Msmartalloc=huge   -Msafeptr   -Mprefetch=t0   -Mfprelaxed   -Mipa=const   -Mipa=ptr   -Mipa=arg   -Mipa=inline   -tp shanghai-64   -Bstatic_pgi
458.sjeng:  -march=barcelona   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -O3   -ipa   -LNO:ignore_feedback=off   -LNO:full_unroll=10   -LNO:fusion=0   -LNO:fission=2   -IPA:pu_reorder=2   -CG:ptr_load_use=0   -OPT:unroll_times_max=8   -INLINE:aggressive=on   -HP:bdt=2m:heap=2m
462.libquantum:  -march=barcelona   -Ofast   -LNO:pf2=0   -CG:gcm=off   -CG:use_prefetchnta=on   -CG:cmp_peep=on   -WOPT:aggstr=0   -HP:bdt=2m:heap=2m   -OPT:alias=disjoint   -INLINE:aggressive=on   -IPA:space=1000   -IPA:plimit=20000
464.h264ref:  -march=barcelona   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -O3   -IPA:plimit=20000   -OPT:alias=disjoint   -LNO:prefetch=0   -CG:ptr_load_use=0   -CG:push_pop_int_saved_regs=off   -HP:bdt=2m:heap=2m

C++ benchmarks:

471.omnetpp:  -march=barcelona   -Ofast   -CG:gcm=off   -INLINE:aggressive=on   -OPT:alias=disjoint   -WOPT:if_conv=0   -m32   -L/root/work/libraries/SmartHeap-8.1/lib -lsmartheap
473.astar:  -Mpfi(pass 1)   -Mpfo(pass 2)   -Mipa=fast(pass 2)   -Mipa=inline:6(pass 2)   -fastsse   -O4   -Msmartalloc=huge   -Msafeptr=global   -Mfprelaxed   --zc_eh   -tp shanghai-32   -Bstatic_pgi
483.xalancbmk:  -march=barcelona   -Ofast   -INLINE:aggressive=on   -m32   -CG:cmp_peep=on   -GRA:unspill=on   -TENV:frame_pointer=off   -L/root/work/libraries/SmartHeap-8.1/lib -lsmartheap

Peak Other Flags

C benchmarks:

456.hmmer:  -Mipa=jobs:4

C++ benchmarks:

473.astar:  -Mipa=jobs:4(pass 2)

The flags files that were used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/amd-platform.20090710.html,
http://www.spec.org/cpu2006/flags/pgi80_linux_flags.20090914.html,
http://www.spec.org/cpu2006/flags/x86-open64-4.2.2-flags-revE.html.

You can also download the XML flags sources by saving the following links:
http://www.spec.org/cpu2006/flags/amd-platform.20090710.xml,
http://www.spec.org/cpu2006/flags/pgi80_linux_flags.20090914.xml,
http://www.spec.org/cpu2006/flags/x86-open64-4.2.2-flags-revE.xml.

SPEC and SPECint are registered trademarks of the Standard Performance Evaluation Corporation. All other brand and product names appearing in this result are trademarks or registered trademarks of their respective holders.

For questions about this result, please contact the tester.
For other inquiries, please contact webmaster@spec.org
Copyright 2006-2014 Standard Performance Evaluation Corporation
Tested with SPEC CPU2006 v1.1.
Report generated on Wed Jul 23 02:43:54 2014 by SPEC CPU2006 HTML formatter v6932.
Originally published on 15 September 2009.
