| CPU2006 license: | 9006 | Test date: | Aug-2009 |
|---|---|---|---|
| Test sponsor: | NEC Corporation | Hardware Availability: | Jul-2009 |
| Tested by: | NEC Corporation | Software Availability: | Feb-2009 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E5504 |
| CPU Characteristics: | |
| CPU MHz: | 2000 |
| FPU: | Integrated |
| CPU(s) enabled: | 4 cores, 1 chip, 4 cores/chip |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 4 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 12 GB (3 X 4 GB PC3-8500R running at 800 MHz) |
| Disk Subsystem: | 1x73 GB SATA2, 10000 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SUSE Linux Enterprise Server 10 (x86_64) SP2 with patch Linux kernel 20090119, Kernel 2.6.16.60-0.34-smp |
| Compiler: | Intel C++ Compiler Professional 11.0 for Linux Build 20090131 Package ID: l_cproc_p_11.0.081 |
| Auto Parallel: | No |
| File System: | ReiserFS |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | MicroQuill SmartHeap Library 8.1 Binutils 2.18.50.0.7.20080502 |

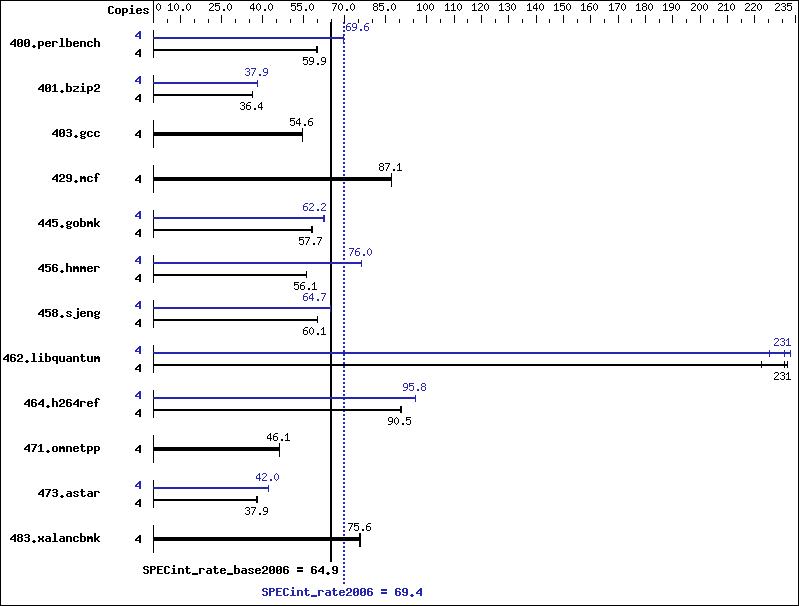

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 4 | 652 | 59.9 | 654 | 59.7 | 653 | 59.9 | 4 | 561 | 69.7 | 562 | 69.6 | 563 | 69.5 |
| 401.bzip2 | 4 | 1060 | 36.4 | 1063 | 36.3 | 1061 | 36.4 | 4 | 1018 | 37.9 | 1019 | 37.9 | 1017 | 37.9 |
| 403.gcc | 4 | 592 | 54.4 | 589 | 54.6 | 590 | 54.6 | 4 | 592 | 54.4 | 589 | 54.6 | 590 | 54.6 |
| 429.mcf | 4 | 418 | 87.2 | 419 | 87.1 | 419 | 87.1 | 4 | 418 | 87.2 | 419 | 87.1 | 419 | 87.1 |
| 445.gobmk | 4 | 727 | 57.7 | 728 | 57.7 | 723 | 58.0 | 4 | 671 | 62.5 | 675 | 62.2 | 675 | 62.2 |
| 456.hmmer | 4 | 666 | 56.1 | 666 | 56.0 | 665 | 56.1 | 4 | 491 | 76.0 | 491 | 76.0 | 491 | 76.1 |
| 458.sjeng | 4 | 804 | 60.2 | 805 | 60.1 | 806 | 60.1 | 4 | 748 | 64.7 | 748 | 64.7 | 749 | 64.6 |
| 462.libquantum | 4 | 359 | 231 | 373 | 222 | 357 | 232 | 4 | 359 | 231 | 356 | 233 | 368 | 225 |
| 464.h264ref | 4 | 978 | 90.5 | 978 | 90.5 | 977 | 90.6 | 4 | 924 | 95.8 | 923 | 95.9 | 924 | 95.8 |
| 471.omnetpp | 4 | 543 | 46.1 | 543 | 46.0 | 543 | 46.1 | 4 | 543 | 46.1 | 543 | 46.0 | 543 | 46.1 |
| 473.astar | 4 | 739 | 38.0 | 742 | 37.9 | 740 | 37.9 | 4 | 668 | 42.0 | 669 | 42.0 | 668 | 42.0 |
| 483.xalancbmk | 4 | 364 | 75.8 | 366 | 75.5 | 365 | 75.6 | 4 | 364 | 75.8 | 366 | 75.5 | 365 | 75.6 |
Submit Notes
The config file option 'submit' was used. numactl was used to bind copies to the cores
Operating System Notes
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run
Platform Notes
Default BIOS settings were used.
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -static -inline-calloc -opt-malloc-options=3 -opt-prefetch |
C++ benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L/opt/SmartHeap_8.1/lib -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc | |
| 401.bzip2: | /opt/intel/Compiler/11.0/081/bin/intel64/icc |
| 456.hmmer: | /opt/intel/Compiler/11.0/081/bin/intel64/icc |
| 458.sjeng: | /opt/intel/Compiler/11.0/081/bin/intel64/icc |
C++ benchmarks (except as noted below):
| icpc | |
| 473.astar: | /opt/intel/Compiler/11.0/081/bin/intel64/icpc |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 473.astar: | -DSPEC_CPU_LP64 |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -ansi-alias -opt-prefetch |
| 401.bzip2: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -opt-prefetch -ansi-alias -auto-ilp32 |
| 403.gcc: | basepeak = yes |
| 429.mcf: | basepeak = yes |
| 445.gobmk: | -xSSE4.2(pass 2) -prof-gen(pass 1) -prof-use(pass 2) -O2 -ipo -no-prec-div -ansi-alias |
| 456.hmmer: | -xSSE4.2 -ipo -O3 -no-prec-div -static -unroll2 -ansi-alias -auto-ilp32 |
| 458.sjeng: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll4 -auto-ilp32 |
| 462.libquantum: | -xSSE4.2 -ipo -O3 -no-prec-div -static -opt-malloc-options=3 -opt-prefetch |
| 464.h264ref: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll2 -ansi-alias |
C++ benchmarks:
| 471.omnetpp: | basepeak = yes |
| 473.astar: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=routine -auto-ilp32 -Wl,-z,muldefs -L/opt/SmartHeap_8.1/lib64 -lsmartheap64 |
| 483.xalancbmk: | basepeak = yes |
