| CPU2006 license: | 19 | Test date: | Jul-2009 |
|---|---|---|---|
| Test sponsor: | Fujitsu | Hardware Availability: | Apr-2009 |
| Tested by: | Fujitsu | Software Availability: | May-2009 |
| Hardware | |
|---|---|
| CPU Name: | Intel Core 2 Duo E7400 |
| CPU Characteristics: | |
| CPU MHz: | 2800 |
| FPU: | Integrated |
| CPU(s) enabled: | 2 cores, 1 chip, 2 cores/chip |
| CPU(s) orderable: | 1 chip |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 3 MB I+D on chip per chip |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 2 GB (1x2 GB PC2-6400U-666-12 SDRAM) |
| Disk Subsystem: | 1 x 250 GB SATA 7200 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Windows Vista Business w/ SP1 (64-bit) |
| Compiler: | Intel C++ Compiler Professional 11.1 for IA32 Build 20090511 Package ID: w_cproc_p_11.1.035 Microsoft Visual Studio 2008 w/ SP1 (for libraries) |
| Auto Parallel: | No |
| File System: | NTFS |
| System State: | Default |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32-bit |
| Other Software: | SmartHeap Library Version 9.01 from http://www.microquill.com/ |

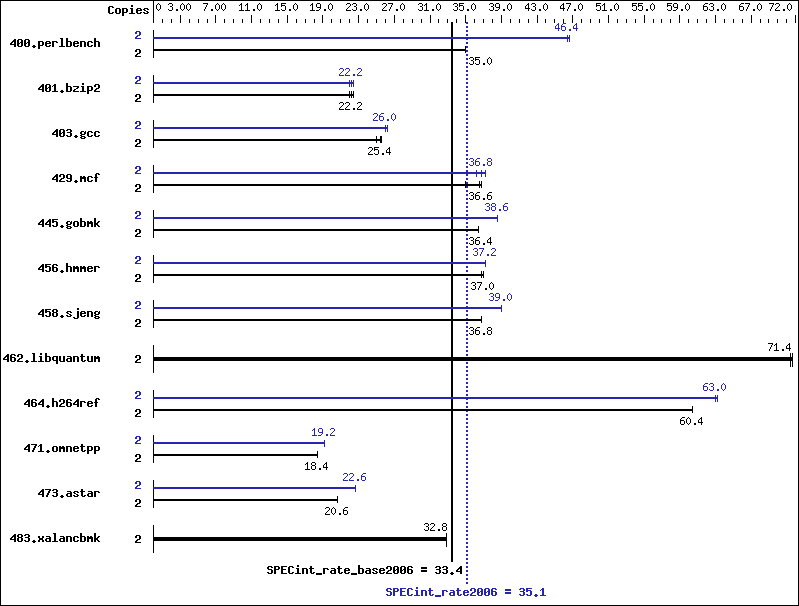

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 2 | 558 | 35.0 | 559 | 35.0 | 558 | 35.0 | 2 | 420 | 46.6 | 421 | 46.4 | 421 | 46.4 |
| 401.bzip2 | 2 | 861 | 22.4 | 868 | 22.2 | 877 | 22.0 | 2 | 878 | 22.0 | 862 | 22.4 | 868 | 22.2 |
| 403.gcc | 2 | 630 | 25.6 | 646 | 25.0 | 636 | 25.4 | 2 | 617 | 26.2 | 620 | 26.0 | 617 | 26.0 |
| 429.mcf | 2 | 497 | 36.8 | 520 | 35.0 | 499 | 36.6 | 2 | 503 | 36.2 | 490 | 37.2 | 496 | 36.8 |
| 445.gobmk | 2 | 575 | 36.4 | 575 | 36.4 | 575 | 36.4 | 2 | 544 | 38.6 | 544 | 38.6 | 544 | 38.6 |
| 456.hmmer | 2 | 506 | 36.8 | 505 | 37.0 | 505 | 37.0 | 2 | 501 | 37.2 | 500 | 37.2 | 501 | 37.2 |
| 458.sjeng | 2 | 656 | 36.8 | 656 | 36.8 | 657 | 36.8 | 2 | 620 | 39.0 | 621 | 39.0 | 620 | 39.0 |
| 462.libquantum | 2 | 580 | 71.4 | 581 | 71.4 | 578 | 71.6 | 2 | 580 | 71.4 | 581 | 71.4 | 578 | 71.6 |
| 464.h264ref | 2 | 733 | 60.4 | 734 | 60.4 | 734 | 60.4 | 2 | 701 | 63.2 | 703 | 63.0 | 703 | 63.0 |
| 471.omnetpp | 2 | 677 | 18.4 | 676 | 18.4 | 677 | 18.4 | 2 | 650 | 19.2 | 650 | 19.2 | 650 | 19.2 |
| 473.astar | 2 | 681 | 20.6 | 680 | 20.6 | 680 | 20.6 | 2 | 624 | 22.6 | 623 | 22.6 | 623 | 22.6 |
| 483.xalancbmk | 2 | 420 | 32.8 | 421 | 32.8 | 421 | 32.8 | 2 | 420 | 32.8 | 421 | 32.8 | 421 | 32.8 |
Submit Notes
The config file option 'submit' was used. 'start /b /wait /affinity' command is used to bind CPU(s) to processors.
Operating System Notes
Screen Saver was disabled Power scheme was modified to Always On; Turn off monitor: Never; Turn off hard disks: Never
Platform Notes
BIOS default settings have been used.
Base Portability Flags
| 403.gcc: | -DSPEC_CPU_WIN32 |
| 464.h264ref: | -DSPEC_CPU_NO_INTTYPES -DWIN32 |
| 483.xalancbmk: | -Qoption,cpp,--no_wchar_t_keyword |
Base Optimization Flags
C benchmarks:
| -QxSSE4.1 -Qipo -O3 -Qprec-div- -Qopt-prefetch /F512000000 |
C++ benchmarks:
| -QxSSE4.1 -Qipo -O3 -Qprec-div- -Qopt-prefetch -Qcxx-features /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
Peak Portability Flags
| 403.gcc: | -DSPEC_CPU_WIN32 |
| 464.h264ref: | -DSPEC_CPU_NO_INTTYPES -DWIN32 |
| 483.xalancbmk: | -Qoption,cpp,--no_wchar_t_keyword |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -QxSSE4.1(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qansi-alias -Qopt-prefetch /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
| 401.bzip2: | -QxSSE4.1(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qopt-prefetch -Qansi-alias /F512000000 |
| 403.gcc: | -QxSSE4.1(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qopt-prefetch /F512000000 |
| 429.mcf: | -QxSSE4.1 -Qipo -O3 -Qprec-div- -Qopt-prefetch /F512000000 |
| 445.gobmk: | -QxSSE4.1(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O2 -Qprec-div- -Qansi-alias /F512000000 |
| 456.hmmer: | -QxSSE4.1 -Qipo -O3 -Qprec-div- -Qunroll2 -Qansi-alias /F512000000 |
| 458.sjeng: | -QxSSE4.1(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qunroll4 /F512000000 |
| 462.libquantum: | basepeak = yes |
| 464.h264ref: | -QxSSE4.1(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qunroll2 -Qansi-alias /F512000000 |
C++ benchmarks:
| 471.omnetpp: | -QxSSE4.1(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qansi-alias -Qopt-ra-region-strategy=block /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
| 473.astar: | -QxSSE4.1(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qansi-alias -Qopt-ra-region-strategy=routine /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
| 483.xalancbmk: | basepeak = yes |
