CPU2006 license: | 6 | Test date: | Jul-2009 |
---|---|---|---|
Test sponsor: | Sun Microsystems | Hardware Availability: | Jul-2009 |
Tested by: | Sun Microsystems | Software Availability: | Apr-2009 |
Hardware | |
---|---|
CPU Name: | AMD Opteron 2435 |
CPU Characteristics: | |
CPU MHz: | 2600 |
FPU: | Integrated |
CPU(s) enabled: | 12 cores, 2 chips, 6 cores/chip |
CPU(s) orderable: | 1,2 chips |
Primary Cache: | 64 KB I + 64 KB D on chip per core |
Secondary Cache: | 512 KB I+D on chip per core |
L3 Cache: | 6 MB I+D on chip per chip |
Other Cache: | None |
Memory: | 32 GB (16x2GB, DDR2-667, CL5, Reg, Dual Rank) |
Disk Subsystem: | 1 x 300 GB SATA 10 K RPM |
Other Hardware: | None |
Software | |
---|---|
Operating System: | SuSE Linux Enterprise Server 10 (x86_64) SP2, Kernel 2.6.16.60-0.21-smp |
Compiler: | PGI Server Complete Version 8.0 x86 Open64 4.2.2 Compiler Suite (from AMD) |
Auto Parallel: | Yes |
File System: | ReiserFS |
System State: | Run level 3 (Full multiuser with network) |
Base Pointers: | 64-bit |
Peak Pointers: | 32/64-bit |
Other Software: | binutils 2.18 |

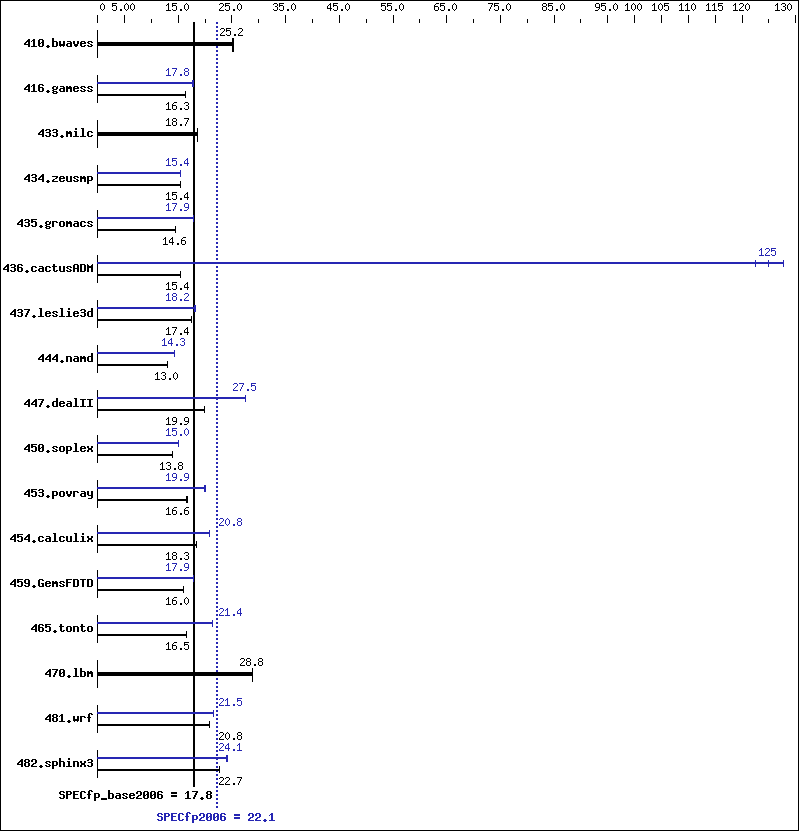

Benchmark | Base | Peak | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
410.bwaves | 540 | 25.2 | 541 | 25.1 | 539 | 25.2 | 540 | 25.2 | 541 | 25.1 | 539 | 25.2 |
416.gamess | 1196 | 16.4 | 1198 | 16.3 | 1200 | 16.3 | 1102 | 17.8 | 1103 | 17.8 | 1104 | 17.7 |
433.milc | 492 | 18.7 | 492 | 18.7 | 492 | 18.7 | 492 | 18.7 | 492 | 18.7 | 492 | 18.7 |
434.zeusmp | 592 | 15.4 | 592 | 15.4 | 592 | 15.4 | 590 | 15.4 | 590 | 15.4 | 591 | 15.4 |
435.gromacs | 490 | 14.6 | 490 | 14.6 | 490 | 14.6 | 399 | 17.9 | 399 | 17.9 | 399 | 17.9 |
436.cactusADM | 780 | 15.3 | 773 | 15.5 | 778 | 15.4 | 93.6 | 128 | 95.6 | 125 | 97.6 | 122 |
437.leslie3d | 540 | 17.4 | 541 | 17.4 | 541 | 17.4 | 520 | 18.1 | 517 | 18.2 | 517 | 18.2 |
444.namd | 618 | 13.0 | 617 | 13.0 | 618 | 13.0 | 560 | 14.3 | 560 | 14.3 | 561 | 14.3 |
447.dealII | 576 | 19.9 | 576 | 19.9 | 576 | 19.9 | 416 | 27.5 | 416 | 27.5 | 416 | 27.5 |
450.soplex | 602 | 13.8 | 602 | 13.8 | 602 | 13.8 | 555 | 15.0 | 555 | 15.0 | 555 | 15.0 |
453.povray | 320 | 16.6 | 321 | 16.6 | 319 | 16.7 | 267 | 19.9 | 266 | 20.0 | 267 | 19.9 |
454.calculix | 450 | 18.3 | 450 | 18.3 | 450 | 18.3 | 396 | 20.8 | 395 | 20.9 | 396 | 20.8 |
459.GemsFDTD | 661 | 16.0 | 662 | 16.0 | 661 | 16.0 | 593 | 17.9 | 593 | 17.9 | 593 | 17.9 |
465.tonto | 595 | 16.5 | 593 | 16.6 | 595 | 16.5 | 459 | 21.4 | 459 | 21.4 | 459 | 21.4 |
470.lbm | 477 | 28.8 | 477 | 28.8 | 476 | 28.9 | 477 | 28.8 | 477 | 28.8 | 476 | 28.9 |
481.wrf | 537 | 20.8 | 536 | 20.8 | 538 | 20.8 | 518 | 21.5 | 520 | 21.5 | 520 | 21.5 |
482.sphinx3 | 861 | 22.6 | 860 | 22.7 | 860 | 22.7 | 810 | 24.1 | 811 | 24.0 | 808 | 24.1 |
The config file option 'submit' was used. 'numactl' was used to bind copies to the cores. See the configuration file for details.
'ulimit -s unlimited' was used to set environment stack size 'ulimit -l 2097152' was used to set environment locked pages in memory limit Set vm/nr_hugepages=5400 in /etc/sysctl.conf mount -t hugetlbfs nodev /mnt/hugepages
Default BIOS settings used except: DCT Unganged Mode set to "Always" to enable Unganged Mode
Environment variables set by runspec before the start of the run: HUGETLB_LIMIT = "450" LD_LIBRARY_PATH = "/data1/SPECcpu2006v1.1/amd0905is-libs/64:/data1/SPECcpu2006v1.1/amd0905is-libs/32" NCPUS = "12" PGI_HUGE_PAGES = "450" The x86 Open64 Compiler Suite is only available from (and supported by) AMD at http://developer.amd.com/cpu/open64.
pgcc |
pgcpp |
pgf95 |
pgcc pgf95 |
410.bwaves: | -DSPEC_CPU_LP64 |
416.gamess: | -DSPEC_CPU_LP64 |
433.milc: | -DSPEC_CPU_LP64 |
434.zeusmp: | -DSPEC_CPU_LP64 |
435.gromacs: | -DSPEC_CPU_LP64 -Mnomain |
436.cactusADM: | -DSPEC_CPU_LP64 -Mnomain |
437.leslie3d: | -DSPEC_CPU_LP64 |
444.namd: | -DSPEC_CPU_LP64 |
447.dealII: | -DSPEC_CPU_LP64 |
450.soplex: | -DSPEC_CPU_LP64 |
453.povray: | -DSPEC_CPU_LP64 |
454.calculix: | -DSPEC_CPU_LP64 -Mnomain |
459.GemsFDTD: | -DSPEC_CPU_LP64 |
465.tonto: | -DSPEC_CPU_LP64 |
470.lbm: | -DSPEC_CPU_LP64 |
481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX |
482.sphinx3: | -DSPEC_CPU_LP64 |
-fastsse -Msmartalloc=huge -Mfprelaxed -Mipa=fast -Mipa=inline -tp shanghai-64 -Bstatic_pgi |
-fastsse -Msmartalloc=huge -Mfprelaxed --zc_eh -Mipa=fast -Mipa=inline -tp shanghai-64 -Bstatic_pgi |
-fastsse -Msmartalloc=huge -Mfprelaxed -Mvect=short -Mipa=fast -Mipa=inline -tp shanghai-64 -Bstatic_pgi |
-fastsse -Msmartalloc=huge -Mfprelaxed -Mipa=fast -Mipa=inline -tp shanghai-64 -Mvect=short -Bstatic_pgi |
-Mipa=jobs:4 |
-Mipa=jobs:4 |
-Mipa=jobs:4 |
-Mipa=jobs:4 |
pgcc |
openCC | |
444.namd: | pgcpp |
openf95 | |
410.bwaves: | pgf95 |
434.zeusmp: | pgf95 |
437.leslie3d: | pgf95 |
pgcc pgf95 | |
435.gromacs: | opencc openf95 |
410.bwaves: | -DSPEC_CPU_LP64 |
416.gamess: | -DSPEC_CPU_LP64 |
433.milc: | -DSPEC_CPU_LP64 |
434.zeusmp: | -DSPEC_CPU_LP64 |
435.gromacs: | -DSPEC_CPU_LP64 |
436.cactusADM: | -DSPEC_CPU_LP64 -Mnomain |
437.leslie3d: | -DSPEC_CPU_LP64 |
444.namd: | -DSPEC_CPU_LP64 |
453.povray: | -DSPEC_CPU_LP64 |
454.calculix: | -DSPEC_CPU_LP64 -Mnomain |
459.GemsFDTD: | -DSPEC_CPU_LP64 |
465.tonto: | -DSPEC_CPU_LP64 |
470.lbm: | -DSPEC_CPU_LP64 |
481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX |
482.sphinx3: | -DSPEC_CPU_LP64 |
433.milc: | basepeak = yes |
470.lbm: | basepeak = yes |
482.sphinx3: | -Mpfi=indirect(pass 1) -Mpfo=indirect(pass 2) -Mipa=fast(pass 2) -Mipa=inline(pass 2) -fastsse -Mfprelaxed -Msmartalloc -tp shanghai-64 -Bstatic_pgi |
410.bwaves: | basepeak = yes |
416.gamess: | -march=barcelona -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -O2 -OPT:Ofast -OPT:ro=3 -OPT:unroll_size=256 -HP:bdt=2m:heap=2m |
434.zeusmp: | -fastsse -Mfprelaxed -Mprefetch=distance:8 -Mprefetch=t0 -Msmartalloc=huge -Msmartalloc=hugebss -Mipa=fast -Mipa=inline -tp shanghai-64 -Bstatic_pgi |
437.leslie3d: | -Mpfi=indirect(pass 1) -Mpfo=indirect(pass 2) -Mipa=fast(pass 2) -Mipa=inline(pass 2) -fastsse -Mvect=fuse -Msmartalloc=huge -Mprefetch=distance:8 -Mprefetch=t0 -Mfprelaxed -tp shanghai-64 -Bstatic_pgi |
459.GemsFDTD: | -march=barcelona -Ofast -LNO:fission=2 -LNO:simd=2 -LNO:prefetch_ahead=1 -CG:load_exe=0 -HP |
465.tonto: | -march=barcelona -Ofast -OPT:alias=no_f90_pointer_alias -LNO:blocking=off -CG:load_exe=1 -IPA:plimit=525 -HP |
435.gromacs: | -march=barcelona -Ofast -OPT:rsqrt=2 -HP:bdt=2m:heap=2m |
436.cactusADM: | -fastsse -Mconcur -Msmartalloc=huge -Mfprelaxed -Mipa=fast -Mipa=inline -tp shanghai-64 -Bstatic_pgi |
454.calculix: | -Mpfi=indirect(pass 1) -Mpfo=indirect(pass 2) -Mipa=fast(pass 2) -Mipa=inline(pass 2) -fastsse -Mvect=short -Msmartalloc=huge -Mprefetch=t0 -Mpre -Mfprelaxed -tp shanghai-64 -Bstatic_pgi |
481.wrf: | -fastsse -Mvect=noaltcode -Msmartalloc=huge -Mprefetch=distance:8 -Mfprelaxed -tp shanghai-64 -Bstatic_pgi |
-Mipa=jobs:4(pass 2) |
444.namd: | -Mipa=jobs:4(pass 2) |
410.bwaves: | -Mipa=jobs:4 |
434.zeusmp: | -Mipa=jobs:4 |
437.leslie3d: | -Mipa=jobs:4(pass 2) |
436.cactusADM: | -Mipa=jobs:4 |
454.calculix: | -Mipa=jobs:4(pass 2) |
