SPEC® CINT2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Fujitsu

Fujitsu SPARC Enterprise T5240

CPU2006 license: 19 Test date: Feb-2009
Test sponsor: Fujitsu Hardware Availability: Jul-2009
Tested by: Sun Microsystems Software Availability: Jun-2009

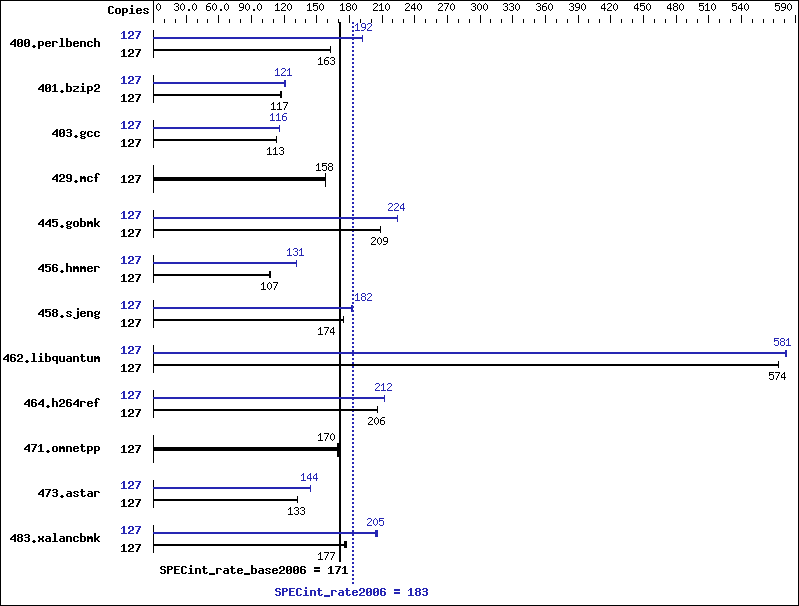

Benchmark results graph
Hardware
CPU Name: UltraSPARC T2 Plus
CPU Characteristics:
CPU MHz: 1582
FPU: Integrated
CPU(s) enabled: 16 cores, 2 chips, 8 cores/chip, 8 threads/core
CPU(s) orderable: 2 chips
Primary Cache: 16 KB I + 8 KB D on chip per core
Secondary Cache: 4 MB I+D on chip per chip
L3 Cache: None
Other Cache: None
Memory: 128 GB (32 x 4 GB)
Disk Subsystem: 748 GB RAID 0 using Solaris Volume Manager
on 8x 10K RPM SUN146G SAS
blocksize 384 KB
Other Hardware: None
Software
Operating System: Solaris 10 10/08
Compiler: Sun Studio 12 Update 1 and gccfss V4.2.1
(see additional detail below)
Auto Parallel: No
File System: ufs
System State: Default
Base Pointers: 32-bit
Peak Pointers: 32-bit
Other Software: None

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 127 7625 163 7626 163 7625 163 127 6466 192 6457 192 6462 192
401.bzip2 127 10515 117 10469 117 10439 117 127 10149 121 10148 121 10140 121
403.gcc 127 9046 113 9051 113 9020 113 127 8816 116 8813 116 8816 116
429.mcf 127 7335 158 7332 158 7325 158 127 7335 158 7332 158 7325 158
445.gobmk 127 6385 209 6397 208 6385 209 127 5936 224 5938 224 5943 224
456.hmmer 127 11063 107 11077 107 11057 107 127 9010 132 9041 131 9035 131
458.sjeng 127 8807 174 8792 175 8815 174 127 8422 182 8427 182 8434 182
462.libquantum 127 4583 574 4583 574 4580 575 127 4533 581 4534 580 4528 581
464.h264ref 127 13643 206 13632 206 13629 206 127 13261 212 13260 212 13261 212
471.omnetpp 127 4668 170 4692 169 4663 170 127 4668 170 4692 169 4663 170
473.astar 127 6722 133 6722 133 6719 133 127 6193 144 6186 144 6184 144
483.xalancbmk 127 4962 177 4945 177 4983 176 127 4292 204 4275 205 4264 206

Compiler Invocation Notes


 This result was measured with pre-release build 36.0
 of Sun Studio 12 Update 1

 Peak also uses "GCC for SPARC Systems 4.2.1", which
 combines gcc with the Sun Code Generator for SPARC
 systems.  It is invoked as "gcc", and accepts source
 code compatible with GCC 4.2.
 For more information, including support, see
      http://cooltools.sunsource.net/gcc/

Submit Notes


 A processor set was created using
   psrset -c 1-127
 and the runspec process was placed into the set using
   psrset -e 1
 The config file option 'submit' was used to select specific
 processors within the set, along with the pbind command.

Operating System Notes


 ulimit -s 131072 was used to allow the stack to grow
 up to 131072 KB (aka 128 MB).  Note that saying "131072"
 is preferable to "unlimited", because there is a tradeoff
 between space for the stack vs. space for the heap.


 /etc/system parameters
    autoup=600
       Causes pages older than the listed number of seconds to
       be written by fsflush.
    bufhwm=3000
       Memory byte limit for caching I/O buffers
    segmap_percent=1
       Set maximum percent memory for file system cache
    tune_t_fsflushr=10
       Controls how many seconds elapse between runs of the
       page flush daemon, fsflush.
    tsb_rss_factor=128
       Suggests that the the size of the TSB (Translation Storage Buffer)
       may be increased if it is more than 25% (128/512) full.  Doing so
       may reduce TSB traps, at the cost of additional kernel memory.

 The "webconsole" service was turned off using
     svcadm disable webconsole

 The system had 206 GB of swap space.
 The ufs fragment size was set to 8192

Platform Notes


 This result was measured on a Sun SPARC Enterprise T5240.
 The Sun SPARC Enterprise T5240 and the Fujitsu SPARC
 Enterprise T5240 are electrically equivalent.

Base Compiler Invocation

C benchmarks:

 cc

C++ benchmarks:

 CC

Base Portability Flags

400.perlbench:  -DSPEC_CPU_SOLARIS_SPARC
403.gcc:  -DSPEC_CPU_SOLARIS
462.libquantum:  -DSPEC_CPU_SOLARIS
483.xalancbmk:  -DSPEC_CPU_SOLARIS

Base Optimization Flags

C benchmarks:

 -g   -fast   -xipo=2   -xpagesize=4M   -xprefetch=no%auto   -xalias_level=std   -M /usr/lib/ld/map.bssalign

C++ benchmarks:

 -g0   -library=stlport4   -fast   -xipo=2   -xpagesize=4M   -xprefetch=no%auto   -xdepend   -xalias_level=compatible   -M /usr/lib/ld/map.bssalign

Base Other Flags

C benchmarks:

 -xjobs=32   -V   -#

C++ benchmarks:

 -xjobs=32   -verbose=diags,version

Peak Compiler Invocation

C benchmarks (except as noted below):

 cc
403.gcc:  gcc
456.hmmer:  gcc

C++ benchmarks:

 CC

Peak Portability Flags

400.perlbench:  -DSPEC_CPU_SOLARIS_SPARC
462.libquantum:  -DSPEC_CPU_SOLARIS
483.xalancbmk:  -DSPEC_CPU_SOLARIS

Peak Optimization Flags

C benchmarks:

400.perlbench:  -g   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xpagesize=4M   -xprefetch=no%auto   -M /usr/lib/ld/map.bssalign   -xalias_level=std   -xipo=2   -Xc   -xrestrict   -lfast
401.bzip2:  -g   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xpagesize=4M   -M /usr/lib/ld/map.bssalign   -xalias_level=strong
403.gcc:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xpagesize=4M   -xprefetch=no%auto   -Wl,-M,/usr/lib/ld/map.bssalign   -xipo=2   -xalias_level=std
429.mcf:  basepeak = yes
445.gobmk:  -g   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xpagesize=4M   -xprefetch=no%auto   -M /usr/lib/ld/map.bssalign   -xalias_level=std   -xrestrict
456.hmmer:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xpagesize=4M   -Wl,-M,/usr/lib/ld/map.bssalign   -xipo=2   -xalias_level=std
458.sjeng:  -g   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xpagesize=4M   -xprefetch=no%auto   -M /usr/lib/ld/map.bssalign   -xipo=2
462.libquantum:  -g   -fast   -xpagesize=4M   -xprefetch_level=3   -xprefetch_auto_type=indirect_array_access   -M /usr/lib/ld/map.bssalign   -xipo=2   -xalias_level=std
464.h264ref:  -g   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xpagesize=4M   -xprefetch=no%auto   -M /usr/lib/ld/map.bssalign   -xipo=2   -xalias_level=std

C++ benchmarks:

471.omnetpp:  basepeak = yes
473.astar:  -g0   -library=stlport4   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xpagesize_heap=4M   -xpagesize_stack=64K   -xprefetch=no%auto   -xdepend   -xalias_level=compatible   -M /usr/lib/ld/map.bssalign   -xipo=2   -xarch=v8plusb   -lfast   -lbsdmalloc
483.xalancbmk:  -g0   -library=stlport4   -fast   -xpagesize=4M   -xprefetch=no%auto   -xdepend   -xalias_level=compatible   -M /usr/lib/ld/map.bssalign   -xipo=2   -lfast

Peak Other Flags

C benchmarks (except as noted below):

 -xjobs=32   -V   -#
403.gcc:  -v
456.hmmer:  -v

C++ benchmarks:

 -xjobs=32   -verbose=diags,version

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Sun-Solaris-Studio12-12u1-and-gccfss4.2.r3.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Sun-Solaris-Studio12-12u1-and-gccfss4.2.r3.xml.
