SPEC® CINT2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Dell Inc.

PowerEdge R805 (AMD Opteron 2435, 2.60 GHz)

CPU2006 license: 55 Test date: May-2009
Test sponsor: Dell Inc. Hardware Availability: Jul-2009
Tested by: Dell Inc. Software Availability: Apr-2009

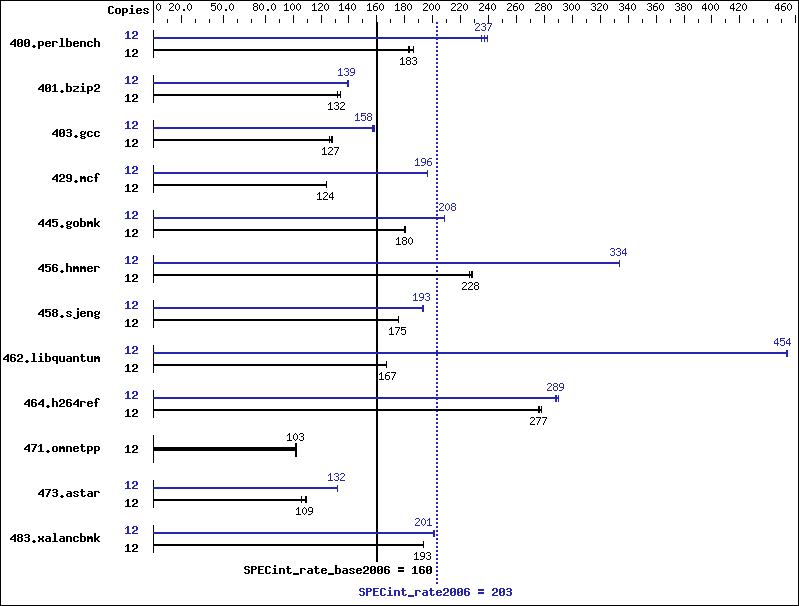

Benchmark results graph
Hardware
CPU Name: AMD Opteron 2435
CPU Characteristics:
CPU MHz: 2600
FPU: Integrated
CPU(s) enabled: 12 cores, 2 chips, 6 cores/chip
CPU(s) orderable: 1,2 chips
Primary Cache: 64 KB I + 64 KB D on chip per core
Secondary Cache: 512 KB I+D on chip per core
L3 Cache: 6 MB I+D on chip per chip
Other Cache: None
Memory: 32 GB (8 x 4 GB DDR2-800)
Disk Subsystem: 1 x 73 GB 15000 RPM SAS
Other Hardware: None
Software
Operating System: Red Hat Enterprise Linux Server release 5.3,
Kernel 2.6.18-128.el5
Compiler: PGI Server Complete Version 8.0
x86 Open64 4.2.2 Compiler Suite (from AMD)
Auto Parallel: No
File System: ext3
System State: Run level 3 (Full multiuser with network)
Base Pointers: 32/64-bit
Peak Pointers: 32/64-bit
Other Software: binutils 2.18
SmartHeap 8.1 32-bit Library for Linux

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 12 631 186 642 183 640 183 12 500 235 494 237 490 239
401.bzip2 12 864 134 879 132 880 132 12 834 139 828 140 831 139
403.gcc 12 767 126 759 127 755 128 12 615 157 613 158 612 158
429.mcf 12 884 124 883 124 884 124 12 558 196 557 197 558 196
445.gobmk 12 699 180 698 180 699 180 12 604 209 605 208 604 208
456.hmmer 12 495 226 490 228 491 228 12 336 333 335 334 336 334
458.sjeng 12 826 176 828 175 829 175 12 752 193 753 193 753 193
462.libquantum 12 1489 167 1490 167 1487 167 12 548 454 548 453 547 454
464.h264ref 12 963 276 960 277 957 278 12 922 288 915 290 920 289
471.omnetpp 12 730 103 730 103 735 102 12 730 103 730 103 735 102
473.astar 12 796 106 771 109 776 109 12 640 132 639 132 638 132
483.xalancbmk 12 429 193 428 193 428 193 12 412 201 412 201 412 201

Submit Notes

The config file option 'submit' was used.
 'numactl' was used to bind copies to the cores.
 See the configuration file for details.

Operating System Notes

 'ulimit -s unlimited' was used to set environment stack size
 'ulimit -l 2097152'  was used to set environment locked pages in memory limit

 Set vm/nr_hugepages=5400 in /etc/sysctl.conf
 mount -t hugetlbfs nodev /mnt/hugepages

General Notes

Environment variables set by runspec before the start of the run:
HUGETLB_LIMIT = "450"
LD_LIBRARY_PATH = "/root/cpu2006-1.1/amd0905is-libs/64:/root/cpu2006-1.1/amd0905is-libs/32"
PGI_HUGE_PAGES = "450"

The x86 Open64 Compiler Suite is only available from (and supported by) AMD at
http://developer.amd.com/cpu/open64

Base Compiler Invocation

C benchmarks:

 opencc

C++ benchmarks:

 openCC

Base Portability Flags

400.perlbench:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX_X64
401.bzip2:  -DSPEC_CPU_LP64
403.gcc:  -DSPEC_CPU_LP64
429.mcf:  -DSPEC_CPU_LP64
445.gobmk:  -DSPEC_CPU_LP64
456.hmmer:  -DSPEC_CPU_LP64
458.sjeng:  -DSPEC_CPU_LP64
462.libquantum:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX
464.h264ref:  -DSPEC_CPU_LP64
483.xalancbmk:  -DSPEC_CPU_LINUX

Base Optimization Flags

C benchmarks:

 -march=barcelona   -Ofast   -CG:local_sched_alg=1   -HP:bdt=2m:heap=2m

C++ benchmarks:

 -march=barcelona   -Ofast   -m32   -INLINE:aggressive=on   -L/root/work/libraries/SmartHeap-8.1/lib -lsmartheap

Peak Compiler Invocation

C benchmarks (except as noted below):

 opencc
456.hmmer:  pgcc

C++ benchmarks (except as noted below):

 openCC
473.astar:  pgcpp

Peak Portability Flags

400.perlbench:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX_X64
401.bzip2:  -DSPEC_CPU_LP64
445.gobmk:  -DSPEC_CPU_LP64
456.hmmer:  -DSPEC_CPU_LP64
458.sjeng:  -DSPEC_CPU_LP64
462.libquantum:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX
464.h264ref:  -DSPEC_CPU_LP64
483.xalancbmk:  -DSPEC_CPU_LINUX

Peak Optimization Flags

C benchmarks:

400.perlbench:  -march=barcelona   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -IPA:plimit=20000   -LNO:opt=0   -OPT:unroll_times_max=8   -OPT:unroll_size=256   -OPT:unroll_level=2   -OPT:keep_ext=on   -WOPT:if_conv=0   -CG:local_sched_alg=1   -CG:unroll_fb_req=on   -HP:bdt=2m:heap=2m
401.bzip2:  -march=barcelona   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -O3   -OPT:alias=disjoint   -OPT:unroll_size=0   -OPT:Ofast   -OPT:goto=off   -INLINE:aggressive=on   -CG:local_sched_alg=1   -m3dnow   -HP:bdt=2m:heap=2m
403.gcc:  -march=barcelona   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -LNO:trip_count=256   -LNO:prefetch_ahead=10   -CG:cmp_peep=on   -m32   -HP:bdt=2m:heap=2m   -GRA:unspill=on
429.mcf:  -march=barcelona   -O3   -ipa   -INLINE:aggressive=on   -CG:gcm=off   -GRA:prioritize_by_density=on   -m32   -HP:bdt=2m:heap=2m
445.gobmk:  -march=barcelona   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -O3   -OPT:alias=restrict   -OPT:unroll_times_max=8   -OPT:unroll_size=256   -OPT:unroll_level=2   -OPT:keep_ext=on   -ipa   -IPA:plimit=750   -IPA:min_hotness=300   -IPA:pu_reorder=1   -LNO:prefetch=1   -LNO:ignore_feedback=off   -CG:p2align=on   -CG:unroll_fb_req=on   -HP:bdt=2m:heap=2m
456.hmmer:  -fastsse   -Mvect=partial   -Munroll=n:8   -Msmartalloc=huge   -Msafeptr   -Mprefetch=t0   -Mfprelaxed   -Mipa=const   -Mipa=ptr   -Mipa=arg   -Mipa=inline   -tp shanghai-64   -Bstatic_pgi
458.sjeng:  -march=barcelona   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -O3   -ipa   -LNO:ignore_feedback=off   -LNO:full_unroll=10   -LNO:fusion=0   -LNO:fission=2   -IPA:pu_reorder=2   -CG:ptr_load_use=0   -OPT:unroll_times_max=8   -INLINE:aggressive=on   -HP:bdt=2m:heap=2m
462.libquantum:  -march=barcelona   -Ofast   -LNO:pf2=0   -CG:gcm=off   -CG:use_prefetchnta=on   -CG:cmp_peep=on   -WOPT:aggstr=0   -HP:bdt=2m:heap=2m   -OPT:alias=disjoint   -INLINE:aggressive=on   -IPA:space=1000   -IPA:plimit=20000
464.h264ref:  -march=barcelona   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -O3   -IPA:plimit=20000   -OPT:alias=disjoint   -LNO:prefetch=0   -CG:ptr_load_use=0   -CG:push_pop_int_saved_regs=off   -HP:bdt=2m:heap=2m

C++ benchmarks:

471.omnetpp:  basepeak = yes
473.astar:  -Mpfi(pass 1)   -Mpfo(pass 2)   -Mipa=fast(pass 2)   -Mipa=inline:6(pass 2)   -fastsse   -O4   -Msmartalloc=huge   -Msafeptr=global   -Mfprelaxed   --zc_eh   -tp shanghai-32   -Bstatic_pgi
483.xalancbmk:  -march=barcelona   -Ofast   -INLINE:aggressive=on   -m32   -CG:cmp_peep=on   -GRA:unspill=on   -TENV:frame_pointer=off   -L/root/work/libraries/SmartHeap-8.1/lib -lsmartheap

Peak Other Flags

C benchmarks:

456.hmmer:  -Mipa=jobs:4

C++ benchmarks:

473.astar:  -Mipa=jobs:4(pass 2)

The flags files that were used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/pgi80_linux_flags.20090710.html,
http://www.spec.org/cpu2006/flags/x86-open64-4.2.2-flags.html,
http://www.spec.org/cpu2006/flags/amd-platform.html.

You can also download the XML flags sources by saving the following links:
http://www.spec.org/cpu2006/flags/pgi80_linux_flags.20090710.xml,
http://www.spec.org/cpu2006/flags/x86-open64-4.2.2-flags.xml,
http://www.spec.org/cpu2006/flags/amd-platform.xml.
