SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Sun Microsystems

Sun Blade X6275 (Intel Xeon X5570 2.93GHz)

SPECfp®2006 = 50.8

CPU2006 license: 6 Test date: Jun-2009
Test sponsor: Sun Microsystems Hardware Availability: Apr-2009
Tested by: Sun Microsystems Software Availability: Jun-2009

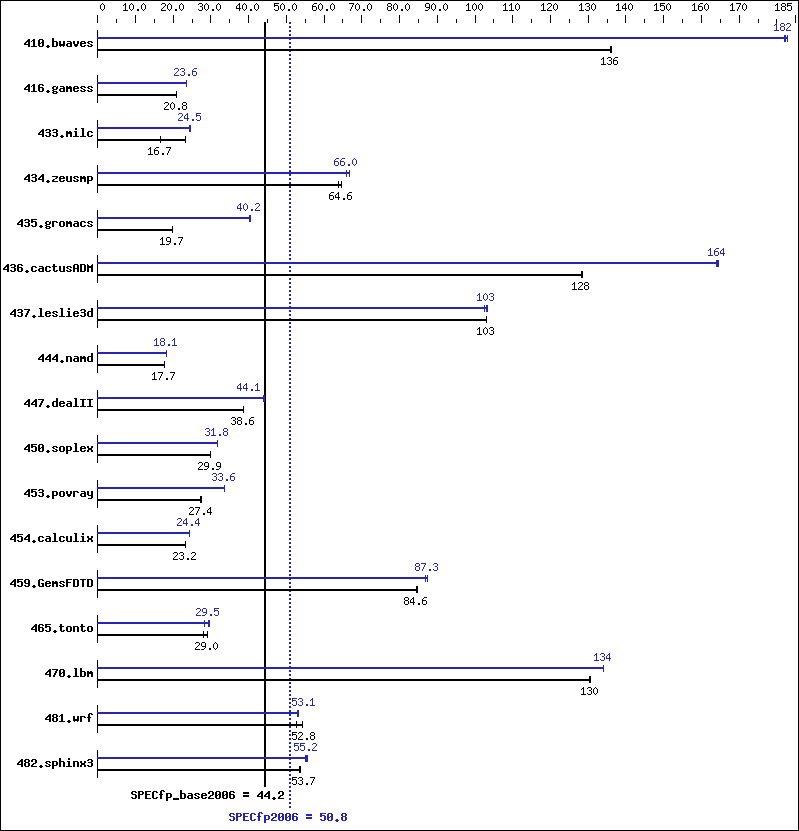

Benchmark results graph
Hardware
CPU Name: Intel Xeon X5570
CPU Characteristics: Intel Turbo Boost Technology up to 3.33 GHz
CPU MHz: 2933
FPU: Integrated
CPU(s) enabled: 8 cores, 2 chips, 4 cores/chip, 2 threads/core
CPU(s) orderable: 1 or 2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
L3 Cache: 8 MB I+D on chip per chip
Other Cache: None
Memory: 24 GB (6 x 4 GB DDR3-1333)
Disk Subsystem: 1 x 24 GB, SAS, Sun FlashDisk
Other Hardware: None
Software
Operating System: OpenSolaris 2009.06
Compiler: Sun Studio 12 Update 1
Auto Parallel: Yes
File System: zfs
System State: Default
Base Pointers: 64-bit
Peak Pointers: 32/64-bit
Other Software: Apache C++ Standard Library V4.2.1

Results Table

Benchmark Base Peak
Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 100   136   99.9 136   100   136   74.6 182   74.4 183   74.5 182
416.gamess 943   20.8 941   20.8 941   20.8 830   23.6 830   23.6 830   23.6
433.milc 550   16.7 396   23.2 556   16.5 375   24.5 375   24.5 377   24.4
434.zeusmp 141   64.6 141   64.6 143   63.8 136   66.7 138   65.9 138   66.0
435.gromacs 362   19.7 362   19.7 362   19.7 178   40.1 177   40.4 178   40.2
436.cactusADM 93.0 129   93.2 128   93.2 128   72.6 164   72.8 164   72.7 164
437.leslie3d 91.1 103   91.2 103   91.2 103   90.9 103   91.6 103   91.2 103
444.namd 453   17.7 453   17.7 453   17.7 442   18.1 443   18.1 442   18.1
447.dealII 296   38.7 296   38.6 296   38.6 260   44.1 259   44.1 259   44.1
450.soplex 278   30.0 279   29.8 279   29.9 263   31.7 262   31.8 262   31.8
453.povray 195   27.3 193   27.6 194   27.4 158   33.6 158   33.6 158   33.6
454.calculix 355   23.2 355   23.2 355   23.2 338   24.4 339   24.4 338   24.4
459.GemsFDTD 125   84.7 125   84.6 125   84.6 122   86.9 121   87.3 121   87.4
465.tonto 353   27.9 339   29.1 339   29.0 334   29.5 334   29.5 347   28.3
470.lbm 105   130   105   131   105   130   102   134   102   134   103   134
481.wrf 205   54.4 212   52.6 212   52.8 209   53.3 210   53.1 210   53.1
482.sphinx3 364   53.5 362   53.8 363   53.7 353   55.2 353   55.2 351   55.5

Compiler Invocation Notes

 The Apache C++ Standard Library V4.2.1 was installed from
 http://stdcxx.apache.org/download.html using:
     alias gmake=specmake
     gmake BUILDTYPE=8D CONFIG=sunpro.config

Operating System Notes

 ulimit -s 131072  (shell): increases stack

 /etc/system parameters
    tune_t_fsflushr=10
    autoup=900

Platform Notes


 AMIBIOS Build Date 1/26/09 ID 07.01.36.00
   Default BIOS settings used except:
   Intel VT-d: Disabled.  VT-d, if enabled, supports
   remapping of I/O DMA transfers for virtualization.

General Notes

Environment variables set by runspec before the start of the run:
OMP_NUM_THREADS = "8"
SUNW_MP_PROCBIND = "true"
SUNW_MP_THR_IDLE = "SPIN"

447.dealII (peak): "apache_stdcxx_4_2_1" src.alt was used.

447.dealII (base): "apache_stdcxx_4_2_1" src.alt was used.

Base Compiler Invocation

C benchmarks:

 cc

C++ benchmarks:

 CC

Fortran benchmarks:

 f90

Benchmarks using both Fortran and C:

 cc   f90

Base Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64
436.cactusADM:  -DSPEC_CPU_LP64
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
450.soplex:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_WORDS_LITTLEENDIAN
482.sphinx3:  -DSPEC_CPU_LP64

Base Optimization Flags

C benchmarks:

 -fast   -xipo=2   -m64   -xvector=simd   -xautopar

C++ benchmarks:

 -fast   -xipo=2   -m64   -xvector=simd   -library=no%Cstd   -I/data1/stdcxx-4.2.1/include   -I/data1/stdcxx-4.2.1/build/include   -L/data1/stdcxx-4.2.1/build/lib   -R/data1/stdcxx-4.2.1/build/lib   -lstd8D

Fortran benchmarks:

 -fast   -xipo=2   -m64   -xvector=simd   -xautopar

Benchmarks using both Fortran and C:

 -fast(cc)   -xipo=2   -m64   -xvector=simd   -xautopar   -fast(f90)

Base Other Flags

C benchmarks:

 -V   -#   -xjobs=16

C++ benchmarks:

 -verbose=diags,version   -xjobs=16

Fortran benchmarks:

 -V   -v   -xjobs=16

Benchmarks using both Fortran and C:

 -V   -#   -xjobs=16   -v

Peak Compiler Invocation

C benchmarks:

 cc

C++ benchmarks:

 CC

Fortran benchmarks:

 f90

Benchmarks using both Fortran and C:

 cc   f90

Peak Portability Flags

436.cactusADM:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_WORDS_LITTLEENDIAN

Peak Optimization Flags

C benchmarks:

433.milc:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -xpagesize=2M
470.lbm:  -fast   -xipo=2   -m64   -xvector=simd   -xautopar   -xreduction   -L/data1/SmartHeap_9/lib -R/data1/SmartHeap_9/lib -lsmartheap_mt64   -lmvec
482.sphinx3:  -fast   -xipo=2   -m64   -xpagesize=2M   -xvector=simd   -xprefetch=no%auto   -xautopar   -xreduction

C++ benchmarks:

444.namd:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -m64   -xpagesize=2M   -xunroll=8   -library=stlport4
447.dealII:  -fast   -xipo=1   -m64   -xpagesize=2M   -xalias_level=compatible   -xdepend   -library=no%Cstd   -I/data1/stdcxx-4.2.1/include   -I/data1/stdcxx-4.2.1/build/include   -L/data1/stdcxx-4.2.1/build/lib   -R/data1/stdcxx-4.2.1/build/lib   -lstd8D
450.soplex:  -fast   -xipo=2   -xpagesize=2M   -xrestrict   -xalias_level=simple   -xprefetch=no%auto   -xdepend   -library=stlport4
453.povray:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -m64   -xpagesize=2M   -xalias_level=compatible   -library=stlport4

Fortran benchmarks:

410.bwaves:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -m64   -xpagesize=2M   -xprefetch=no%auto   -xautopar   -xreduction
416.gamess:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -m64   -xpagesize=2M   -xunroll=1   -qoption iropt -Ainline:cp=19   -qoption iropt -Ainline:rs=50   -qoption iropt -Ainline:irs=30
434.zeusmp:  -fast   -xipo=2   -m64   -xvector=simd   -xautopar   -xreduction
437.leslie3d:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -m64   -xvector=simd   -xautopar   -xreduction   -lumem
459.GemsFDTD:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -m64   -xpagesize=2M   -xvector=simd   -xautopar   -xreduction
465.tonto:  -fast   -xipo=2   -m64   -xpagesize=2M   -xautopar   -stackvar   -xreduction   -xprefetch=no%auto   -xvector=lib   -xalias   -xdepend

Benchmarks using both Fortran and C:

435.gromacs:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast(cc)   -fast(f90)   -xipo=2   -m64   -xpagesize=2M   -fsimple=2   -Qoption ube -fsimple=3   -xprefetch=no%auto   -xautopar   -xreduction
436.cactusADM:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast(cc)   -fast(f90)   -xipo=2   -xaddr32=yes   -m64   -xvector=simd   -xautopar   -W2,-Aparallel:nthreads=16   -Qoption iropt -Aparallel:nthreads=16
454.calculix:  -fast(cc)   -fast(f90)   -xipo=2   -m64   -xpagesize=2M   -xvector=simd
481.wrf:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast(cc)   -fast(f90)   -xipo=2   -m64   -xpagesize=2M   -xvector=lib,simd   -xprefetch=no%auto   -xautopar   -xreduction

Peak Other Flags

C benchmarks:

 -V   -#   -xjobs=16

C++ benchmarks:

 -verbose=diags,version   -xjobs=16

Fortran benchmarks:

 -V   -v   -xjobs=16

Benchmarks using both Fortran and C:

 -V   -#   -xjobs=16   -v

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Sun-OpenSolaris-Studio-x86_64.20090710.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Sun-OpenSolaris-Studio-x86_64.20090710.xml.

SPEC and SPECfp are registered trademarks of the Standard Performance Evaluation Corporation. All other brand and product names appearing in this result are trademarks or registered trademarks of their respective holders.

For questions about this result, please contact the tester.
For other inquiries, please contact webmaster@spec.org
Copyright 2006-2014 Standard Performance Evaluation Corporation
Tested with SPEC CPU2006 v1.1.
Report generated on Wed Jul 23 02:28:25 2014 by SPEC CPU2006 HTML formatter v6932.
Originally published on 7 July 2009.
