| CPU2006 license: | 9006 | Test date: | Apr-2009 |
|---|---|---|---|
| Test sponsor: | NEC Corporation | Hardware Availability: | Apr-2009 |
| Tested by: | NEC Corporation | Software Availability: | Feb-2009 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E5502 |
| CPU Characteristics: | |
| CPU MHz: | 1867 |
| FPU: | Integrated |
| CPU(s) enabled: | 2 cores, 1 chip, 2 cores/chip |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 4 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 24 GB (6 X 4 GB PC3-8500R running at 800 MHz) |
| Disk Subsystem: | 1x146.5 GB SAS, 15000 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SUSE Linux Enterprise Server 10 (x86_64) SP2 with patch Linux kernel 20090119, Kernel 2.6.16.60-0.34-smp |
| Compiler: | Intel C++ Compiler Professional 11.0 for Linux Build 20090131 Package ID: l_cproc_p_11.0.081 |
| Auto Parallel: | No |
| File System: | ReiserFS |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | MicroQuill SmartHeap Library 8.1 Binutils 2.18.50.0.7.20080502 |

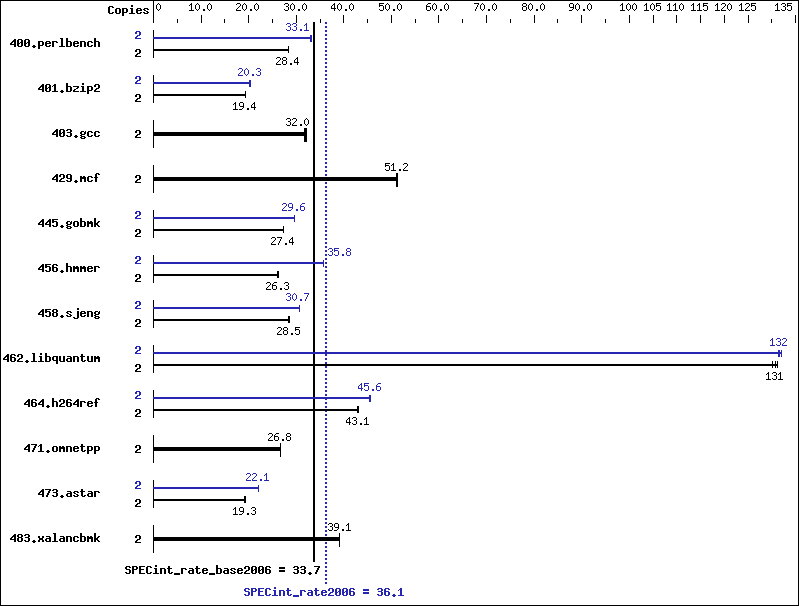

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 2 | 687 | 28.4 | 688 | 28.4 | 688 | 28.4 | 2 | 590 | 33.1 | 592 | 33.0 | 590 | 33.1 |
| 401.bzip2 | 2 | 996 | 19.4 | 999 | 19.3 | 997 | 19.4 | 2 | 954 | 20.2 | 949 | 20.3 | 947 | 20.4 |
| 403.gcc | 2 | 506 | 31.8 | 504 | 32.0 | 502 | 32.1 | 2 | 506 | 31.8 | 504 | 32.0 | 502 | 32.1 |
| 429.mcf | 2 | 356 | 51.2 | 356 | 51.2 | 356 | 51.2 | 2 | 356 | 51.2 | 356 | 51.2 | 356 | 51.2 |
| 445.gobmk | 2 | 765 | 27.4 | 766 | 27.4 | 766 | 27.4 | 2 | 710 | 29.6 | 710 | 29.6 | 710 | 29.6 |
| 456.hmmer | 2 | 710 | 26.3 | 709 | 26.3 | 713 | 26.2 | 2 | 521 | 35.8 | 521 | 35.8 | 521 | 35.8 |
| 458.sjeng | 2 | 848 | 28.5 | 848 | 28.5 | 851 | 28.5 | 2 | 789 | 30.7 | 789 | 30.7 | 789 | 30.7 |
| 462.libquantum | 2 | 318 | 130 | 317 | 131 | 316 | 131 | 2 | 315 | 132 | 314 | 132 | 315 | 131 |
| 464.h264ref | 2 | 1027 | 43.1 | 1027 | 43.1 | 1031 | 42.9 | 2 | 970 | 45.6 | 973 | 45.5 | 969 | 45.7 |
| 471.omnetpp | 2 | 467 | 26.8 | 467 | 26.8 | 467 | 26.8 | 2 | 467 | 26.8 | 467 | 26.8 | 467 | 26.8 |
| 473.astar | 2 | 731 | 19.2 | 726 | 19.3 | 725 | 19.4 | 2 | 636 | 22.1 | 638 | 22.0 | 636 | 22.1 |
| 483.xalancbmk | 2 | 353 | 39.1 | 353 | 39.1 | 353 | 39.1 | 2 | 353 | 39.1 | 353 | 39.1 | 353 | 39.1 |
Submit Notes
The config file option 'submit' was used. numactl was used to bind copies to the cores
Operating System Notes
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run
Platform Notes
Default BIOS settings were used.
General Notes
The NEC Express5800/R120a-1(Intel Xeon E5502), the NEC Express5800/R120a-2(Intel Xeon E5502), the Bull NovaScale R440 E2 (Intel Xeon E5502, 1.86 GHz) and the Bull NovaScale R460 E2 (Intel Xeon E5502, 1.86 GHz) models are electronically equivalent. The results have been measured on a NEC Express5800/R120a-2(Intel Xeon E5502) model.
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -static -inline-calloc -opt-malloc-options=3 -opt-prefetch |
C++ benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L/opt/SmartHeap_8.1/lib -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc | |
| 401.bzip2: | /opt/intel/Compiler/11.0/081/bin/intel64/icc |
| 456.hmmer: | /opt/intel/Compiler/11.0/081/bin/intel64/icc |
| 458.sjeng: | /opt/intel/Compiler/11.0/081/bin/intel64/icc |
C++ benchmarks (except as noted below):
| icpc | |
| 473.astar: | /opt/intel/Compiler/11.0/081/bin/intel64/icpc |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 473.astar: | -DSPEC_CPU_LP64 |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -ansi-alias -opt-prefetch |
| 401.bzip2: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -opt-prefetch -ansi-alias -auto-ilp32 |
| 403.gcc: | basepeak = yes |
| 429.mcf: | basepeak = yes |
| 445.gobmk: | -xSSE4.2(pass 2) -prof-gen(pass 1) -prof-use(pass 2) -O2 -ipo -no-prec-div -ansi-alias |
| 456.hmmer: | -xSSE4.2 -ipo -O3 -no-prec-div -static -unroll2 -ansi-alias -auto-ilp32 |
| 458.sjeng: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll4 -auto-ilp32 |
| 462.libquantum: | -xSSE4.2 -ipo -O3 -no-prec-div -static -opt-malloc-options=3 -opt-prefetch |
| 464.h264ref: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll2 -ansi-alias |
C++ benchmarks:
| 471.omnetpp: | basepeak = yes |
| 473.astar: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=routine -auto-ilp32 -Wl,-z,muldefs -L/opt/SmartHeap_8.1/lib64 -lsmartheap64 |
| 483.xalancbmk: | basepeak = yes |
