| CPU2006 license: | 13 | Test date: | Jan-2009 |
|---|---|---|---|
| Test sponsor: | Intel Corporation | Hardware Availability: | Sep-2007 |
| Tested by: | Intel Corporation | Software Availability: | Nov-2008 |
| Hardware | |
|---|---|
| CPU Name: | AMD Athlon X2 6400+ |
| CPU Characteristics: | |
| CPU MHz: | 3200 |
| FPU: | Integrated |
| CPU(s) enabled: | 2 cores, 1 chip, 2 cores/chip |
| CPU(s) orderable: | 1 chip |
| Primary Cache: | 64 KB I + 64 KB D on chip per core |
| Secondary Cache: | 1 MB I+D on chip per core |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 4 GB (4x1GB DDR2-800 CL5) |
| Disk Subsystem: | Seagate 320 GB SATA, 7200RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Windows Vista Ultimate w/ SP1 (64-bit) |
| Compiler: | Intel C++ Compiler Professional 11.0 for IA32 Build 20080930 Package ID: w_cproc_p_11.0.054 Microsoft Visual Studio 2008 (for libraries) |
| Auto Parallel: | Yes |
| File System: | NTFS |
| System State: | Default |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32-bit |
| Other Software: | SmartHeap Library Version 8.1 from http://www.microquill.com/ |

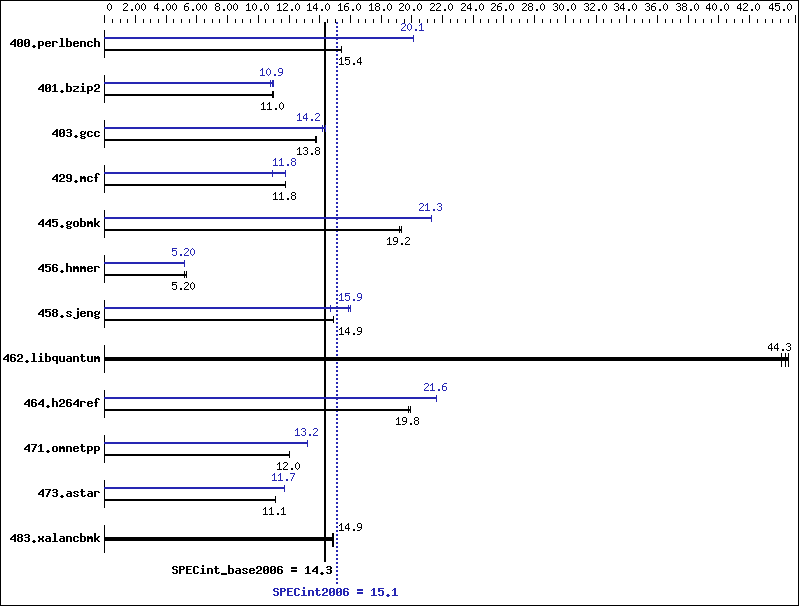

Results Table
| Benchmark | Base | Peak | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
| 400.perlbench | 635 | 15.4 | 634 | 15.4 | 634 | 15.4 | 485 | 20.1 | 485 | 20.1 | 485 | 20.1 |
| 401.bzip2 | 878 | 11.0 | 888 | 10.9 | 874 | 11.0 | 884 | 10.9 | 895 | 10.8 | 877 | 11.0 |
| 403.gcc | 587 | 13.7 | 585 | 13.8 | 583 | 13.8 | 558 | 14.4 | 568 | 14.2 | 568 | 14.2 |
| 429.mcf | 773 | 11.8 | 776 | 11.8 | 774 | 11.8 | 775 | 11.8 | 838 | 10.9 | 776 | 11.8 |
| 445.gobmk | 545 | 19.2 | 546 | 19.2 | 545 | 19.3 | 492 | 21.3 | 492 | 21.3 | 492 | 21.3 |
| 456.hmmer | 1787 | 5.20 | 1799 | 5.20 | 1775 | 5.30 | 1793 | 5.20 | 1798 | 5.20 | 1784 | 5.20 |
| 458.sjeng | 811 | 14.9 | 811 | 14.9 | 811 | 14.9 | 759 | 16.0 | 759 | 15.9 | 821 | 14.7 |
| 462.libquantum | 466 | 44.5 | 469 | 44.1 | 468 | 44.3 | 466 | 44.5 | 469 | 44.1 | 468 | 44.3 |
| 464.h264ref | 1116 | 19.8 | 1115 | 19.9 | 1115 | 19.8 | 1026 | 21.6 | 1026 | 21.6 | 1025 | 21.6 |
| 471.omnetpp | 522 | 12.0 | 522 | 12.0 | 522 | 12.0 | 472 | 13.2 | 472 | 13.2 | 472 | 13.2 |
| 473.astar | 632 | 11.1 | 632 | 11.1 | 631 | 11.1 | 600 | 11.7 | 600 | 11.7 | 600 | 11.7 |
| 483.xalancbmk | 465 | 14.9 | 464 | 14.9 | 465 | 14.8 | 465 | 14.9 | 464 | 14.9 | 465 | 14.8 |
General Notes
Tested systems can be used with Shin-G ATX case, Antec NeoPower 480W power supply Binaries were built on Windows Vista Ultimate (32-bit) OMP_NUM_THREADS set to number of logical processors as seen by the OS KMP_AFFINITY set to physical,0 The system as described on this result page was formerly generally available, but is no longer generally available. It may or may not be supported. This benchmark result is intended to provide perspective on past [power and/or] performance for the hardware and software described on this result page.
Base Portability Flags
| 403.gcc: | -DSPEC_CPU_WIN32 |
| 464.h264ref: | -DSPEC_CPU_NO_INTTYPES -DWIN32 |
| 483.xalancbmk: | -Qoption,cpp,--no_wchar_t_keyword |
Base Optimization Flags
C benchmarks:
| /arch:SSE2 -Qipo -O3 -Qprec-div- -Qopt-prefetch -Qparallel -Qpar-runtime-control -Qvec-guard-write /F512000000 |
C++ benchmarks:
| /arch:SSE2 -Qipo -O3 -Qprec-div- -Qopt-prefetch -Qcxx-features /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
Peak Portability Flags
| 403.gcc: | -DSPEC_CPU_WIN32 |
| 464.h264ref: | -DSPEC_CPU_NO_INTTYPES -DWIN32 |
| 483.xalancbmk: | -Qoption,cpp,--no_wchar_t_keyword |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | /arch:SSE2(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qansi-alias -Qopt-prefetch /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
| 401.bzip2: | /arch:SSE2(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qopt-prefetch -Qansi-alias /F512000000 |
| 403.gcc: | /arch:SSE2(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- /F512000000 |
| 429.mcf: | /arch:SSE2 -Qipo -O3 -Qprec-div- -Qopt-prefetch /F512000000 |
| 445.gobmk: | /arch:SSE2(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O2 -Qprec-div- -Qansi-alias /F512000000 |
| 456.hmmer: | /arch:SSE2(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qunroll2 -Qansi-alias /F512000000 |
| 458.sjeng: | /arch:SSE2(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qunroll4 /F512000000 |
| 462.libquantum: | basepeak = yes |
| 464.h264ref: | Same as 456.hmmer |
C++ benchmarks:
| 471.omnetpp: | /arch:SSE2(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qansi-alias -Qopt-ra-region-strategy=block /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
| 473.astar: | /arch:SSE2(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qansi-alias -Qopt-ra-region-strategy=routine /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
| 483.xalancbmk: | basepeak = yes |
