CPU2006 license: | 55 | Test date: | Apr-2009 |
---|---|---|---|
Test sponsor: | Dell Inc. | Hardware Availability: | Mar-2009 |
Tested by: | Dell Inc. | Software Availability: | Feb-2009 |
Hardware | |
---|---|
CPU Name: | Intel Xeon E5504 |
CPU Characteristics: | |
CPU MHz: | 2000 |
FPU: | Integrated |
CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip |
CPU(s) orderable: | 1,2 chips |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 256 KB I+D on chip per core |
L3 Cache: | 4 MB I+D on chip per chip |
Other Cache: | None |
Memory: | 24 GB (6 x 4 GB DDR3-1066 DR RDIMM downclocked to 800 MHz) |
Disk Subsystem: | 1 x 146 GB 15000 RPM SAS |
Other Hardware: | None |
Software | |
---|---|
Operating System: | SUSE Linux Enterprise Server 10 (x86_64) SP2, Kernel 2.6.16.60-0.21-smp |
Compiler: | Intel C++ and Fortran Compiler Professional 11.0 Build 20090131 Package ID: l_cproc_p_11.0.080, l_cprof_p_11.0.080 |
Auto Parallel: | Yes |
File System: | ReiserFS |
System State: | Run level 3 (multi-user) |
Base Pointers: | 64-bit |
Peak Pointers: | 32/64-bit |
Other Software: | Binutils 2.18.50.0.7.20080502 |

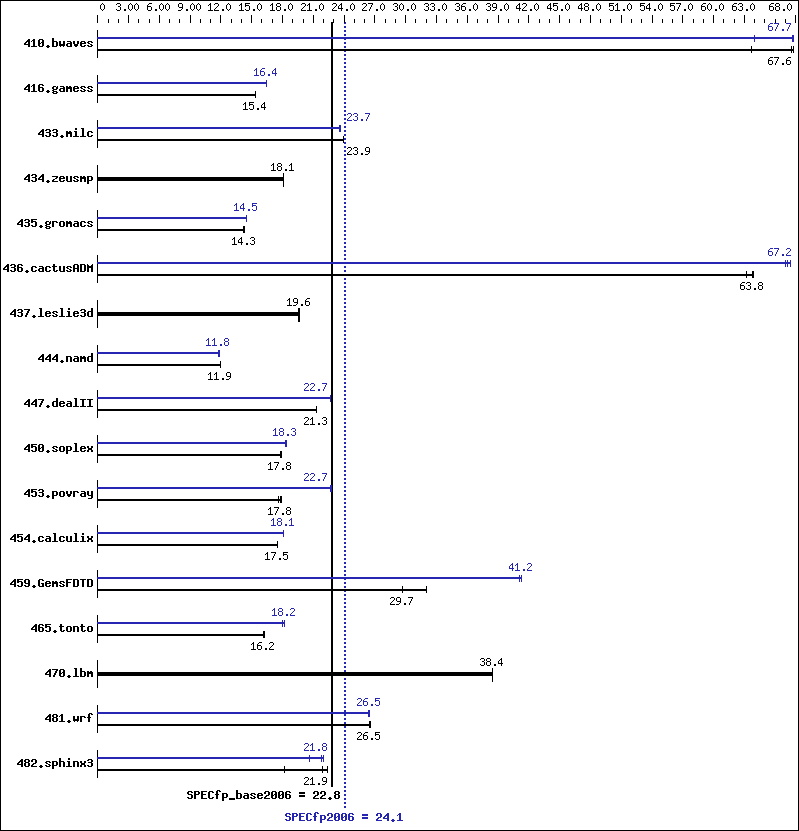

Benchmark | Base | Peak | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
410.bwaves | 213 | 63.7 | 200 | 67.8 | 201 | 67.6 | 212 | 64.0 | 201 | 67.7 | 201 | 67.7 |
416.gamess | 1272 | 15.4 | 1274 | 15.4 | 1276 | 15.3 | 1194 | 16.4 | 1191 | 16.4 | 1191 | 16.4 |
433.milc | 383 | 24.0 | 384 | 23.9 | 384 | 23.9 | 387 | 23.7 | 389 | 23.6 | 388 | 23.7 |
434.zeusmp | 503 | 18.1 | 502 | 18.1 | 502 | 18.1 | 503 | 18.1 | 502 | 18.1 | 502 | 18.1 |
435.gromacs | 501 | 14.3 | 500 | 14.3 | 502 | 14.2 | 492 | 14.5 | 493 | 14.5 | 494 | 14.5 |
436.cactusADM | 189 | 63.2 | 187 | 63.8 | 187 | 63.9 | 177 | 67.5 | 178 | 67.0 | 178 | 67.2 |
437.leslie3d | 477 | 19.7 | 478 | 19.6 | 480 | 19.6 | 477 | 19.7 | 478 | 19.6 | 480 | 19.6 |
444.namd | 672 | 11.9 | 673 | 11.9 | 673 | 11.9 | 679 | 11.8 | 680 | 11.8 | 679 | 11.8 |
447.dealII | 537 | 21.3 | 537 | 21.3 | 537 | 21.3 | 505 | 22.6 | 505 | 22.7 | 505 | 22.7 |
450.soplex | 468 | 17.8 | 468 | 17.8 | 467 | 17.9 | 454 | 18.4 | 455 | 18.3 | 455 | 18.3 |
453.povray | 298 | 17.9 | 298 | 17.8 | 303 | 17.6 | 234 | 22.7 | 234 | 22.7 | 234 | 22.7 |
454.calculix | 472 | 17.5 | 472 | 17.5 | 472 | 17.5 | 457 | 18.1 | 457 | 18.1 | 457 | 18.1 |
459.GemsFDTD | 331 | 32.1 | 357 | 29.7 | 357 | 29.7 | 258 | 41.0 | 257 | 41.3 | 257 | 41.2 |
465.tonto | 608 | 16.2 | 607 | 16.2 | 609 | 16.2 | 541 | 18.2 | 541 | 18.2 | 546 | 18.0 |
470.lbm | 357 | 38.5 | 358 | 38.4 | 358 | 38.4 | 357 | 38.5 | 358 | 38.4 | 358 | 38.4 |
481.wrf | 421 | 26.5 | 421 | 26.5 | 422 | 26.5 | 421 | 26.5 | 421 | 26.5 | 423 | 26.4 |
482.sphinx3 | 869 | 22.4 | 1072 | 18.2 | 889 | 21.9 | 888 | 22.0 | 944 | 20.7 | 892 | 21.8 |
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run
OMP_NUM_THREADS set to number of cores KMP_AFFINITY set to granularity=fine,scatter KMP_STACKSIZE set to 200M
icc |
icpc |
ifort |
icc ifort |
410.bwaves: | -DSPEC_CPU_LP64 |
416.gamess: | -DSPEC_CPU_LP64 |
433.milc: | -DSPEC_CPU_LP64 |
434.zeusmp: | -DSPEC_CPU_LP64 |
435.gromacs: | -DSPEC_CPU_LP64 -nofor_main |
436.cactusADM: | -DSPEC_CPU_LP64 -nofor_main |
437.leslie3d: | -DSPEC_CPU_LP64 |
444.namd: | -DSPEC_CPU_LP64 |
447.dealII: | -DSPEC_CPU_LP64 |
450.soplex: | -DSPEC_CPU_LP64 |
453.povray: | -DSPEC_CPU_LP64 |
454.calculix: | -DSPEC_CPU_LP64 -nofor_main |
459.GemsFDTD: | -DSPEC_CPU_LP64 |
465.tonto: | -DSPEC_CPU_LP64 |
470.lbm: | -DSPEC_CPU_LP64 |
481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX |
482.sphinx3: | -DSPEC_CPU_LP64 |
-xSSE4.2 -ipo -O3 -no-prec-div -static -parallel -opt-prefetch |
-xSSE4.2 -ipo -O3 -no-prec-div -static -parallel -opt-prefetch |
-xSSE4.2 -ipo -O3 -no-prec-div -static -parallel -opt-prefetch |
-xSSE4.2 -ipo -O3 -no-prec-div -static -parallel -opt-prefetch |
icc | |
482.sphinx3: | icc -m32 |
icpc | |
450.soplex: | icpc -m32 |
ifort |
icc ifort |
410.bwaves: | -DSPEC_CPU_LP64 |
416.gamess: | -DSPEC_CPU_LP64 |
433.milc: | -DSPEC_CPU_LP64 |
434.zeusmp: | -DSPEC_CPU_LP64 |
435.gromacs: | -DSPEC_CPU_LP64 -nofor_main |
436.cactusADM: | -DSPEC_CPU_LP64 -nofor_main |
437.leslie3d: | -DSPEC_CPU_LP64 |
444.namd: | -DSPEC_CPU_LP64 |
447.dealII: | -DSPEC_CPU_LP64 |
453.povray: | -DSPEC_CPU_LP64 |
454.calculix: | -DSPEC_CPU_LP64 -nofor_main |
459.GemsFDTD: | -DSPEC_CPU_LP64 |
465.tonto: | -DSPEC_CPU_LP64 |
470.lbm: | -DSPEC_CPU_LP64 |
481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX |
433.milc: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -fno-alias |
470.lbm: | basepeak = yes |
482.sphinx3: | -xSSE4.2 -ipo -O3 -no-prec-div -static -unroll2 |
444.namd: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -fno-alias -auto-ilp32 |
447.dealII: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll2 -ansi-alias -scalar-rep- -opt-prefetch |
450.soplex: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -opt-malloc-options=3 |
453.povray: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll4 -ansi-alias |
410.bwaves: | -xSSE4.2 -ipo -O3 -no-prec-div -static -opt-prefetch -parallel |
416.gamess: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll2 -Ob0 -ansi-alias -scalar-rep- |
434.zeusmp: | basepeak = yes |
437.leslie3d: | basepeak = yes |
459.GemsFDTD: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll2 -Ob0 -opt-prefetch -parallel |
465.tonto: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll4 -auto |
435.gromacs: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -opt-prefetch -auto-ilp32 |
436.cactusADM: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll2 -opt-prefetch -parallel -auto-ilp32 |
454.calculix: | -xSSE4.2 -ipo -O3 -no-prec-div -static -auto-ilp32 |
481.wrf: | -xSSE4.2 -ipo -O3 -no-prec-div -static -opt-prefetch -parallel -auto-ilp32 |
