| CPU2006 license: | 13 | Test date: | May-2009 |
|---|---|---|---|
| Test sponsor: | Intel Corporation | Hardware Availability: | Feb-2009 |
| Tested by: | Intel Corporation | Software Availability: | Nov-2008 |
| Hardware | |
|---|---|
| CPU Name: | AMD Phenom II X4 810 |
| CPU Characteristics: | |
| CPU MHz: | 2600 |
| FPU: | Integrated |
| CPU(s) enabled: | 4 cores, 1 chip, 4 cores/chip |
| CPU(s) orderable: | 1 chip |
| Primary Cache: | 64 KB I + 64 KB D on chip per core |
| Secondary Cache: | 512 KB I+D on chip per core |
| L3 Cache: | 4 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 4 GB (4x1GB DDR2-800 CL5) |
| Disk Subsystem: | Seagate 320 GB SATA, 7200RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Windows Vista Ultimate w/ SP1 (64-bit) |
| Compiler: | Intel C++ Compiler Professional 11.0 for IA32 Build 20080930 Package ID: w_cproc_p_11.0.054 Microsoft Visual Studio 2008 (for libraries) |
| Auto Parallel: | Yes |
| File System: | NTFS |
| System State: | Default |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32-bit |
| Other Software: | SmartHeap Library Version 8.1 from http://www.microquill.com/ |

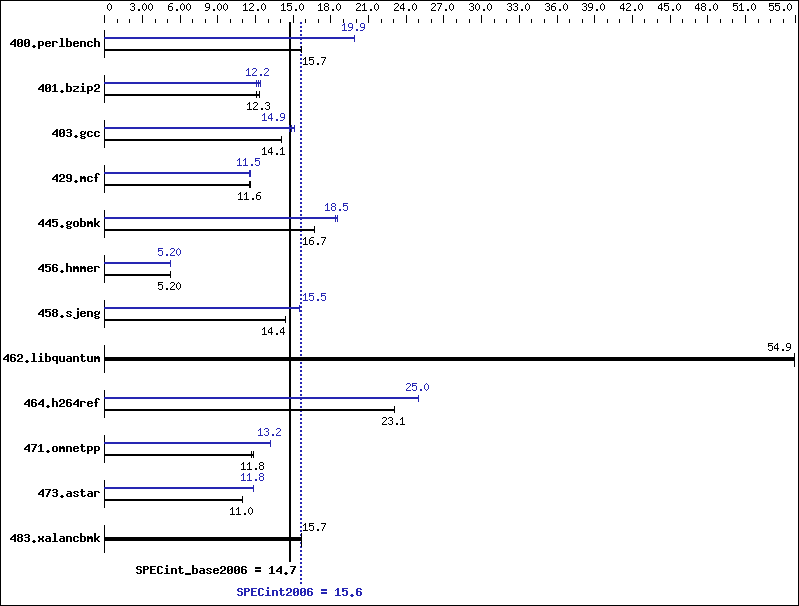

Results Table
| Benchmark | Base | Peak | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
| 400.perlbench | 621 | 15.7 | 622 | 15.7 | 621 | 15.7 | 491 | 19.9 | 492 | 19.9 | 491 | 19.9 |
| 401.bzip2 | 784 | 12.3 | 797 | 12.1 | 787 | 12.3 | 794 | 12.2 | 781 | 12.4 | 795 | 12.1 |
| 403.gcc | 572 | 14.1 | 570 | 14.1 | 569 | 14.1 | 542 | 14.9 | 547 | 14.7 | 534 | 15.1 |
| 429.mcf | 791 | 11.5 | 786 | 11.6 | 788 | 11.6 | 794 | 11.5 | 791 | 11.5 | 789 | 11.6 |
| 445.gobmk | 628 | 16.7 | 627 | 16.7 | 627 | 16.7 | 569 | 18.4 | 568 | 18.5 | 568 | 18.5 |
| 456.hmmer | 1798 | 5.20 | 1798 | 5.20 | 1793 | 5.20 | 1802 | 5.20 | 1799 | 5.20 | 1794 | 5.20 |
| 458.sjeng | 840 | 14.4 | 839 | 14.4 | 840 | 14.4 | 782 | 15.5 | 782 | 15.5 | 782 | 15.5 |
| 462.libquantum | 377 | 54.9 | 377 | 54.9 | 377 | 54.9 | 377 | 54.9 | 377 | 54.9 | 377 | 54.9 |
| 464.h264ref | 959 | 23.1 | 959 | 23.1 | 957 | 23.1 | 885 | 25.0 | 886 | 25.0 | 886 | 25.0 |
| 471.omnetpp | 529 | 11.8 | 534 | 11.7 | 532 | 11.8 | 472 | 13.2 | 475 | 13.2 | 472 | 13.2 |
| 473.astar | 636 | 11.0 | 637 | 11.0 | 637 | 11.0 | 595 | 11.8 | 595 | 11.8 | 594 | 11.8 |
| 483.xalancbmk | 439 | 15.7 | 440 | 15.7 | 439 | 15.7 | 439 | 15.7 | 440 | 15.7 | 439 | 15.7 |
General Notes
Tested systems can be used with Shin-G ATX case, Antec NeoPower 480W power supply Binaries were built on Windows Vista Ultimate (32-bit) OMP_NUM_THREADS set to number of logical processors as seen by the OS KMP_AFFINITY set to physical,0
Base Portability Flags
| 403.gcc: | -DSPEC_CPU_WIN32 |
| 464.h264ref: | -DSPEC_CPU_NO_INTTYPES -DWIN32 |
| 483.xalancbmk: | -Qoption,cpp,--no_wchar_t_keyword |
Base Optimization Flags
C benchmarks:
| /arch:SSE2 -Qipo -O3 -Qprec-div- -Qopt-prefetch -Qparallel -Qpar-runtime-control -Qvec-guard-write /F512000000 |
C++ benchmarks:
| /arch:SSE2 -Qipo -O3 -Qprec-div- -Qopt-prefetch -Qcxx-features /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
Peak Portability Flags
| 403.gcc: | -DSPEC_CPU_WIN32 |
| 464.h264ref: | -DSPEC_CPU_NO_INTTYPES -DWIN32 |
| 483.xalancbmk: | -Qoption,cpp,--no_wchar_t_keyword |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | /arch:SSE2(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qansi-alias -Qopt-prefetch /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
| 401.bzip2: | /arch:SSE2(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qopt-prefetch -Qansi-alias /F512000000 |
| 403.gcc: | /arch:SSE2(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- /F512000000 |
| 429.mcf: | /arch:SSE2 -Qipo -O3 -Qprec-div- -Qopt-prefetch /F512000000 |
| 445.gobmk: | /arch:SSE2(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O2 -Qprec-div- -Qansi-alias /F512000000 |
| 456.hmmer: | /arch:SSE2(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qunroll2 -Qansi-alias /F512000000 |
| 458.sjeng: | /arch:SSE2(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qunroll4 /F512000000 |
| 462.libquantum: | basepeak = yes |
| 464.h264ref: | Same as 456.hmmer |
C++ benchmarks:
| 471.omnetpp: | /arch:SSE2(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qansi-alias -Qopt-ra-region-strategy=block /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
| 473.astar: | /arch:SSE2(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qansi-alias -Qopt-ra-region-strategy=routine /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
| 483.xalancbmk: | basepeak = yes |
