SPEC® CFP2006 Result

Intel Corporation

Intel DQ45CB motherboard (Intel Pentium E5200)

SPECfp®2006 = 17.3

SPECfp_base2006 = 16.8

CPU2006 license:	13	Test date:	Apr-2009
Test sponsor:	Intel Corporation	Hardware Availability:	May-2009
Tested by:	Intel Corporation	Software Availability:	Nov-2008

Hardware
CPU Name:	Intel Pentium E5200
CPU Characteristics:
CPU MHz:	2500
FPU:	Integrated
CPU(s) enabled:	2 cores, 1 chip, 2 cores/chip
CPU(s) orderable:	1 chip
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	2 MB I+D on chip per chip
L3 Cache:	None
Other Cache:	None
Memory:	4 GB (4x1GB DDR2-800 CL5)
Disk Subsystem:	Seagate 320 GB SATA, 7200RPM
Other Hardware:	None

Software
Operating System:	Windows Vista Ultimate w/ SP1 (64-bit)
Compiler:	Intel C++ Compiler Professional 11.0 for IA32 Build 20080930 Package ID: w_cproc_p_11.0.054 Intel Visual Fortran Compiler Professional 11.0 for IA32 Build 20080930 Package ID: w_cprof_p_11.0.054 Microsoft Visual Studio 2008 (for libraries)
Auto Parallel:	Yes
File System:	NTFS
System State:	Default
Base Pointers:	32-bit
Peak Pointers:	32-bit
Other Software:	SmartHeap Library Version 8.1 from http://www.microquill.com/

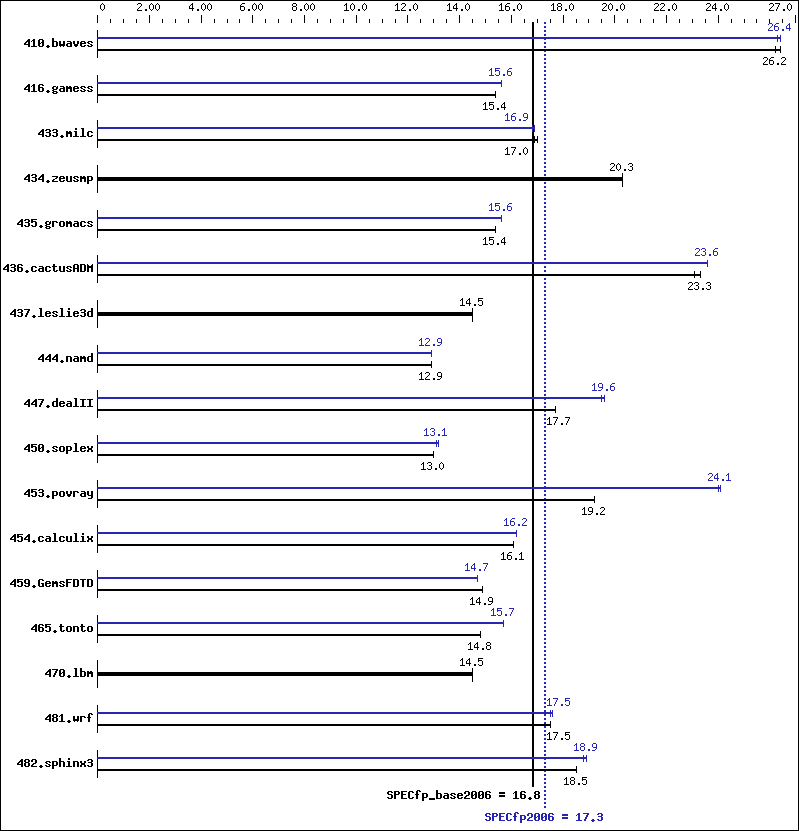

Results Table

Benchmark	Base						Peak
Benchmark	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves	519	26.2	515	26.4	519	26.2	517	26.3	514	26.4	515	26.4
416.gamess	1274	15.4	1275	15.4	1275	15.4	1255	15.6	1255	15.6	1255	15.6
433.milc	540	17.0	541	17.0	543	16.9	545	16.9	544	16.9	545	16.8
434.zeusmp	448	20.3	448	20.3	449	20.3	448	20.3	448	20.3	449	20.3
435.gromacs	465	15.4	465	15.4	465	15.4	458	15.6	458	15.6	458	15.6
436.cactusADM	518	23.1	513	23.3	514	23.3	507	23.6	507	23.6	506	23.6
437.leslie3d	648	14.5	647	14.5	647	14.5	648	14.5	647	14.5	647	14.5
444.namd	623	12.9	623	12.9	623	12.9	623	12.9	624	12.9	623	12.9
447.dealII	647	17.7	647	17.7	647	17.7	585	19.5	584	19.6	584	19.6
450.soplex	640	13.0	640	13.0	640	13.0	635	13.1	634	13.1	634	13.2
453.povray	278	19.2	277	19.2	277	19.2	221	24.0	221	24.1	221	24.1
454.calculix	513	16.1	512	16.1	513	16.1	508	16.2	508	16.2	508	16.2
459.GemsFDTD	711	14.9	710	14.9	710	14.9	721	14.7	720	14.7	720	14.7
465.tonto	667	14.8	667	14.8	667	14.8	628	15.7	628	15.7	628	15.7
470.lbm	947	14.5	947	14.5	947	14.5	947	14.5	947	14.5	947	14.5
481.wrf	637	17.5	638	17.5	638	17.5	638	17.5	637	17.5	636	17.6
482.sphinx3	1051	18.5	1051	18.5	1052	18.5	1034	18.9	1033	18.9	1034	18.8

General Notes

 Tested systems can be used with Shin-G ATX case,
 Antec Truepower Trio power supply TP3-650
 Binaries were built on Windows Vista Ultimate (32-bit)
 Binaries were built on Windows Vista Ultimate (32-bit)
 OMP_NUM_THREADS set to number of logical processors as seen by the OS
 KMP_AFFINITY set to physical,0

Base Compiler Invocation

C benchmarks:

icl -Qvc9 -Qc99

C++ benchmarks:

icl -Qvc9

Fortran benchmarks:

ifort

Benchmarks using both Fortran and C:

icl -Qvc9 -Qc99 ifort

Base Portability Flags

436.cactusADM:	-Qlowercase /assume:underscore
444.namd:	-TP
447.dealII:	-DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG
453.povray:	-DSPEC_CPU_WINDOWS_ICL
454.calculix:	-DSPEC_CPU_NOZMODIFIER -Qlowercase
481.wrf:	-DSPEC_CPU_WINDOWS_ICL

Peak Compiler Invocation

C benchmarks:

icl -Qvc9 -Qc99

C++ benchmarks:

icl -Qvc9

Fortran benchmarks:

ifort

Benchmarks using both Fortran and C:

icl -Qvc9 -Qc99 ifort

Peak Portability Flags

436.cactusADM:	-Qlowercase /assume:underscore
444.namd:	-TP
447.dealII:	-DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG
453.povray:	-DSPEC_CPU_WINDOWS_ICL
454.calculix:	-DSPEC_CPU_NOZMODIFIER -Qlowercase
481.wrf:	-DSPEC_CPU_WINDOWS_ICL

Peak Optimization Flags

C benchmarks:

433.milc:	-QxSSSE3(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Oa /F1000000000
470.lbm:	basepeak = yes
482.sphinx3:	-QxSSSE3 -Qipo -O3 -Qprec-div- -Qunroll2 /F1000000000

C++ benchmarks:

444.namd:	-QxSSSE3(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Oa /F1000000000 shlw32m.lib -link /FORCE:MULTIPLE
447.dealII:	-QxSSSE3(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qunroll2 -Qopt-prefetch -Qansi-alias -Qscalar-rep- /F1000000000 shlw32m.lib -link /FORCE:MULTIPLE
450.soplex:	-QxSSSE3(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- /F1000000000 shlw32m.lib -link /FORCE:MULTIPLE
453.povray:	-QxSSSE3(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qunroll4 -Qansi-alias /F1000000000 shlw32m.lib -link /FORCE:MULTIPLE

Fortran benchmarks:

410.bwaves:	-QxSSSE3 -Qipo -O3 -Qprec-div- -Qopt-prefetch -Qparallel /F1000000000
416.gamess:	-QxSSSE3(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qunroll2 -Ob0 -Qansi-alias -Qscalar-rep- /F1000000000
434.zeusmp:	basepeak = yes
437.leslie3d:	basepeak = yes
459.GemsFDTD:	-QxSSSE3(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qunroll2 -Ob0 -Qopt-prefetch -Qparallel /F1000000000
465.tonto:	-QxSSSE3(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qunroll4 -Qauto /F1000000000

Benchmarks using both Fortran and C:

435.gromacs:	-QxSSSE3(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qopt-prefetch /F1000000000
436.cactusADM:	-QxSSSE3(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qunroll2 -Qopt-prefetch -Qparallel /F1000000000
454.calculix:	-QxSSSE3 -Qipo -O3 -Qprec-div- /F1000000000
481.wrf:	-QxSSSE3 -Qipo -O3 -Qprec-div- -Qopt-prefetch -Qparallel /F1000000000

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic11.0-win32-revA.20090710.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Intel-ic11.0-win32-revA.20090710.xml.
