| CPU2006 license: | 9016 | Test date: | Apr-2009 |
|---|---|---|---|
| Test sponsor: | ASUSTeK Computer Inc. | Hardware Availability: | Mar-2009 |
| Tested by: | ASUSTeK Computer Inc. | Software Availability: | Feb-2009 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon X5570 |
| CPU Characteristics: | Intel Turbo Boost Technology up to 3.33 GHz |
| CPU MHz: | 2933 |
| FPU: | Integrated |
| CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip, 2 threads/core |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 8 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 24 GB (6 X 4 GB PC3-10600R, CL=9) |
| Disk Subsystem: | HITACHI HDT725050VLA360 500GB SATAII, 7200RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SUSE Linux Enterprise Server 10 (x86_64) SP2 with patch Kernel linux 20090119, Kernel 2.6.16.60-0.34-smp |
| Compiler: | Intel C++ Compiler Professional 11.0 for Linux Build 20090131 Package ID: l_cproc_p_11.0.080 |
| Auto Parallel: | No |
| File System: | ReiserFS |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V8.1 Binutils 2.18.50.0.7.20080502 |

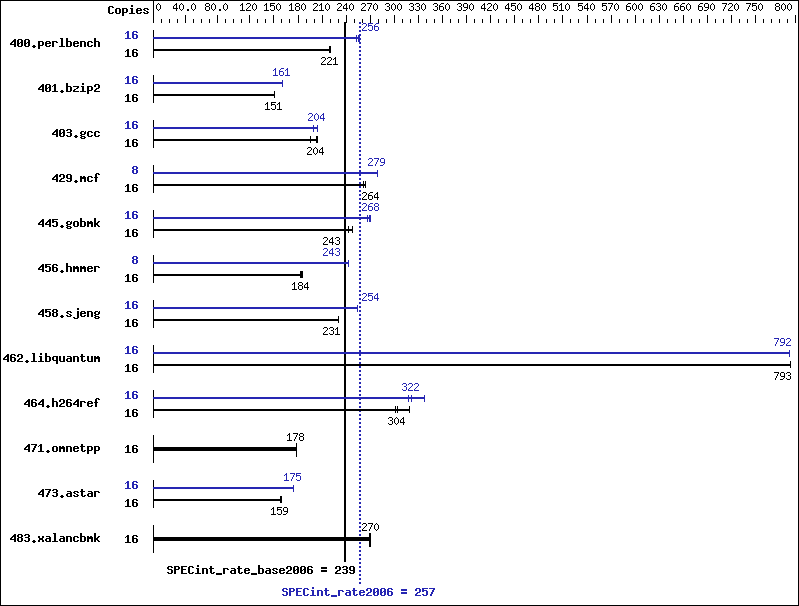

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 16 | 708 | 221 | 713 | 219 | 709 | 221 | 16 | 608 | 257 | 619 | 253 | 611 | 256 |
| 401.bzip2 | 16 | 1027 | 150 | 1020 | 151 | 1021 | 151 | 16 | 958 | 161 | 960 | 161 | 958 | 161 |
| 403.gcc | 16 | 630 | 204 | 658 | 196 | 633 | 204 | 16 | 631 | 204 | 631 | 204 | 646 | 199 |
| 429.mcf | 16 | 551 | 265 | 554 | 264 | 558 | 261 | 8 | 262 | 279 | 262 | 279 | 262 | 279 |
| 445.gobmk | 16 | 677 | 248 | 691 | 243 | 691 | 243 | 16 | 621 | 270 | 628 | 267 | 625 | 268 |
| 456.hmmer | 16 | 804 | 186 | 813 | 184 | 811 | 184 | 8 | 307 | 243 | 307 | 243 | 307 | 243 |
| 458.sjeng | 16 | 841 | 230 | 839 | 231 | 840 | 231 | 16 | 763 | 254 | 763 | 254 | 764 | 254 |
| 462.libquantum | 16 | 418 | 793 | 418 | 793 | 418 | 793 | 16 | 418 | 792 | 419 | 792 | 418 | 792 |
| 464.h264ref | 16 | 1165 | 304 | 1175 | 301 | 1109 | 319 | 16 | 1048 | 338 | 1101 | 322 | 1116 | 317 |
| 471.omnetpp | 16 | 563 | 178 | 562 | 178 | 562 | 178 | 16 | 563 | 178 | 562 | 178 | 562 | 178 |
| 473.astar | 16 | 708 | 159 | 706 | 159 | 708 | 159 | 16 | 643 | 175 | 643 | 175 | 643 | 175 |
| 483.xalancbmk | 16 | 409 | 270 | 409 | 270 | 410 | 270 | 16 | 409 | 270 | 409 | 270 | 410 | 270 |
Submit Notes
The config file option 'submit' was used. numactl was used to bind copies to the cores
Operating System Notes
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run
Component Notes
Tested system case compliance with Intel EEB 3.61 spec SSI Server Power Supply 650W or higher System was configured with ASPEED AST2050 VGA (on board VGA)
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -static -inline-calloc -opt-malloc-options=3 -opt-prefetch |
C++ benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L/spec/cpu2006.1.1/lib -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc | |
| 401.bzip2: | /opt/intel/Compiler/11.0/080/bin/intel64/icc |
| 456.hmmer: | /opt/intel/Compiler/11.0/080/bin/intel64/icc |
| 458.sjeng: | /opt/intel/Compiler/11.0/080/bin/intel64/icc |
C++ benchmarks (except as noted below):
| icpc | |
| 473.astar: | /opt/intel/Compiler/11.0/080/bin/intel64/icpc |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 473.astar: | -DSPEC_CPU_LP64 |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
C++ benchmarks:
| 471.omnetpp: | basepeak = yes |
| 473.astar: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=routine -auto-ilp32 -Wl,-z,muldefs -L/spec/cpu2006.1.1/lib -lsmartheap64 |
| 483.xalancbmk: | basepeak = yes |
