| CPU2006 license: | 19 | Test date: | Apr-2009 |
|---|---|---|---|
| Test sponsor: | Fujitsu | Hardware Availability: | Apr-2009 |
| Tested by: | Fujitsu | Software Availability: | Feb-2009 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon W3505 |
| CPU Characteristics: | |
| CPU MHz: | 2533 |
| FPU: | Integrated |
| CPU(s) enabled: | 2 cores, 1 chip, 2 cores/chip |
| CPU(s) orderable: | 1 chip |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 4 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 12 GB (6x2 GB PC3 10600E, 2 rank, ECC, running at 1066 MHz) |
| Disk Subsystem: | 1 x SATA II, 400 GB, 7200 rpm |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SuSe Linux Enterprise Server 10 (x86_64) SP2, kernel 2.6.16.60-0.21-smp |
| Compiler: | Intel C++ Compiler 11.0 for Linux Build 20090131 Package ID: l_cproc_p_11.0.080 |
| Auto Parallel: | Yes |
| File System: | ext3 |
| System State: | Multi-User Run Level 3 |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V8.1 Binutils 2.18.50.0.7.20080502 |

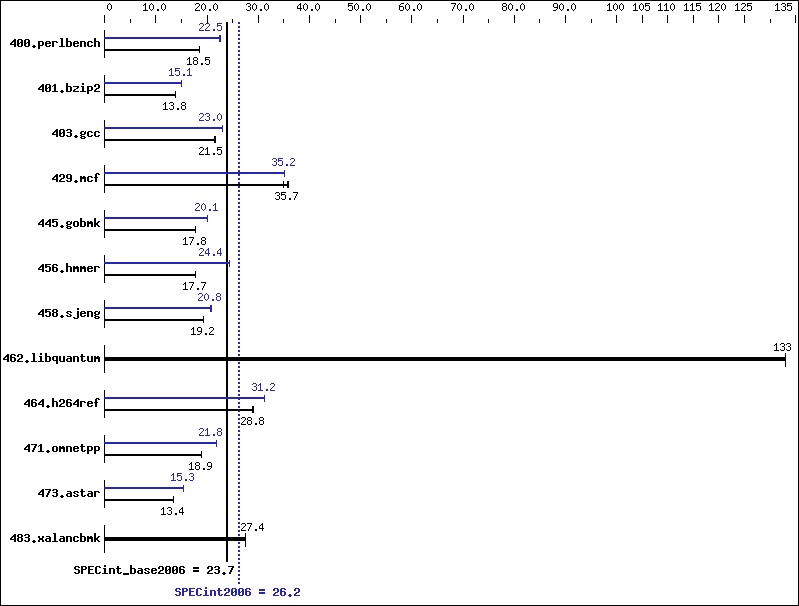

Results Table
| Benchmark | Base | Peak | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
| 400.perlbench | 528 | 18.5 | 528 | 18.5 | 527 | 18.5 | 431 | 22.7 | 435 | 22.4 | 435 | 22.5 |
| 401.bzip2 | 700 | 13.8 | 700 | 13.8 | 702 | 13.8 | 641 | 15.0 | 641 | 15.1 | 640 | 15.1 |
| 403.gcc | 373 | 21.6 | 374 | 21.5 | 374 | 21.5 | 350 | 23.0 | 350 | 23.0 | 350 | 23.0 |
| 429.mcf | 261 | 35.0 | 255 | 35.7 | 254 | 35.9 | 259 | 35.2 | 259 | 35.2 | 260 | 35.0 |
| 445.gobmk | 589 | 17.8 | 589 | 17.8 | 589 | 17.8 | 522 | 20.1 | 522 | 20.1 | 522 | 20.1 |
| 456.hmmer | 527 | 17.7 | 528 | 17.7 | 527 | 17.7 | 383 | 24.4 | 383 | 24.3 | 383 | 24.4 |
| 458.sjeng | 630 | 19.2 | 629 | 19.2 | 629 | 19.3 | 584 | 20.7 | 583 | 20.8 | 583 | 20.8 |
| 462.libquantum | 156 | 133 | 156 | 133 | 156 | 133 | 156 | 133 | 156 | 133 | 156 | 133 |
| 464.h264ref | 767 | 28.8 | 768 | 28.8 | 761 | 29.1 | 710 | 31.2 | 711 | 31.1 | 710 | 31.2 |
| 471.omnetpp | 330 | 18.9 | 331 | 18.9 | 330 | 18.9 | 287 | 21.8 | 287 | 21.8 | 287 | 21.8 |
| 473.astar | 524 | 13.4 | 525 | 13.4 | 524 | 13.4 | 459 | 15.3 | 457 | 15.3 | 458 | 15.3 |
| 483.xalancbmk | 251 | 27.4 | 251 | 27.4 | 251 | 27.5 | 251 | 27.4 | 251 | 27.4 | 251 | 27.5 |
Operating System Notes
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run
Platform Notes
BIOS configuration: Memory speed set to "Max Performance" (Switch in "Advanced Memory Options")
General Notes
OMP_NUM_THREADS set to number of cores KMP_AFFINITY set to granularity=fine,scatter For information about Fujitsu please visit: http://www.fujitsu.com
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -static -parallel -par-runtime-control -opt-prefetch |
C++ benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L/spec/cpu2006.1.1/lib -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc | |
| 401.bzip2: | /opt/intel/Compiler/11.0/080/bin/intel64/icc |
| 456.hmmer: | /opt/intel/Compiler/11.0/080/bin/intel64/icc |
| 458.sjeng: | /opt/intel/Compiler/11.0/080/bin/intel64/icc |
C++ benchmarks (except as noted below):
| icpc | |
| 473.astar: | /opt/intel/Compiler/11.0/080/bin/intel64/icpc |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 473.astar: | -DSPEC_CPU_LP64 |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -ansi-alias -opt-prefetch |
| 401.bzip2: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -auto-ilp32 -opt-prefetch -ansi-alias |
| 403.gcc: | -xSSE4.2 -ipo -O3 -no-prec-div -static -inline-calloc -opt-malloc-options=3 |
| 429.mcf: | -xSSE4.2 -ipo -O3 -no-prec-div -static -opt-prefetch |
| 445.gobmk: | -xSSE4.2(pass 2) -prof-gen(pass 1) -prof-use(pass 2) -O2 -ipo -no-prec-div -ansi-alias |
| 456.hmmer: | -xSSE4.2 -ipo -O3 -no-prec-div -static -unroll2 -ansi-alias -auto-ilp32 |
| 458.sjeng: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll4 -auto-ilp32 |
| 462.libquantum: | basepeak = yes |
| 464.h264ref: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll2 -ansi-alias |
C++ benchmarks:
| 471.omnetpp: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/spec/cpu2006.1.1/lib -lsmartheap |
| 473.astar: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=routine -auto-ilp32 -Wl,-z,muldefs -L/spec/cpu2006.1.1/lib -lsmartheap64 |
| 483.xalancbmk: | basepeak = yes |
