| CPU2006 license: | 19 | Test date: | Apr-2009 |
|---|---|---|---|
| Test sponsor: | Fujitsu | Hardware Availability: | Apr-2009 |
| Tested by: | Fujitsu | Software Availability: | Feb-2009 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon W3540 |
| CPU Characteristics: | Intel Turbo Boost Technology up to 3.2 GHz |
| CPU MHz: | 2933 |
| FPU: | Integrated |
| CPU(s) enabled: | 4 cores, 1 chip, 4 cores/chip |
| CPU(s) orderable: | 1 chip |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 8 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 12 GB (6 x 2 GB PC3-10600E, 2 rank, ECC, running at 1066 MHz) |
| Disk Subsystem: | 1 x SATA II, 400 GB, 7200 rpm |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SuSe Linux Enterprise Server 10 (x86_64) SP2, kernel 2.6.16.60-0.21-smp |
| Compiler: | Intel C++ Compiler Professional 11.0 for Linux Build 20090131 Package ID: l_cproc_p_11.0.080 |
| Auto Parallel: | Yes |
| File System: | ext3 |
| System State: | Multi-User Run Level 3 |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V8.1 Binutils 2.18.50.0.7.20080502 |

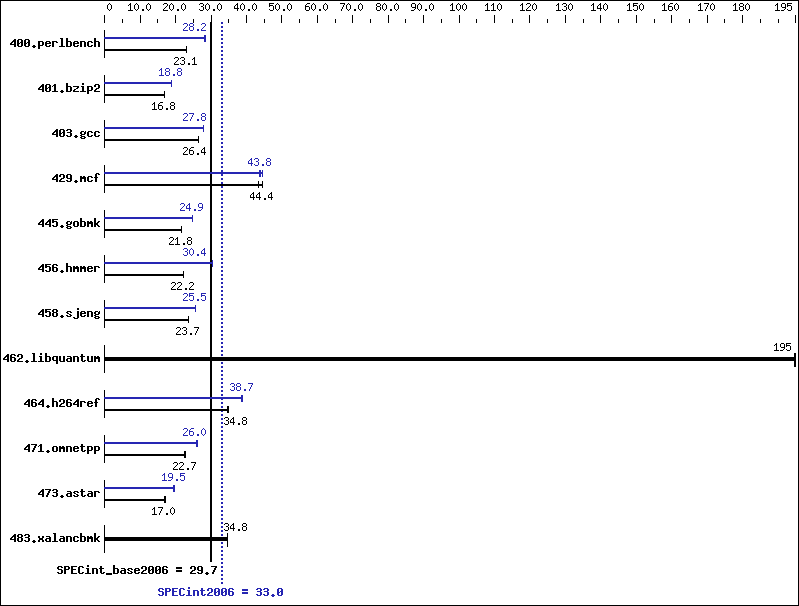

Results Table
| Benchmark | Base | Peak | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
| 400.perlbench | 424 | 23.1 | 425 | 23.0 | 423 | 23.1 | 346 | 28.2 | 346 | 28.2 | 345 | 28.3 |
| 401.bzip2 | 573 | 16.8 | 573 | 16.8 | 572 | 16.9 | 512 | 18.8 | 516 | 18.7 | 515 | 18.8 |
| 403.gcc | 304 | 26.4 | 305 | 26.4 | 304 | 26.4 | 289 | 27.9 | 290 | 27.8 | 289 | 27.8 |
| 429.mcf | 211 | 43.3 | 205 | 44.6 | 205 | 44.4 | 205 | 44.6 | 209 | 43.6 | 208 | 43.8 |
| 445.gobmk | 481 | 21.8 | 482 | 21.8 | 481 | 21.8 | 422 | 24.9 | 422 | 24.9 | 422 | 24.8 |
| 456.hmmer | 421 | 22.2 | 421 | 22.1 | 421 | 22.2 | 307 | 30.4 | 307 | 30.4 | 307 | 30.4 |
| 458.sjeng | 511 | 23.7 | 510 | 23.7 | 509 | 23.8 | 474 | 25.5 | 473 | 25.6 | 474 | 25.5 |
| 462.libquantum | 106 | 195 | 106 | 195 | 106 | 195 | 106 | 195 | 106 | 195 | 106 | 195 |
| 464.h264ref | 636 | 34.8 | 636 | 34.8 | 635 | 34.8 | 571 | 38.7 | 571 | 38.7 | 572 | 38.7 |
| 471.omnetpp | 275 | 22.7 | 276 | 22.6 | 275 | 22.7 | 240 | 26.0 | 240 | 26.1 | 240 | 26.0 |
| 473.astar | 418 | 16.8 | 414 | 17.0 | 412 | 17.1 | 359 | 19.5 | 360 | 19.5 | 359 | 19.6 |
| 483.xalancbmk | 198 | 34.8 | 198 | 34.8 | 200 | 34.5 | 198 | 34.8 | 198 | 34.8 | 200 | 34.5 |
Operating System Notes
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run
Platform Notes
BIOS configuration: Hyper-Threading Technology = Disabled Memory speed set to "Max Performance" (Switch in "Advanced Memory Options")
General Notes
OMP_NUM_THREADS set to number of cores KMP_AFFINITY set to granularity=fine,scatter For information about Fujitsu please visit: http://www.fujitsu.com
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -static -parallel -par-runtime-control -opt-prefetch |
C++ benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L/spec/cpu2006.1.1/lib -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc | |
| 401.bzip2: | /opt/intel/Compiler/11.0/080/bin/intel64/icc |
| 456.hmmer: | /opt/intel/Compiler/11.0/080/bin/intel64/icc |
| 458.sjeng: | /opt/intel/Compiler/11.0/080/bin/intel64/icc |
C++ benchmarks (except as noted below):
| icpc | |
| 473.astar: | /opt/intel/Compiler/11.0/080/bin/intel64/icpc |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 473.astar: | -DSPEC_CPU_LP64 |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -ansi-alias -opt-prefetch |
| 401.bzip2: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -auto-ilp32 -opt-prefetch -ansi-alias |
| 403.gcc: | -xSSE4.2 -ipo -O3 -no-prec-div -static -inline-calloc -opt-malloc-options=3 |
| 429.mcf: | -xSSE4.2 -ipo -O3 -no-prec-div -static -opt-prefetch |
| 445.gobmk: | -xSSE4.2(pass 2) -prof-gen(pass 1) -prof-use(pass 2) -O2 -ipo -no-prec-div -ansi-alias |
| 456.hmmer: | -xSSE4.2 -ipo -O3 -no-prec-div -static -unroll2 -ansi-alias -auto-ilp32 |
| 458.sjeng: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll4 -auto-ilp32 |
| 462.libquantum: | basepeak = yes |
| 464.h264ref: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll2 -ansi-alias |
C++ benchmarks:
| 471.omnetpp: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/spec/cpu2006.1.1/lib -lsmartheap |
| 473.astar: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=routine -auto-ilp32 -Wl,-z,muldefs -L/spec/cpu2006.1.1/lib -lsmartheap64 |
| 483.xalancbmk: | basepeak = yes |
