SPEC® CINT2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Sun Microsystems

Sun Ultra 27 (Intel Xeon W3570 3.2GHz)

SPECint®2006 = 36.8

CPU2006 license: 6 Test date: Apr-2009
Test sponsor: Sun Microsystems Hardware Availability: Apr-2009
Tested by: Sun Microsystems Software Availability: Jun-2009

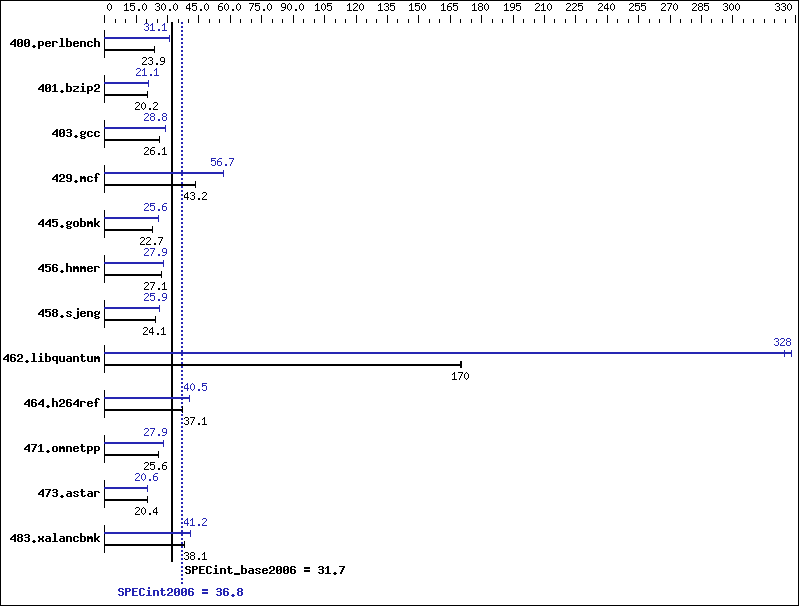

Benchmark results graph
Hardware
CPU Name: Intel Xeon W3570
CPU Characteristics: Intel Turbo Boost Technology up to 3.46 GHz
CPU MHz: 3200
FPU: Integrated
CPU(s) enabled: 4 cores, 1 chip, 4 cores/chip, 2 threads/core
CPU(s) orderable: 1 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
L3 Cache: 8 MB I+D on chip per chip
Other Cache: None
Memory: 6 GB (3 x 2 GB DDR3-1333)
Disk Subsystem: 500 GB, SATA, 7200 RPM
Other Hardware: None
Software
Operating System: OpenSolaris 2008.11
Compiler: Sun Studio 12 Update 1
(internal build 39.0)
Auto Parallel: Yes
File System: zfs
System State: Default
Base Pointers: 64-bit
Peak Pointers: 32/64-bit
Other Software: MicroQuill SmartHeap Library 9.01 for x64

Results Table

Benchmark Base Peak
Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 408 23.9 408 23.9 408 23.9 315   31.1 315   31.0 315   31.1
401.bzip2 478 20.2 478 20.2 477 20.2 457   21.1 457   21.1 458   21.1
403.gcc 308 26.1 308 26.1 308 26.1 279   28.8 280   28.8 279   28.8
429.mcf 211 43.2 211 43.2 211 43.2 161   56.7 161   56.7 161   56.7
445.gobmk 463 22.7 463 22.7 463 22.6 409   25.6 409   25.6 410   25.6
456.hmmer 344 27.1 344 27.1 343 27.2 335   27.9 334   28.0 335   27.9
458.sjeng 502 24.1 502 24.1 500 24.2 466   25.9 467   25.9 467   25.9
462.libquantum 122 170   122 170   122 170   63.2 328   63.9 324   63.1 328
464.h264ref 595 37.2 596 37.1 596 37.1 545   40.6 546   40.5 546   40.5
471.omnetpp 244 25.6 244 25.7 244 25.6 224   28.0 224   27.9 224   27.9
473.astar 345 20.4 345 20.4 345 20.4 341   20.6 341   20.6 340   20.6
483.xalancbmk 181 38.0 181 38.1 181 38.1 168   41.2 168   41.2 168   41.2

Operating System Notes

 ulimit -s 131072  (shell): increases stack
 /etc/system parameters
    tune_t_fsflushr=10
    autoup=900
    set lpg_alloc_prefer=1

Platform Notes

   Default BIOS settings used except:
   Intel VT-d: Disabled.  VT-d, if enabled, supports
   remapping of I/O DMA transfers for virtualization.

General Notes

Environment variables set by runspec before the start of the run:
OMP_NUM_THREADS = "4"
SUNW_MP_PROCBIND = "true"
SUNW_MP_THR_IDLE = "SPIN"

Base Compiler Invocation

C benchmarks:

 /data1/SUNWspro.b39/SUNWspro/bin/cc

C++ benchmarks:

 /data1/SUNWspro.b39/SUNWspro/bin/CC

Base Portability Flags

400.perlbench:  -DSPEC_CPU_LP64   -DSPEC_CPU_SOLARIS_X64
401.bzip2:  -DSPEC_CPU_LP64
403.gcc:  -DSPEC_CPU_LP64   -DSPEC_CPU_SOLARIS
429.mcf:  -DSPEC_CPU_LP64
445.gobmk:  -DSPEC_CPU_LP64
456.hmmer:  -DSPEC_CPU_LP64
458.sjeng:  -DSPEC_CPU_LP64
462.libquantum:  -DSPEC_CPU_LP64   -DSPEC_CPU_SOLARIS
464.h264ref:  -DSPEC_CPU_LP64
471.omnetpp:  -DSPEC_CPU_LP64
473.astar:  -DSPEC_CPU_LP64
483.xalancbmk:  -DSPEC_CPU_LP64   -DSPEC_CPU_SOLARIS

Base Optimization Flags

C benchmarks:

 -fast   -xipo=2   -m64   -xpagesize=2M   -xprefetch   -xalias_level=std

C++ benchmarks:

 -fast   -xipo=2   -m64   -xpagesize=2M   -xvector=simd   -xprefetch=no%auto   -xalias_level=compatible   -L/data1/SmartHeap_9/lib -R/data1/SmartHeap_9/lib -lsmartheap64   -library=stlport4

Base Other Flags

C benchmarks:

 -V   -#   -xjobs=16

C++ benchmarks:

 -verbose=diags,version   -xjobs=16

Peak Compiler Invocation

C benchmarks:

 /data1/SUNWspro.b39/SUNWspro/bin/cc

C++ benchmarks:

 /data1/SUNWspro.b39/SUNWspro/bin/CC

Peak Portability Flags

400.perlbench:  -DSPEC_CPU_SOLARIS_IA32
403.gcc:  -DSPEC_CPU_LP64   -DSPEC_CPU_SOLARIS
462.libquantum:  -DSPEC_CPU_SOLARIS
483.xalancbmk:  -DSPEC_CPU_SOLARIS

Peak Optimization Flags

C benchmarks:

400.perlbench:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -xpagesize=2M   -xvector=simd   -xalias_level=std   -xprefetch=no%auto   -lbsdmalloc   -lumem
401.bzip2:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -m64   -xpagesize=2M   -xalias_level=strong   -xprefetch=no%auto   -lumem
403.gcc:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -xpagesize=2M   -xalias_level=std   -m64   -xprefetch=no%auto
429.mcf:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -xalias_level=strict   -xprefetch=no%auto   -lbsdmalloc
445.gobmk:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -m64   -xpagesize=2M   -xrestrict   -xalias_level=strong   -xdepend   -xautopar   -lmvec
456.hmmer:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -m64
458.sjeng:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -m64   -xpagesize=2M   -xvector=simd   -xrestrict   -xalias_level=std   -xprefetch=no%auto
462.libquantum:  -fast   -xipo=2   -m64   -xpagesize=2M   -xautopar   -xreduction
464.h264ref:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -m64   -xpagesize=2M   -xalias_level=strong   -xautopar

C++ benchmarks:

471.omnetpp:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -xpagesize=2M   -L/data1/SmartHeap_9/lib -R/data1/SmartHeap_9/lib -lsmartheap   -library=stlport4
473.astar:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -m64   -xpagesize=2M   -L/data1/SmartHeap_9/lib -R/data1/SmartHeap_9/lib -lsmartheap_mt64   -xalias_level=compatible   -library=stlport4   -xautopar
483.xalancbmk:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -m64   -xpagesize=2M   -xunroll=12   -L/data1/SmartHeap_9/lib -R/data1/SmartHeap_9/lib -lsmartheap64   -library=stlport4

Peak Other Flags

C benchmarks:

 -V   -#   -xjobs=16

C++ benchmarks:

 -verbose=diags,version   -xjobs=16

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Sun-OpenSolaris-Studio-x86_64.20090710.00.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Sun-OpenSolaris-Studio-x86_64.20090710.00.xml.
