SPEC® CINT2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

NEC Corporation

Express5800/R140a-4
(Intel Xeon E7430)

CPU2006 license: 9006 Test date: Feb-2009
Test sponsor: NEC Corporation Hardware Availability: Nov-2008
Tested by: Bull SAS Software Availability: Nov-2008

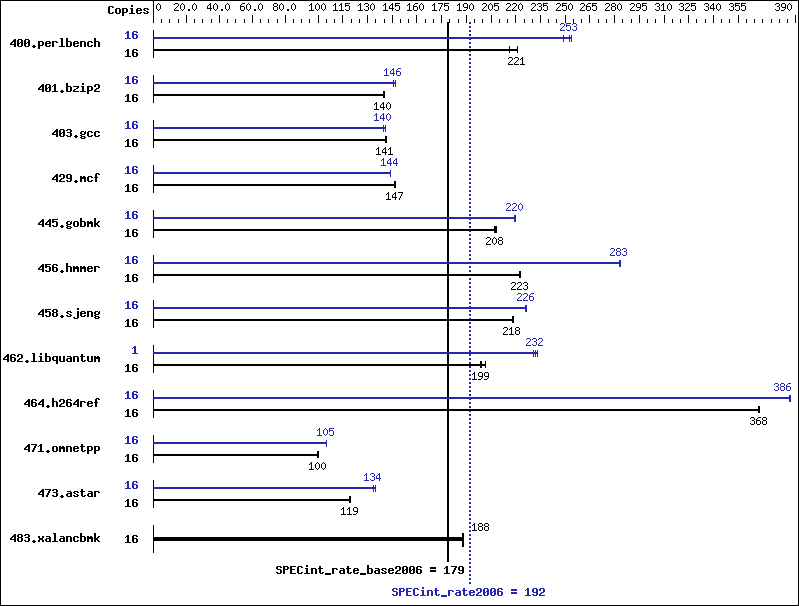

Benchmark results graph
Hardware
CPU Name: Intel Xeon E7430
CPU Characteristics: 1066 MHz system bus
CPU MHz: 2133
FPU: Integrated
CPU(s) enabled: 16 cores, 4 chips, 4 cores/chip
CPU(s) orderable: 1,2,3,4 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 6 MB I+D on chip per chip, 3 MB shared / 2 cores
L3 Cache: 12 MB I+D on chip per chip
Other Cache: None
Memory: 32 GB (16 x 2GB DDR2-667 FBDIMM)
Disk Subsystem: 1x146 GB SAS, 10000 RPM
Other Hardware: None
Software
Operating System: SUSE Linux Enterprise Server 10 (x86_64) SP2,
Kernel 2.6.16.60-0.21-smp
Compiler: Intel C++ Compiler 11.0 for Linux
Build 20080730 Package ID: l_cproc_b_11.0.042
Auto Parallel: Yes
File System: ReiserFS
System State: Run level 3 (multi-user)
Base Pointers: 32-bit
Peak Pointers: 32/64-bit
Other Software: Microquill SmartHeap V8.1
Binutils 2.18.50.0.7.20080502

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 16 707 221 723 216 708 221   16 619   253 628   249 616   254
401.bzip2 16 1099 141 1103 140 1104 140   16 1059   146 1052   147 1060   146
403.gcc 16 914 141 915 141 912 141   16 916   141 921   140 923   140
429.mcf 16 992 147 995 147 996 147   16 1014   144 1013   144 1015   144
445.gobmk 16 808 208 806 208 810 207   16 765   219 764   220 763   220
456.hmmer 16 670 223 671 223 670 223   16 527   283 528   283 526   284
458.sjeng 16 888 218 886 219 888 218   16 856   226 855   226 855   226
462.libquantum 16 1647 201 1662 199 1670 198   1 89.4 232 89.7 231 88.9 233
464.h264ref 16 964 367 962 368 961 368   16 916   386 915   387 917   386
471.omnetpp 16 996 100 998 100 1002 99.8 16 951   105 952   105 953   105
473.astar 16 941 119 940 120 941 119   16 835   135 841   134 842   133
483.xalancbmk 16 587 188 587 188 588 188   16 587   188 587   188 588   188

Submit Notes

The config file option 'submit' was used.
 taskset was used to bind processes to cores except
 for 462.libquantum peak

Operating System Notes

 'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run
 OMP_NUM_THREADS set to number of cores
 KMP_AFFINITY set to physical,0
 KMP_STACKSIZE set to 64M

Platform Notes

 BIOS Settings:
 Adjacent Cache Line Prefetch = Disabled
 Hardware Prefetcher = Disabled

General Notes

 The NEC Express5800/R140a-4(Intel Xeon E7430) and
 the Bull NovaScale R480 E1(Intel Xeon E7430, 2.13 GHz) models are electronically equivalent.
 The results have been measured on a Bull NovaScale R480 E1(Intel Xeon E7430, 2.13 GHz) model.

Base Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

 icpc

Base Portability Flags

400.perlbench:  -DSPEC_CPU_LINUX_IA32
462.libquantum:  -DSPEC_CPU_LINUX
483.xalancbmk:  -DSPEC_CPU_LINUX

Base Optimization Flags

C benchmarks:

 -xSSE4.1   -ipo   -O3   -no-prec-div   -static   -inline-calloc   -opt-malloc-options=3   -opt-prefetch

C++ benchmarks:

 -xSSE4.1   -ipo   -O3   -no-prec-div   -opt-prefetch   -Wl,-z,muldefs   -L/spec/cpu2006.1.1/lib -lsmartheap

Base Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

Peak Compiler Invocation

C benchmarks (except as noted below):

 icc
401.bzip2:  /opt/intel/Compiler/11.0/042/bin/intel64/icc   -L/opt/intel/Compiler/11.0/042/ipp/em64t/lib   -I/opt/intel/Compiler/11.0/042/ipp/em64t/include
456.hmmer:  /opt/intel/Compiler/11.0/042/bin/intel64/icc   -L/opt/intel/Compiler/11.0/042/ipp/em64t/lib   -I/opt/intel/Compiler/11.0/042/ipp/em64t/include

C++ benchmarks:

 icpc

Peak Portability Flags

400.perlbench:  -DSPEC_CPU_LINUX_IA32
401.bzip2:  -DSPEC_CPU_LP64
456.hmmer:  -DSPEC_CPU_LP64
462.libquantum:  -DSPEC_CPU_LINUX
483.xalancbmk:  -DSPEC_CPU_LINUX

Peak Optimization Flags

C benchmarks:

400.perlbench:  -prof-gen(pass 1)   -prof-use(pass 2)   -xSSE4.1   -ipo   -O3   -no-prec-div   -static   -ansi-alias   -opt-prefetch
401.bzip2:  -prof-gen(pass 1)   -prof-use(pass 2)   -xSSE4.1   -ipo   -O3   -no-prec-div   -static   -opt-prefetch   -ansi-alias
403.gcc:  -xSSE4.1   -ipo   -O3   -no-prec-div   -static   -inline-calloc   -opt-malloc-options=3
429.mcf:  -prof-gen(pass 1)   -prof-use(pass 2)   -xSSE4.1   -ipo   -O3   -no-prec-div   -static   -opt-prefetch
445.gobmk:  -prof-gen(pass 1)   -prof-use(pass 2)   -xSSE4.1   -O2   -ipo   -no-prec-div   -ansi-alias
456.hmmer:  -xSSE4.1   -ipo   -O3   -no-prec-div   -static   -unroll2   -ansi-alias
458.sjeng:  -prof-gen(pass 1)   -prof-use(pass 2)   -xSSE4.1   -ipo   -O3   -no-prec-div   -static   -unroll4
462.libquantum:  -xSSE4.1   -ipo   -O3   -no-prec-div   -static   -opt-malloc-options=3   -parallel   -par-runtime-control   -opt-prefetch
464.h264ref:  -prof-gen(pass 1)   -prof-use(pass 2)   -xSSE4.1   -ipo   -O3   -no-prec-div   -static   -unroll2   -ansi-alias

C++ benchmarks:

471.omnetpp:  -prof-gen(pass 1)   -prof-use(pass 2)   -xSSE4.1   -ipo   -O3   -no-prec-div   -ansi-alias   -opt-ra-region-strategy=block   -Wl,-z,muldefs   -L/spec/cpu2006.1.1/lib -lsmartheap
473.astar:  -prof-gen(pass 1)   -prof-use(pass 2)   -xSSE4.1   -ipo   -O3   -no-prec-div   -ansi-alias   -opt-ra-region-strategy=routine   -Wl,-z,muldefs   -L/spec/cpu2006.1.1/lib -lsmartheap
483.xalancbmk:  basepeak = yes

Peak Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

The flags files that were used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic11.0-int-linux64-revA.20090710.00.html,
http://www.spec.org/cpu2006/flags/Intel-Linux64-Platform.html.

You can also download the XML flags sources by saving the following links:
http://www.spec.org/cpu2006/flags/Intel-ic11.0-int-linux64-revA.20090710.00.xml,
http://www.spec.org/cpu2006/flags/Intel-Linux64-Platform.xml.
